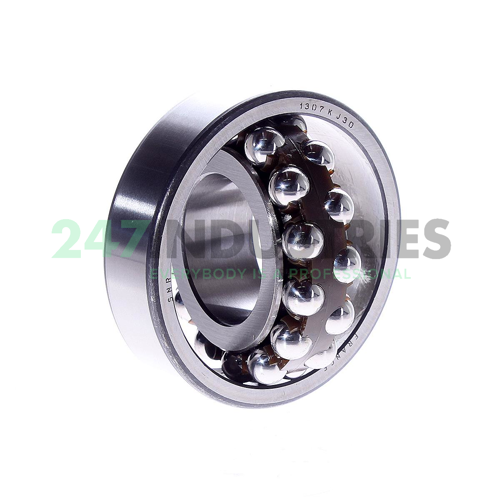

1307K G15 J30 SNR

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 80
3. Width (B) MM 21
4. Inner (d) Inch 1.378
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.8268

Suffix description

1. K Tapered Bore, Taper 1:12
2. G15 Injection Moulded Cage Of Glass Fibre Reinforced Polyamide 6,6, Rolling Element Centered
3. J30 Internal Clearance Larger Than Normal

Technical details

1. Availability 14 pcs
2. Brand SNR
3. Item number 1307K G15 J30 SNR
4. Also known as 1307EKTN9/C3
   1307-K-TVH-C3

5. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.502

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
