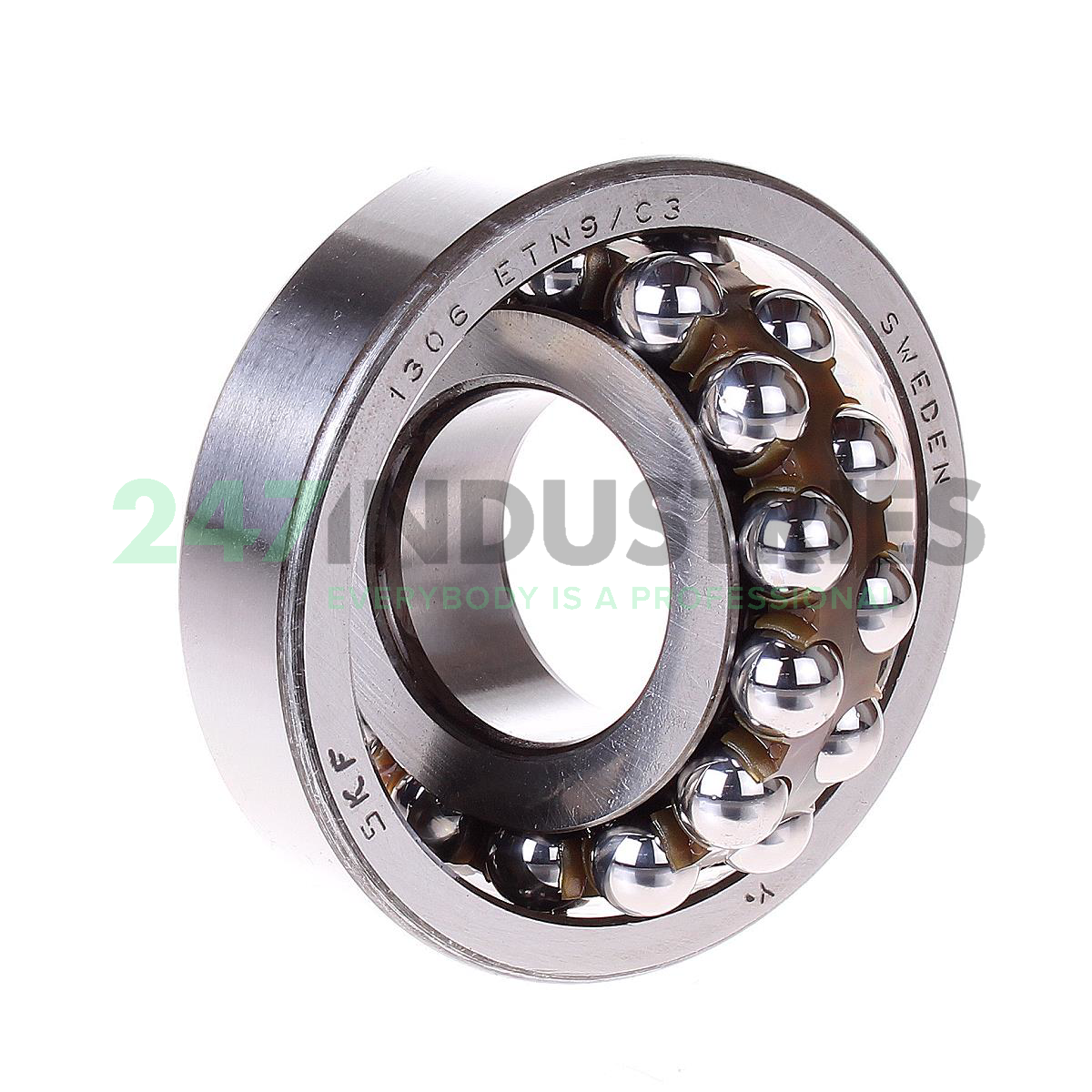

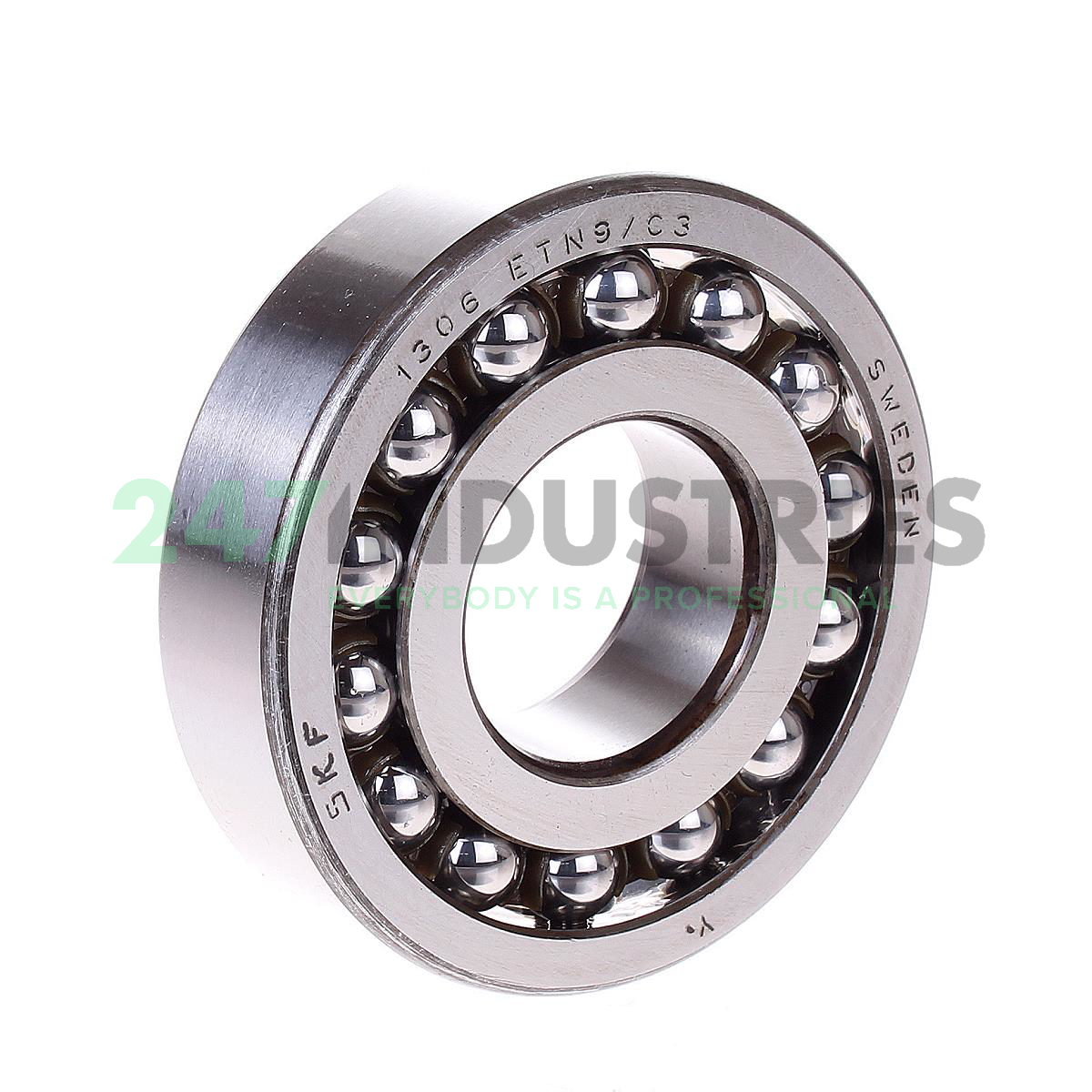

1306ETN9/C3 SKF

All dimensions

1. Inner (d) MM 30,00
2. Outer (D) MM 72,00
3. Width (B) MM 19,00
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.7480

Suffix description

1. E Optimized Internal Design
2. TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered
3. C3 Radial Internal Clearance Greater Than Normal

Technical details

1. Availability 18 pcs
2. Brand SKF
3. Item number 1306ETN9/C3 SKF
4. EAN 7316577730336
5. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.387

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
