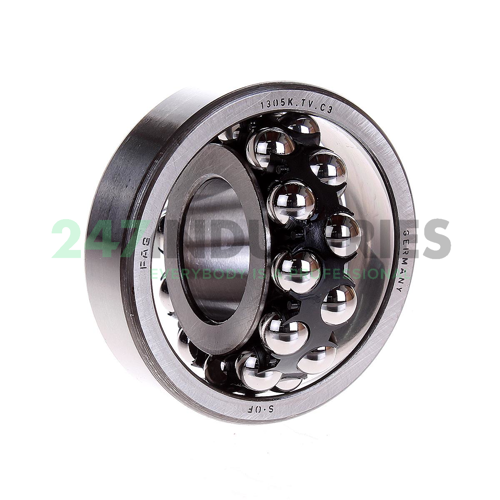

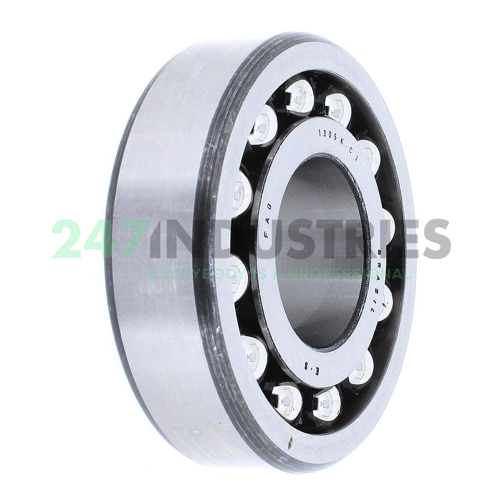

1305K.TV.C3 FAG

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 62
3. Width (B) MM 17
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6693

Suffix description

1. K Tapered Bore, Taper 1:12
2. TV Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 1305K.TV.C3 FAG
4. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.252

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
