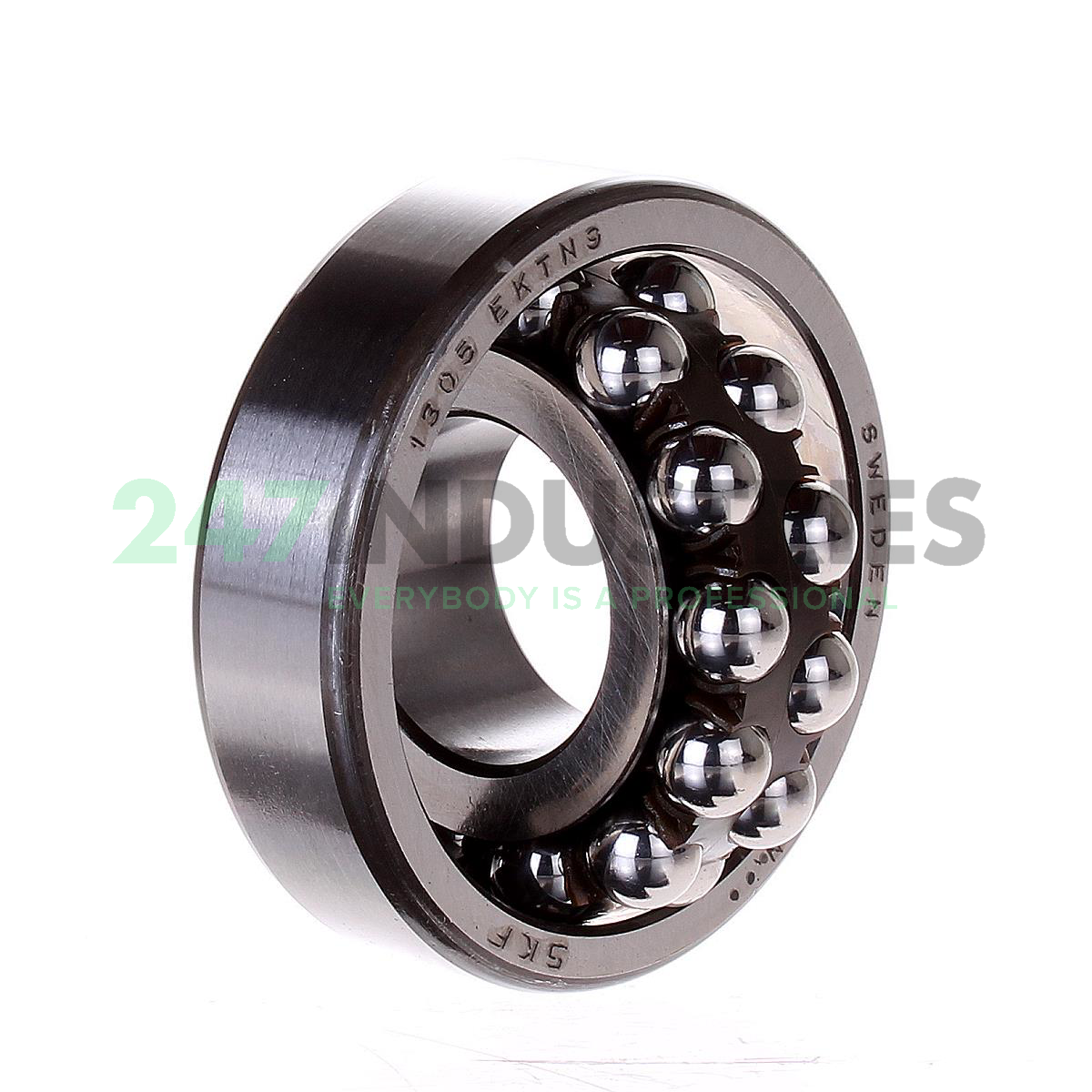

1305EKTN9 SKF

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 62
3. Width (B) MM 17
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6693

Suffix description

1. E Optimized Internal Design
2. K Tapered Bore, Taper 1:12
3. TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered

Technical details

1. Availability 17 pcs
2. Brand SKF
3. Item number 1305EKTN9 SKF
4. EAN 7316577052117
5. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.25

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
