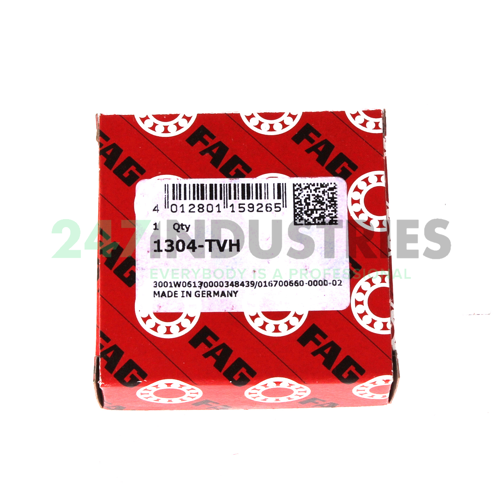

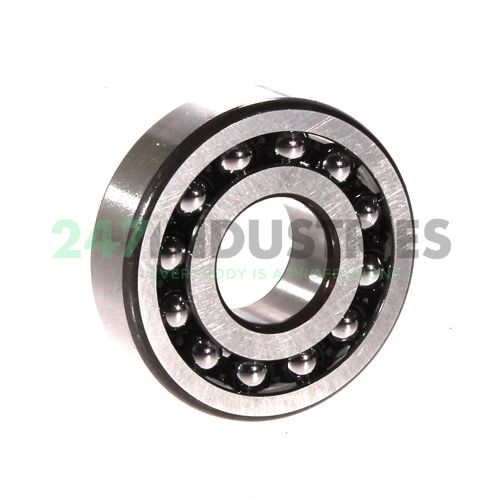

1304-TVH FAG

All dimensions

1. Inner (d) MM 20,00
2. Outer (D) MM 52,00
3. Width (B) MM 15,00
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5906
7. Width (b) mm 15,00

Suffix description

1. TVH Solid Cage Made From Glass Fibre Reinforced Polyamide 66

Technical details

1. Availability 1 pc
2. Brand FAG
3. Item number 1304-TVH FAG
4. Also known as 0167006600000
   3003339000000

5. EAN 4012801159265
6. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.164

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 3350
2. Radial Dynamic Load Rating Cr (N) 12700
3. Basic static load rating, radial (C 0r) "3350.0000"
4. Limiting speed (n G) "16100.0000"
5. Reference speed (n ϑr) "11600.0000"
6. ECLASS number 23-05-08-06
7. ECLASS2 number 23-05-08-06
8. Medias description Self-aligning ball bearings 13, main dimensions to DIN 630

Downloads and links

1. Link to manufacturer Link to manufacturer
