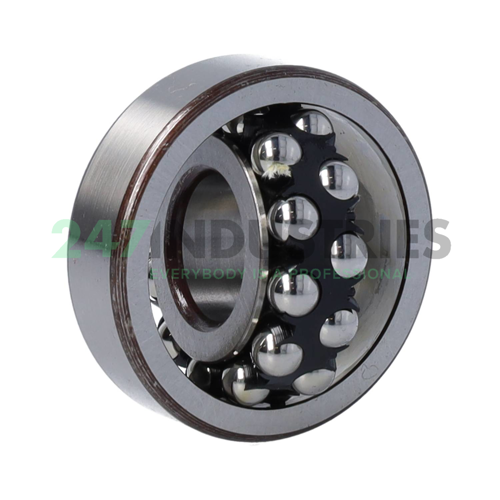

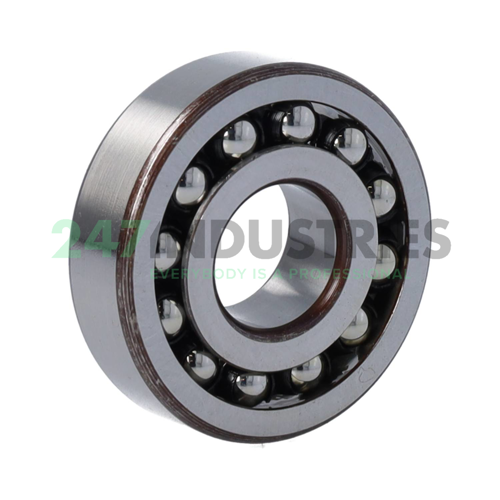

1304-TVH-C3 FAG

All dimensions

1. Inner (d) MM 20,00
2. Outer (D) MM 52,00
3. Width (B) MM 15,00
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5906
7. Width (b) mm 15,00

Technical details

1. Availability 110 pcs
2. Brand FAG
3. Item number 1304-TVH-C3 FAG
4. Also known as 0167006600030
   1304ETN9/C3
   1304TNGC3
   1304-TVH-C3>N
   3003339000030

5. EAN 4012801159272
6. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.164

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 3350
2. Radial Dynamic Load Rating Cr (N) 12700
3. Basic static load rating, radial (C 0r) "3350.0000"
4. Limiting speed (n G) "16100.0000"
5. Reference speed (n ϑr) "11600.0000"
6. ECLASS number 23-05-08-06
7. ECLASS2 number 23-05-08-06
8. Medias description Self-aligning ball bearings 13, main dimensions to DIN 630
