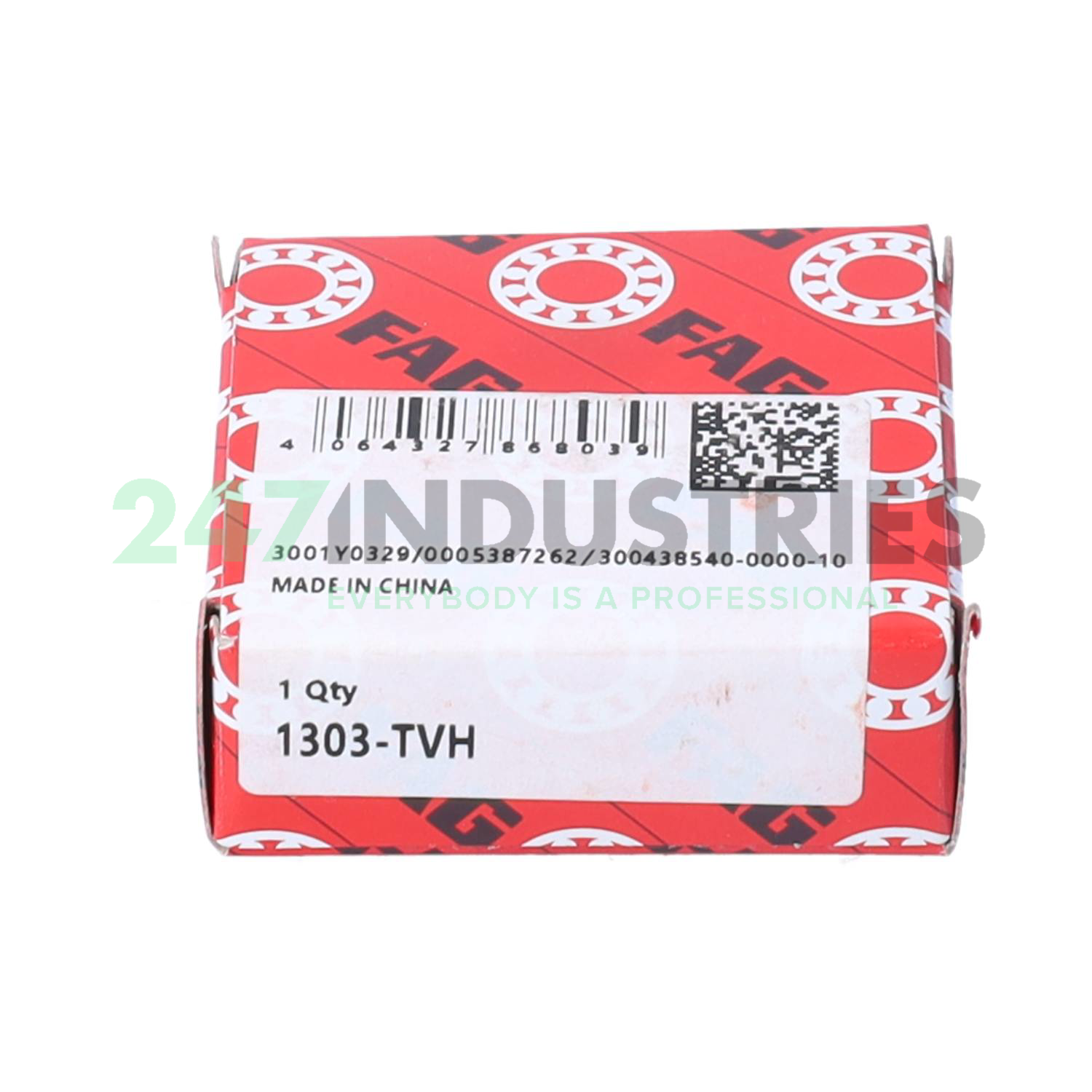

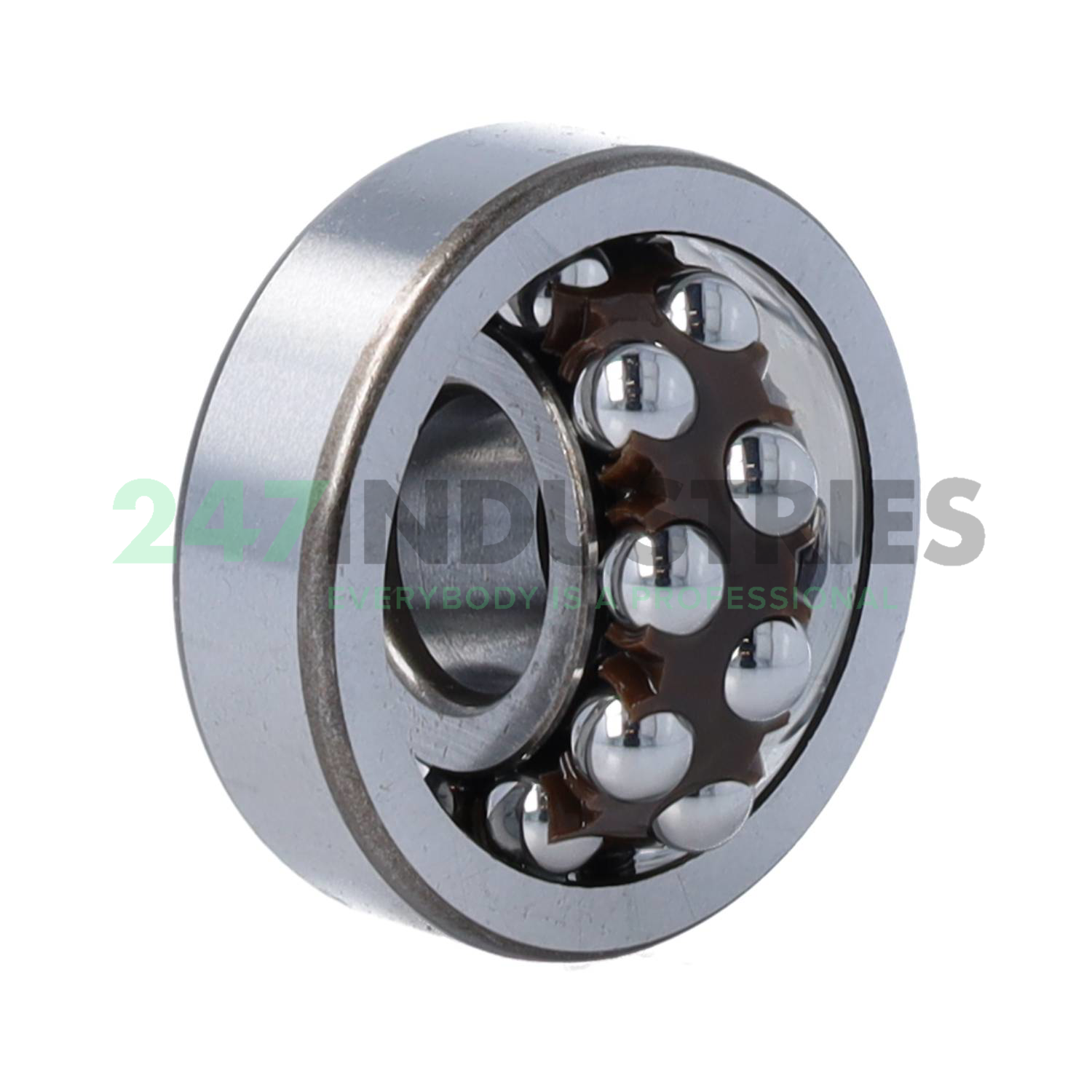

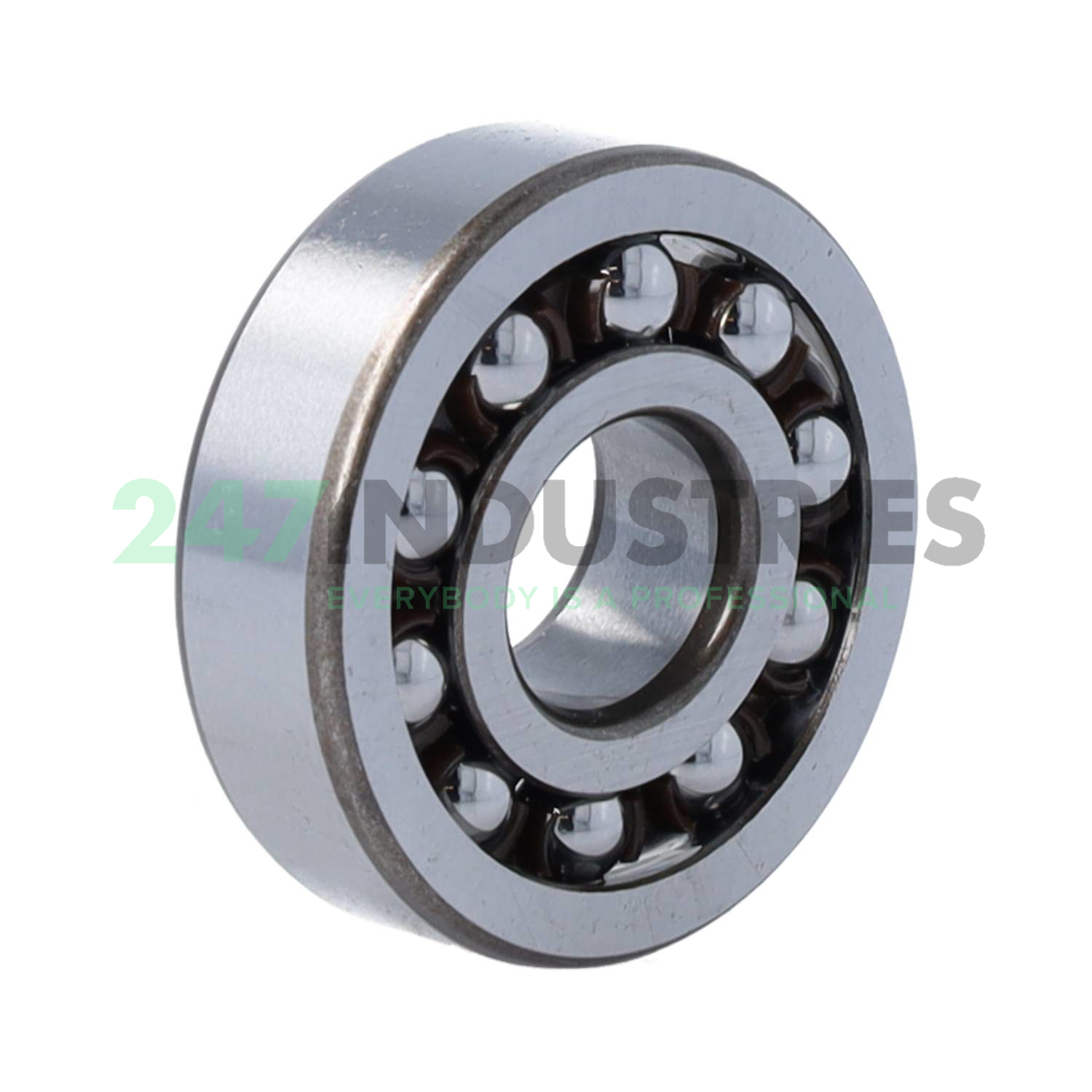

1303-TVH FAG

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 47
3. Width (B) MM 14
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512
7. Width (b) mm 14

Suffix description

1. TVH Solid Cage Made From Glass Fibre Reinforced Polyamide 66

Technical details

1. Availability 62 pcs
2. Brand FAG
3. Item number 1303-TVH FAG
4. Also known as 3004385400000

5. EAN 4064327868039
6. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.12

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 3200
2. Limiting speed (n G) 17800
3. Reference speed (n ϑr) 13300
