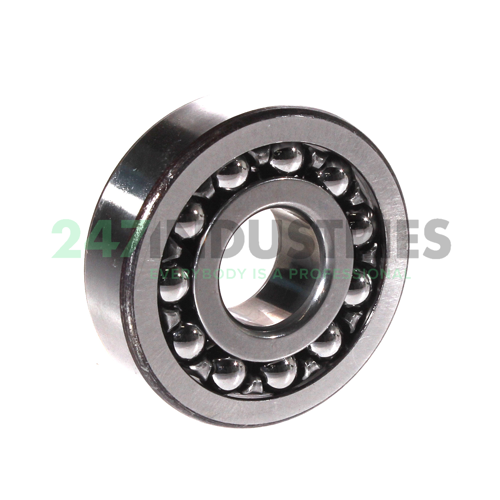

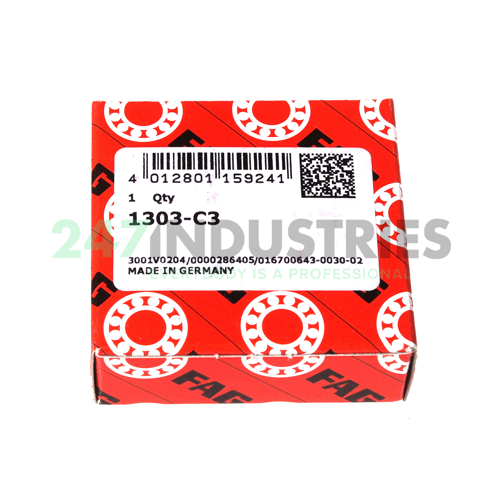

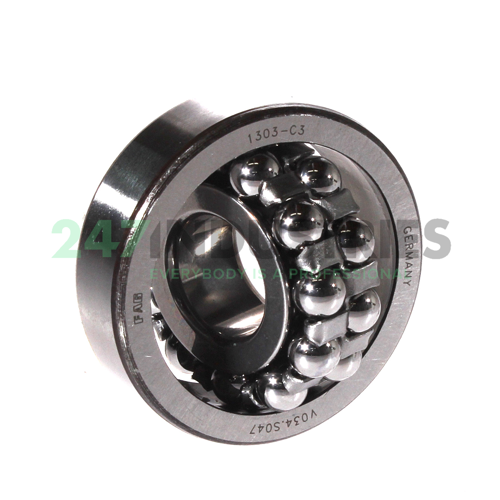

1303-C3 FAG

All dimensions

1. Inner (d) MM 17,00
2. Outer (D) MM 47,00
3. Width (B) MM 14,00
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512
7. Width (b) mm 14,00

Suffix description

1. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 12 pcs
2. Brand FAG
3. Item number 1303-C3 FAG
4. Also known as 0167006430030

5. EAN 4012801159241
6. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.13

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 3200
2. Radial Dynamic Load Rating Cr (N) 12900
3. Basic static load rating, radial (C 0r) "3200.0000"
4. Limiting speed (n G) "17800.0000"
5. Reference speed (n ϑr) "13300.0000"
6. ECLASS number 23-05-08-06
7. ECLASS2 number 23-05-08-06
8. Medias description Self-aligning ball bearing 13

Downloads and links

1. Link to manufacturer Link to manufacturer
