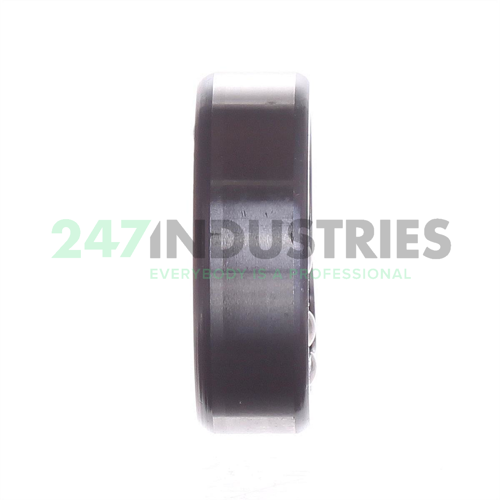

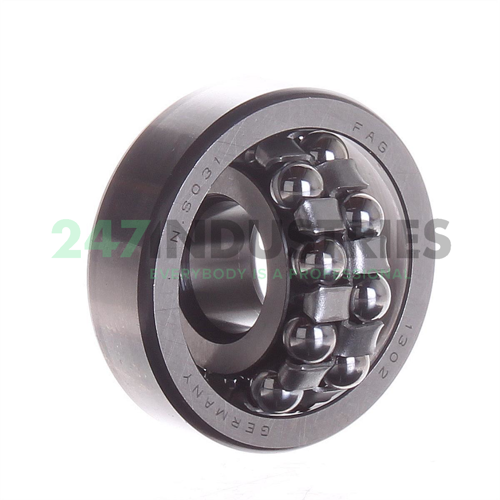

1302 FAG

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 42
3. Width (B) MM 13
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.5118
7. Width (b) mm 13

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 1302 FAG
4. Also known as 0167006350000

5. EAN 4012801159203
6. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.094

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 2280
2. Radial Dynamic Load Rating Cr (N) 9800
3. Limiting speed (n G) 20500
4. Reference speed (n ϑr) 14800
5. ECLASS number 23-05-08-06
6. ECLASS2 number 23-05-08-06
7. Medias description Self-aligning ball bearing 13
