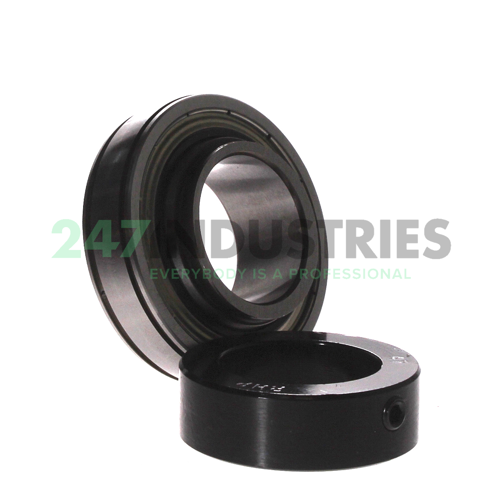

1235-1.7/16ECG RHP

All dimensions

1. Inner (d) MM 36,51
2. Outer (D) MM 72
3. Width (B) MM 39
4. Inner (d) Inch 1.4375
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.5354

Suffix description

1. EC Excentric Collar Lock With Flush Inner Ring On One Side
2. G Regreasing Facility With Lubricating Groove And Hole In The Outer Ring

Technical details

1. Availability 0 pcs
2. Brand RHP
3. Item number 1235-1.7/16ECG RHP
4. EAN 00747023043170
5. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.483

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment
