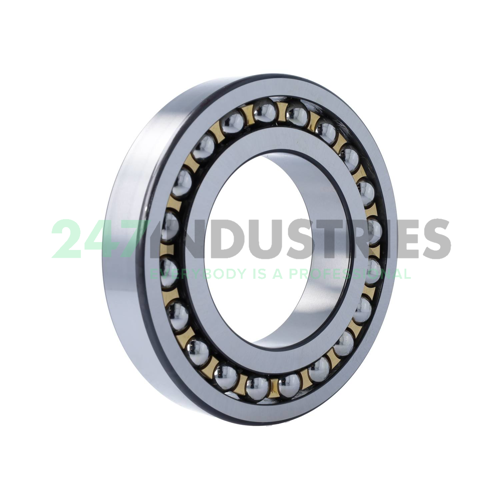

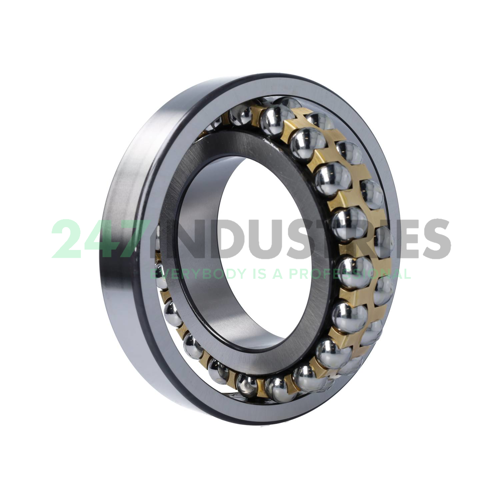

1222-K-M FAG

All dimensions

1. Inner (d) MM 110
2. Outer (D) MM 200
3. Width (B) MM 38
4. Inner (d) Inch 4.3307
5. Outer (D) Inch 7.874
6. Width (B) Inch 1.4961
7. Width (b) mm 38

Suffix description

1. K Tapered Bore, Taper 1:12
2. M Solid Brass Cage

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 1222-K-M FAG
4. Also known as 0384369650000

5. EAN 4012801471039
6. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 5.08

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Seal No Seal
3. Cage Type M - Brass Cage
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 38500
2. Limiting speed (n G) 5300
3. Reference speed (n ϑr) 4200

Downloads and links

1. Download datasheet Download datasheet
2. Link to Manufacturer Link to Manufacturer
