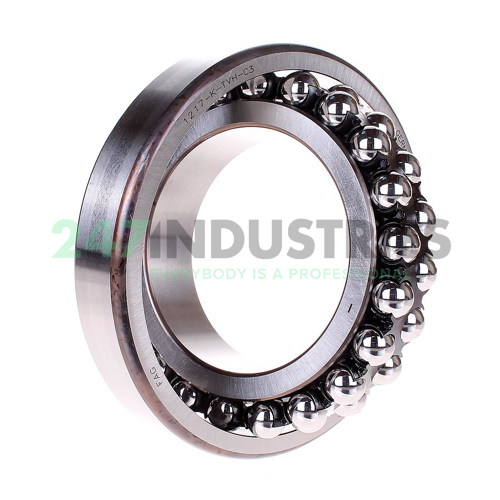

1217-K-TVH-C3 FAG

All dimensions

1. Inner (d) MM 85,00
2. Outer (D) MM 150,00
3. Width (B) MM 28,00
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.1024
7. Width (b) mm 28,00

Suffix description

1. K Tapered Bore, Taper 1:12
2. TVH Solid Cage Made From Glass Fibre Reinforced Polyamide 66
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 8 pcs
2. Brand FAG
3. Item number 1217-K-TVH-C3 FAG
4. Also known as 0389033260030
   3007441020030

5. EAN 4012801184120
6. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 2.04

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 20800
2. Radial Dynamic Load Rating Cr (N) 49500
3. Basic static load rating, radial (C 0r) "20800.0000"
4. Limiting speed (n G) "4900.0000"
5. Reference speed (n ϑr) "4950.0000"
6. ECLASS number 23-05-08-06
7. ECLASS2 number 23-05-08-06
8. Medias description Self-aligning ball bearing 12..-K-TVH
