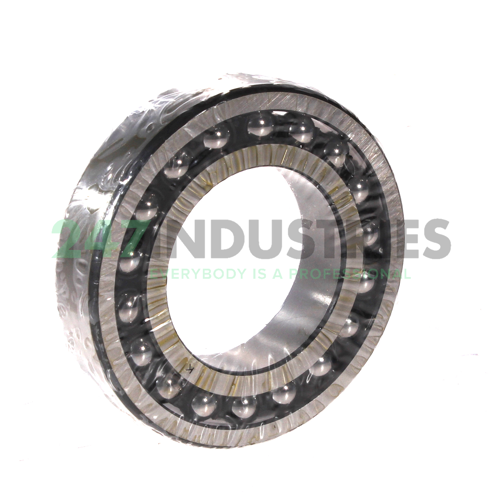

1210KTNGC3 NSK

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 90
3. Width (B) MM 20
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.7874

Suffix description

1. K Tapered Bore, Taper 1:12
2. TNG Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 1210KTNGC3 NSK
4. Also known as 1210EKTN9/C3
   1210-K-TVH-C3

5. EAN 00029176409493
6. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.515

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
