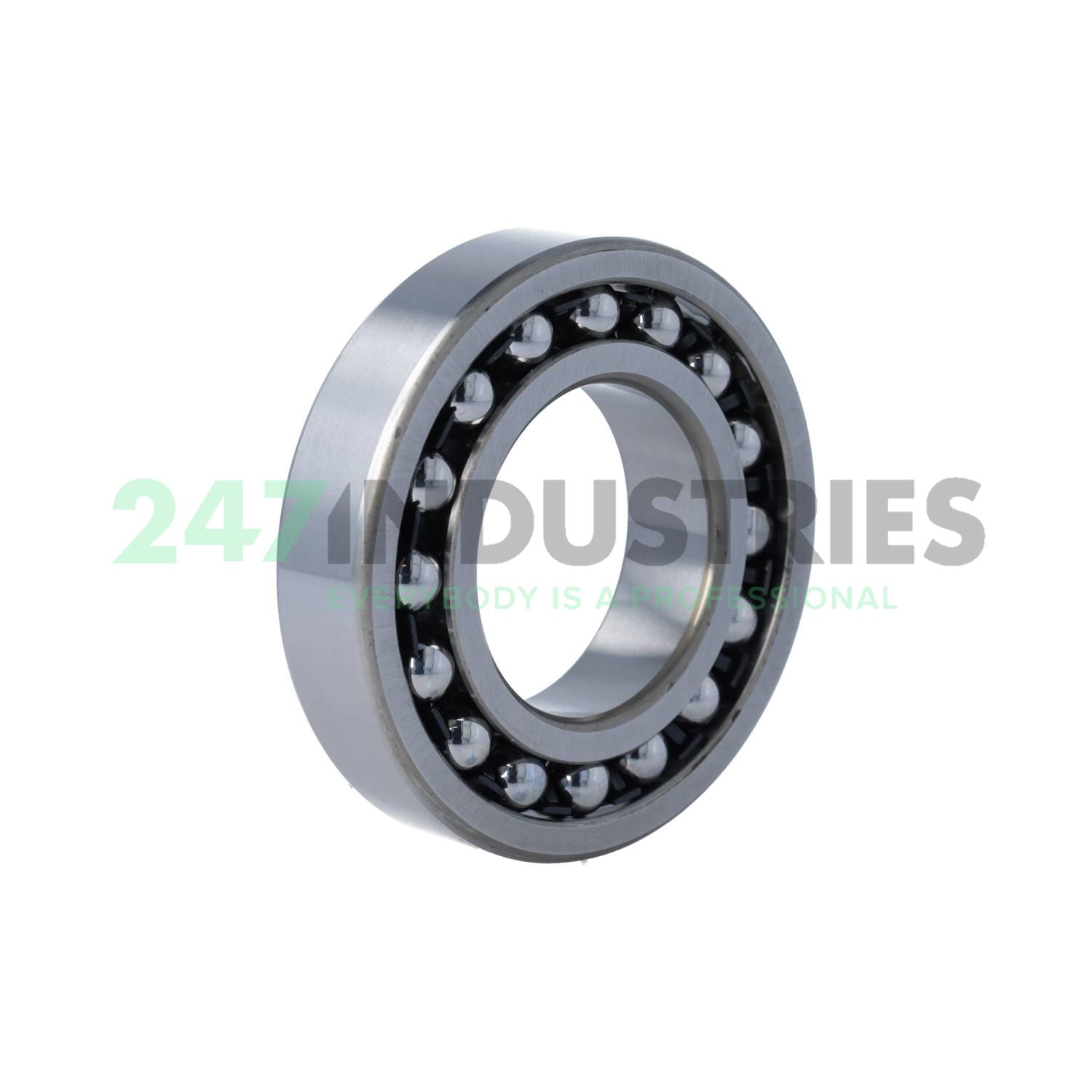

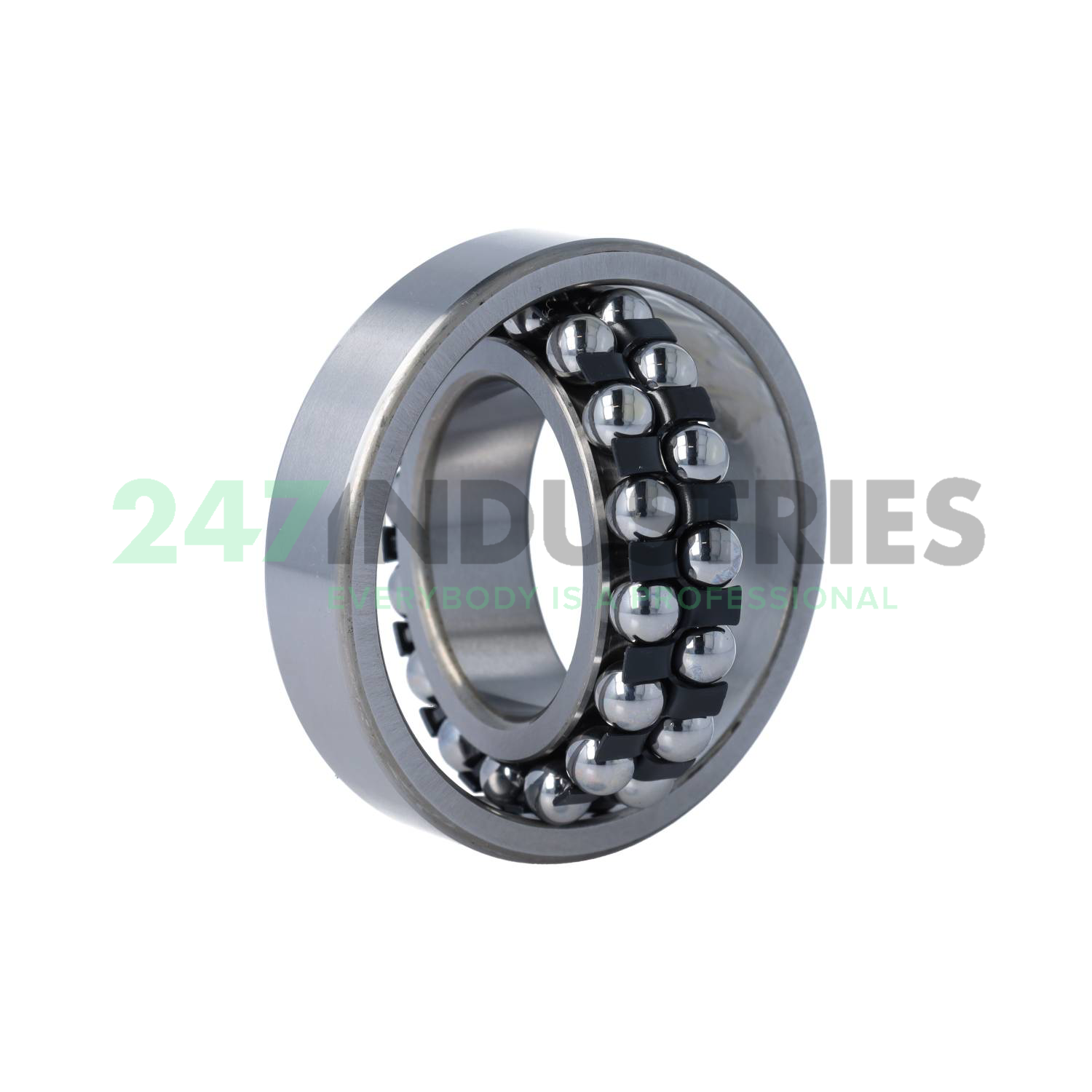

1209KC3 NSK

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 85
3. Width (B) MM 19
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.748

Suffix description

1. K Tapered Bore, Taper 1:12
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 4 pcs
2. Brand NSK
3. Item number 1209KC3 NSK
4. EAN 00029176059063
5. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.459

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
