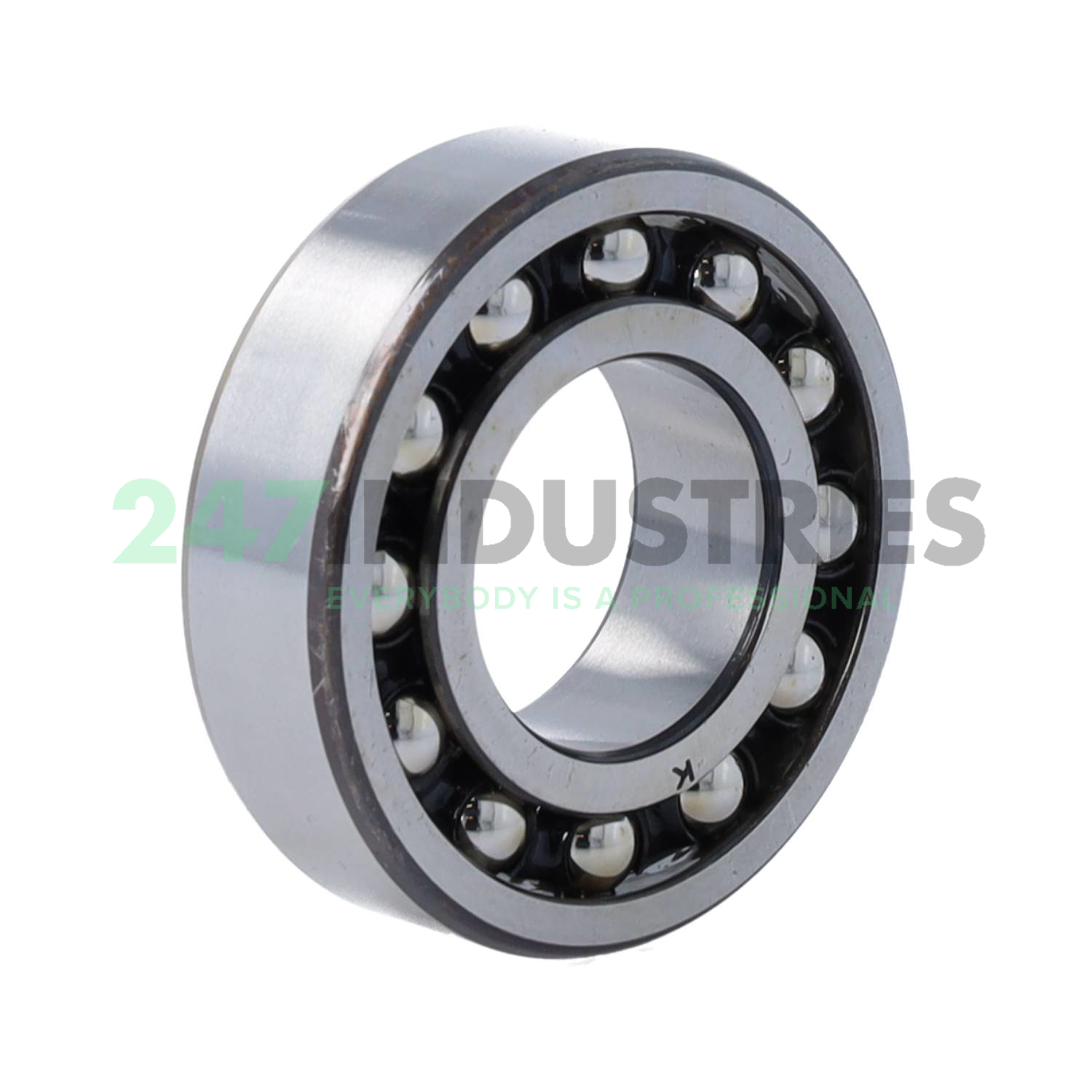

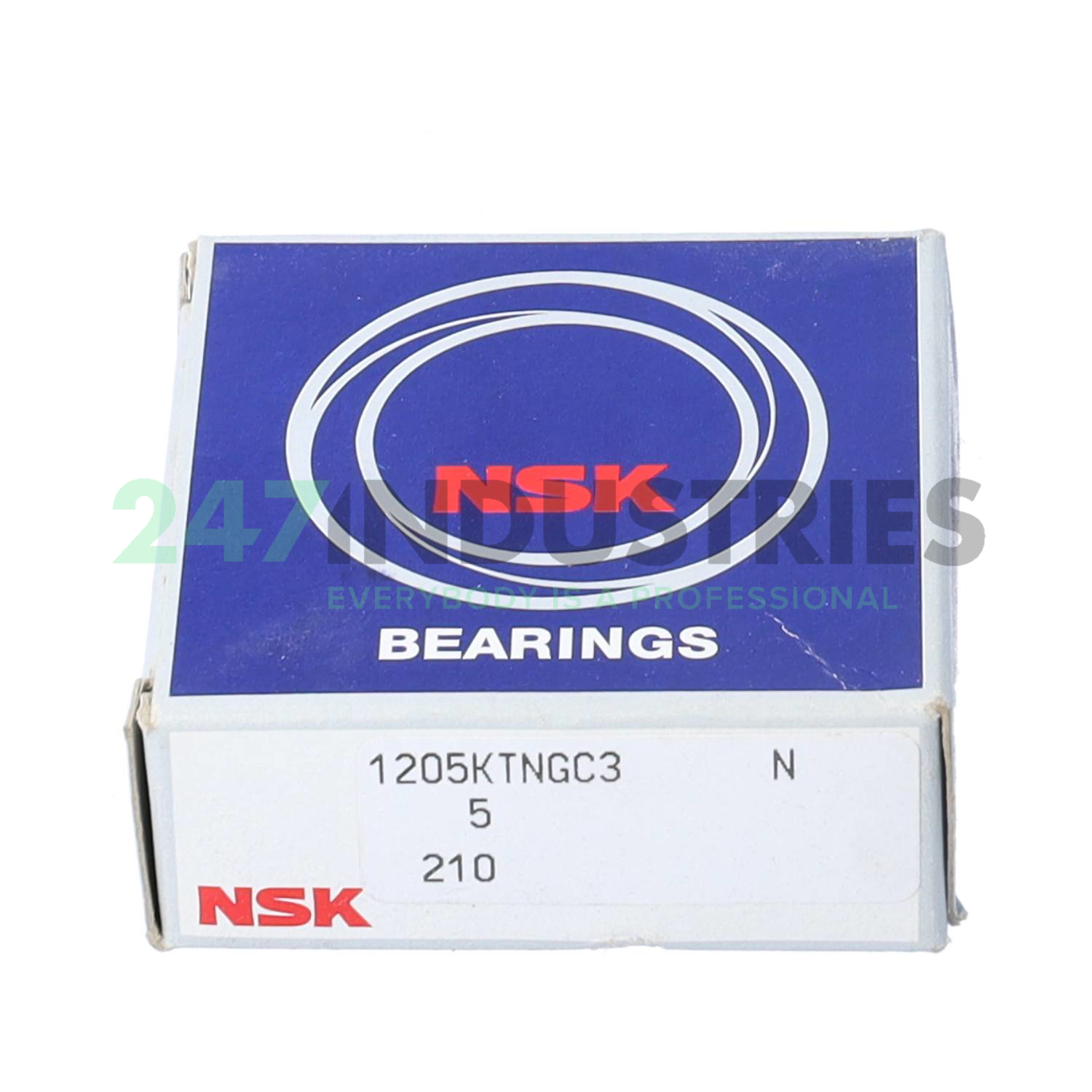

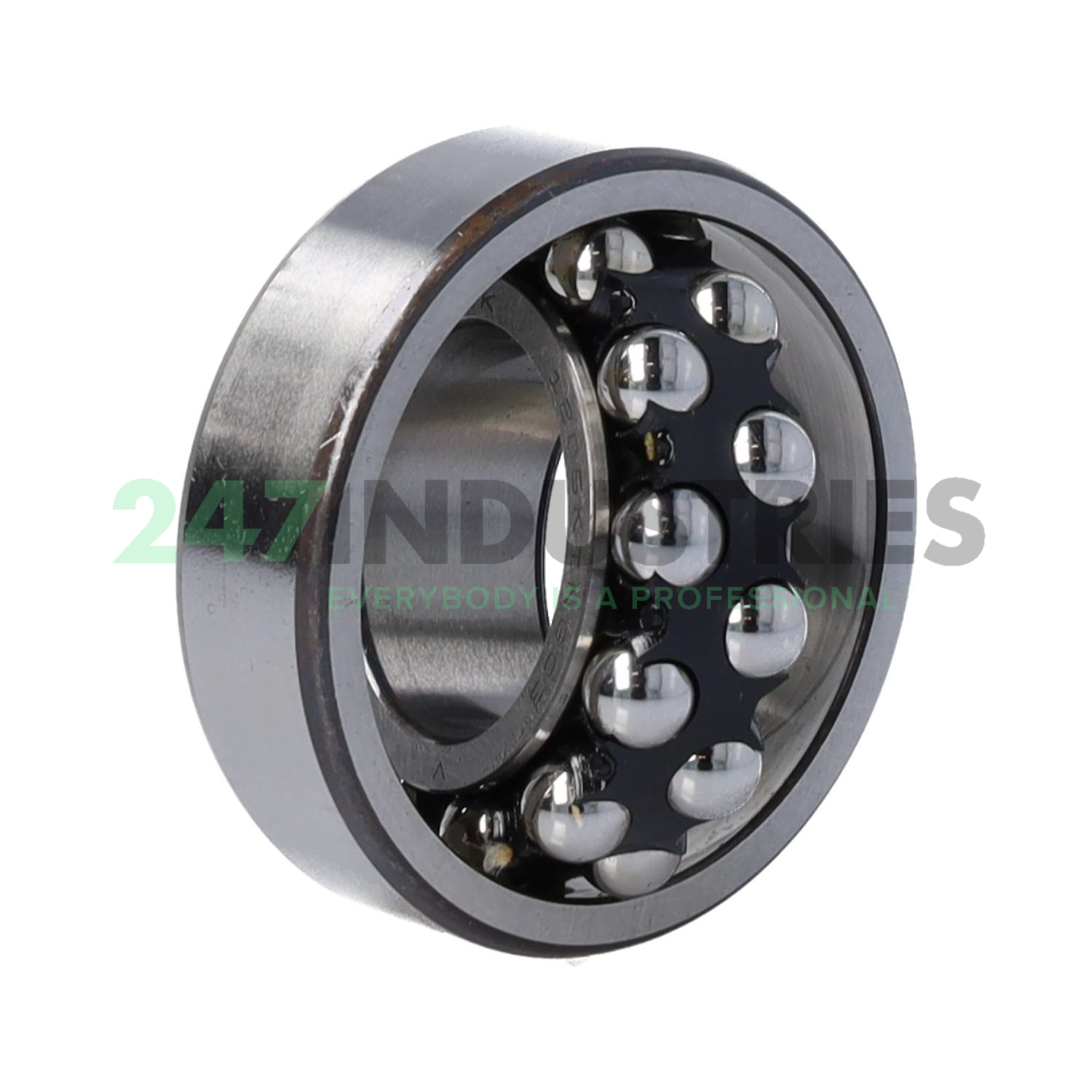

1205KTNGC3 NSK

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 52
3. Width (B) MM 15
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5906

Suffix description

1. K Tapered Bore, Taper 1:12
2. TNG Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 12 pcs
2. Brand NSK
3. Item number 1205KTNGC3 NSK
4. EAN 00029176409219
5. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.138

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
