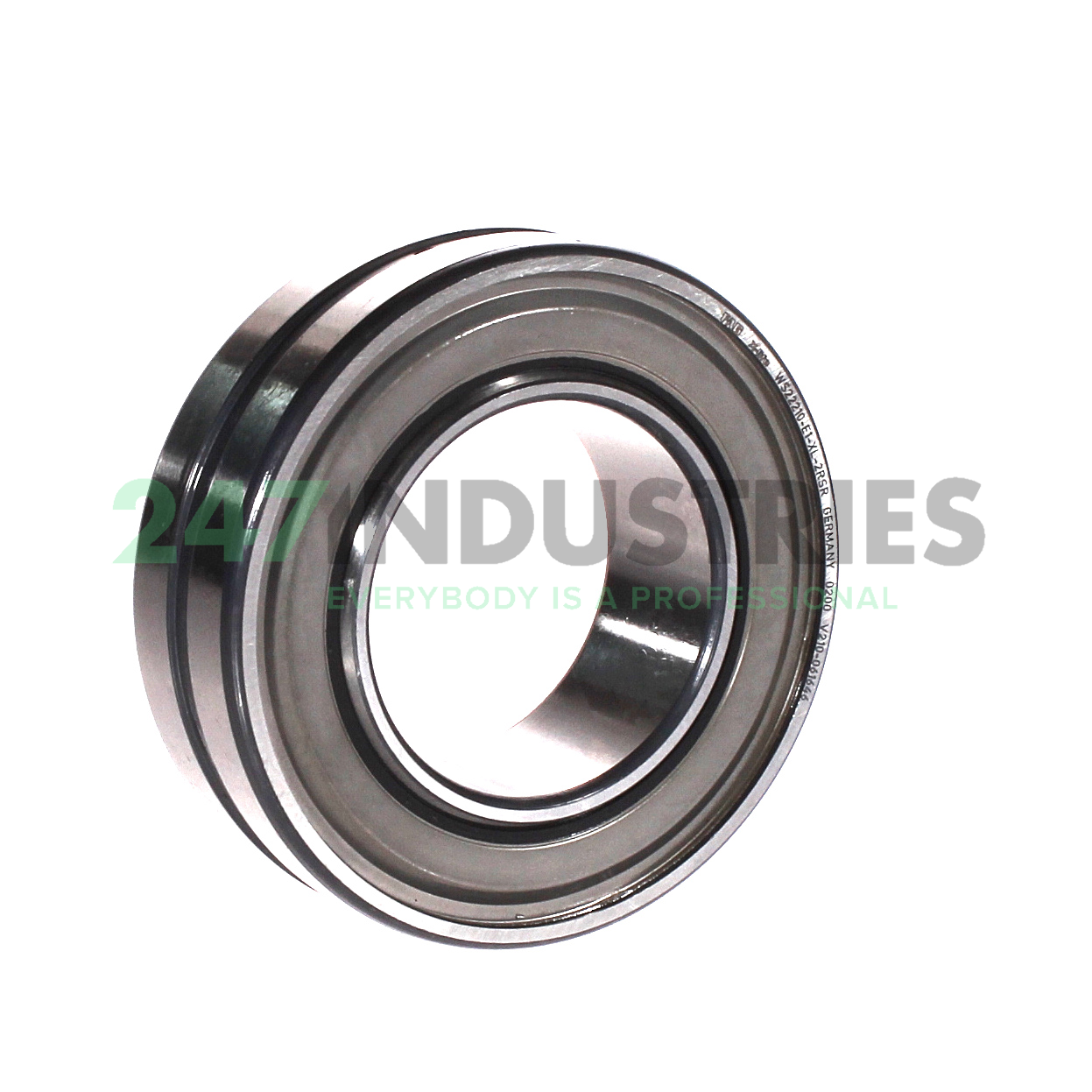

10X22210EAW33EEL SNR

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 90
3. Width (B) MM 28
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.5433
6. Width (B) Inch 1.1024

Suffix description

1. EA Higher Capacity, Better Than Former Suffix E
2. W33 Lubrication Groove And Three Holes In Bearing Outer Ring
3. EE Rubber Seals At Each Side Of The Bearing
4. L Low Noise

Technical details

1. Availability 0 pcs
2. Brand SNR
3. Item number 10X22210EAW33EEL SNR
4. Also known as 10X22210EAW33EE
   BS2-2210-2RS/VT143
   WS22210-E1-XL-2RSR

5. EAN 3413521215209
6. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 0.7

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal 2RS - Rubber Seal on Two Sides
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
