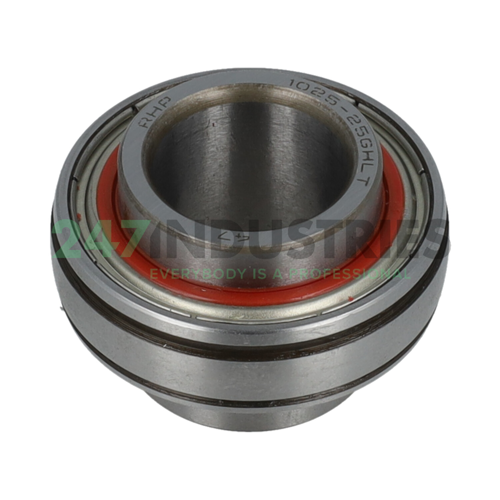

1025-25GHLT AHQP5 RHP

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 52
3. Width (B) MM 34,1
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.0472
6. Width (B) Inch 1.3425

Suffix description

1. G Bearing Insert Having Relubrication Facility
2. HLT High And Low Temperature Bearing Insert
3. AHQ Lubricant, Operating Temperature -40 ~ 180°C, Peak +200°C
4. P Protectors - Multi-Pack - Only Supplied In Boxed Quantities
5. 5 Standard Single Pack. Bearings In Polythene Bags Or Hizex Film Are Placed In Individual Cardboard Boxes. The Individual Boxes Are Then Placed In A Cardboard Outer Carton And Polystrene Filled

Technical details

1. Availability 32 pcs
2. Brand RHP
3. Item number 1025-25GHLT AHQP5 RHP
4. Also known as 1025-25GHLT
   56205
   GYE25KRRB
   YAR205-2F

5. EAN 00747023109692
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.19

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Higher and Lower Temperature Grease
3. Special Treatment 1 - Special Heat Tr -40/+250°C
