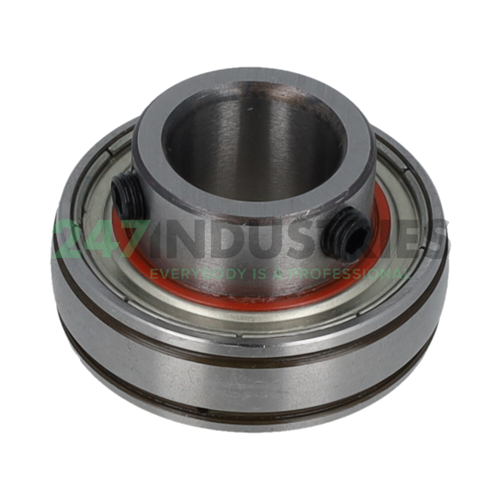

1020-3/4GHLT AHQP5 RHP

All dimensions

1. Inner (d) MM 19,05
2. Outer (D) MM 47
3. Width (B) MM 31
4. Inner (d) Inch 0.75
5. Outer (D) Inch 1.8504
6. Width (B) Inch 1.2205

Suffix description

1. G Bearing Insert Having Relubrication Facility
2. HLT High And Low Temperature Bearing Insert
3. AHQ Lubricant, Operating Temperature -40 ~ 180°C, Peak +200°C
4. P Protectors - Multi-Pack - Only Supplied In Boxed Quantities
5. 5 Standard Single Pack. Bearings In Polythene Bags Or Hizex Film Are Placed In Individual Cardboard Boxes. The Individual Boxes Are Then Placed In A Cardboard Outer Carton And Polystrene Filled

Technical details

1. Availability 2 pcs
2. Brand RHP
3. Item number 1020-3/4GHLT AHQP5 RHP
4. Also known as 1020-3/4GHLT
   YAR204-012-2F

5. EAN 00747023109647
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.17

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Higher and Lower Temperature Grease
3. Special Treatment No Special Treatment
