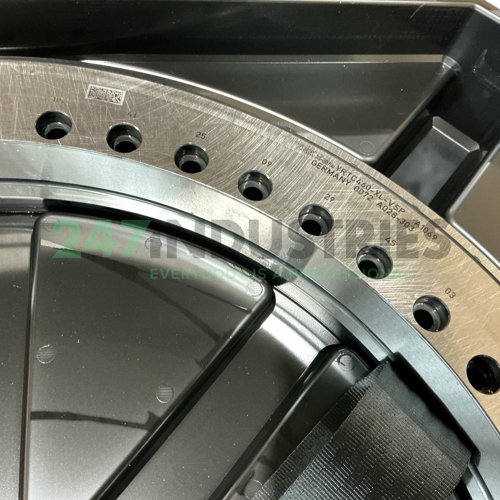

YRTC460-XL-VSP INA

Alle Abmessungen

1. Innen (d) mm 460
2. Außen (D) mm 600
3. Breite (B) mm 70
4. Höhe (H) mm 70

Suffixbeschreibungen

1. XL X-Life
2. VSP For Mounting With An Axially Supported L-Section Ring In Series YRT. In Fitting Of The Series YRT With An L-Section Ring Supported Axially Over Its Whole Surface, There Is An Increase In The Axial Rigidity In The Direction Of The Support Ring As A Function Of The Support Ring Rigidity And In The Tilting Rigidity Of Up To 20%. In This Case, Delivery With A Different Preload Match Is Necessary

Technische Daten

1. Verfügbarkeit 0 St.
2. Marke INA
3. Item number YRTC460-XL-VSP INA
4. Also known as 0889029780079
   YRT460-C-VSP
   YRTC460-VSP

5. EAN 4054371248727
6. Category Spezialelemente

Gewicht und Abmessungen

1. Gewicht (kg) 45.2

Angaben von Schaeffler (medias)

1. Grunddynamische Tragzahl, axial (C a) 290000
2. Grundstatische Tragzahl, axial (C 0a) 2550000
3. Grundstatische Tragzahl, radial (C 0r) 880000
4. Begrenzungsdrehzahl (n G) 150
5. ECLASS number 23-05-12-04
6. ECLASS2 number 23-05-12-04
