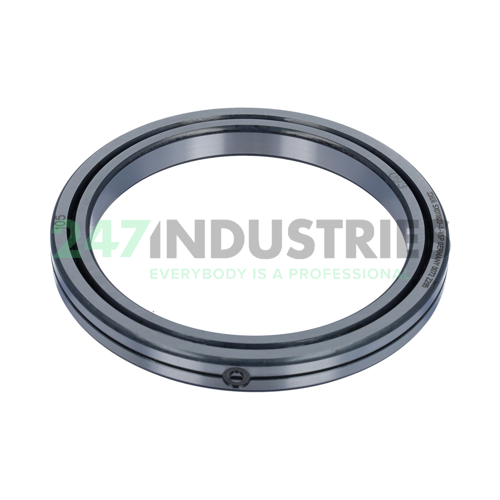

SX011820-A-VSP INA

Alle Abmessungen

1. Innen (d) mm 100,00
2. Außen (D) mm 125,00
3. Breite (B) mm 13,00
4. Innen (d) Zoll 3.9370
5. Außen (D) Zoll 4.9213
6. Breite (B) Zoll 0.5118
7. Außendurchmesser (D a) mm 125,00
8. Höhe des montierten Lagers (H) mm 13,00

Suffixbeschreibungen

1. A
2. VSP For Mounting With An Axially Supported L-Section Ring In Series YRT. In Fitting Of The Series Yrt With An L-Section Ring Supported Axially Over Its Whole Surface, There Is An Increase In The Axial Rigidity In The Direction Of The Support Ring As A Function Of The Support Ring Rigidity And In The Tilting Rigidity Of Up To 20%. In This Case, Delivery With A Different Preload Match Is Necessary

Technische Daten

1. Verfügbarkeit 11 St.
2. Marke INA
3. Item number SX011820-A-VSP INA
4. Also known as 0071373460079

5. EAN 4054366267726
6. Category Spezialelemente

Gewicht und Abmessungen

1. Gewicht (kg) 0.4

Angaben von Schaeffler (medias)

1. ECLASS number 23-05-12-05
2. ECLASS2 number 23-05-12-05

Downloads und Links

1. Link to manufacturer Link to manufacturer
