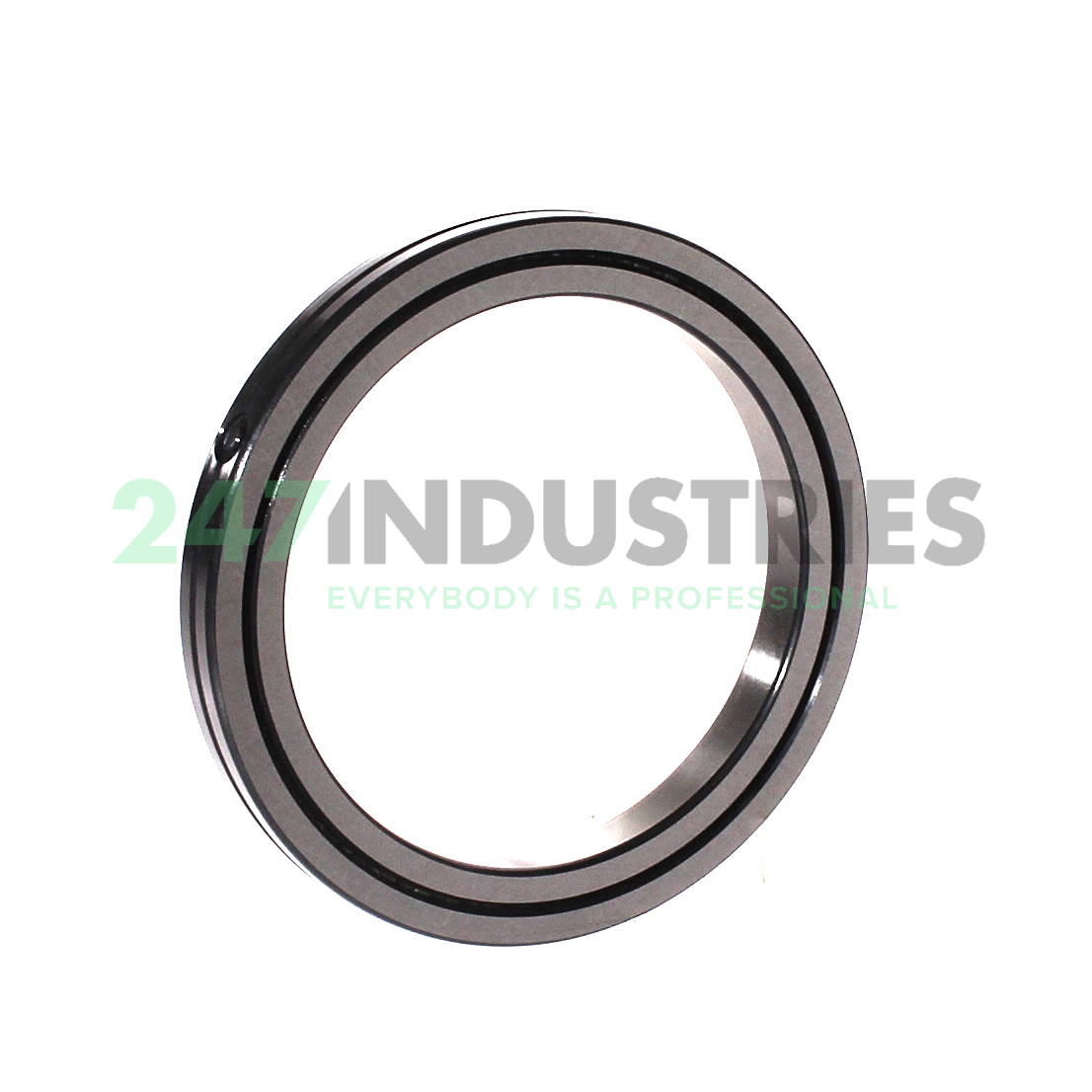

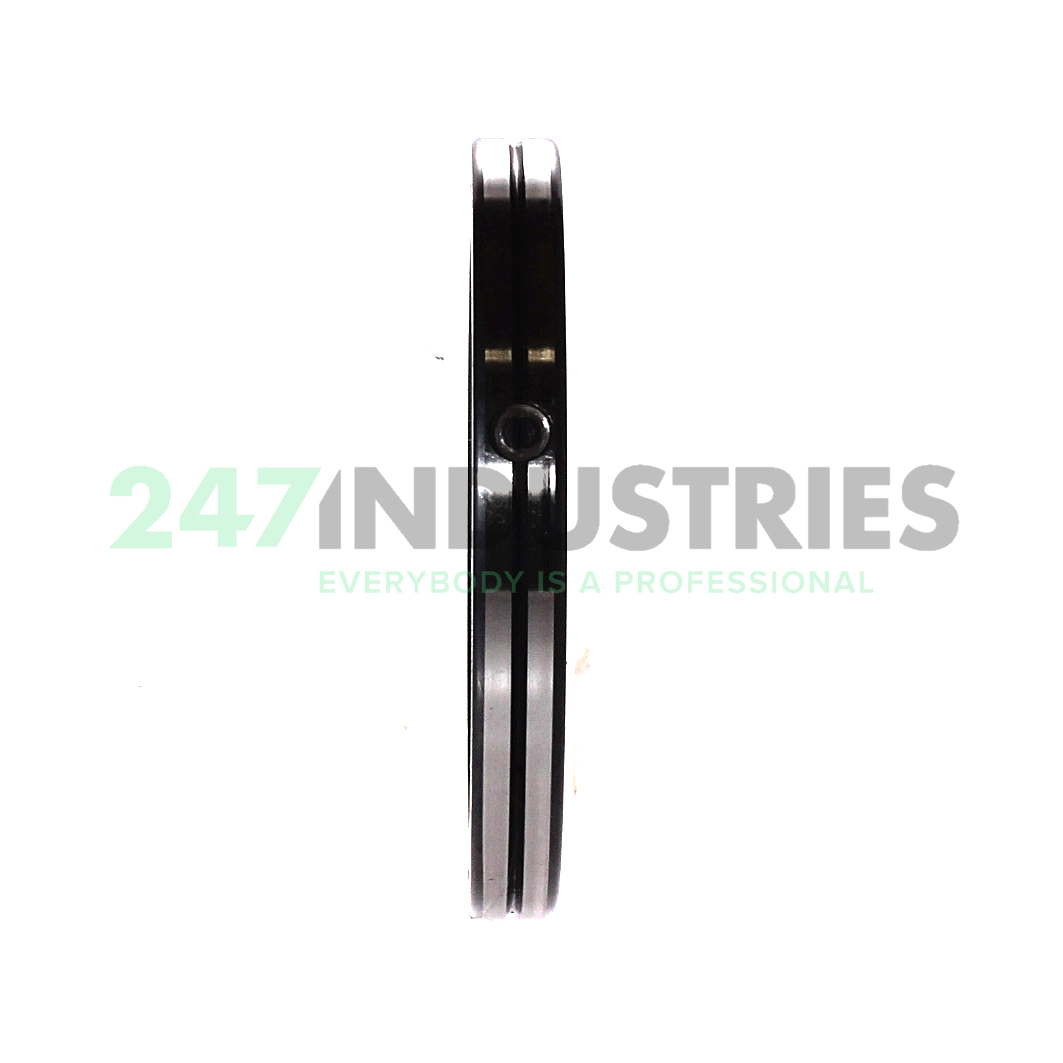

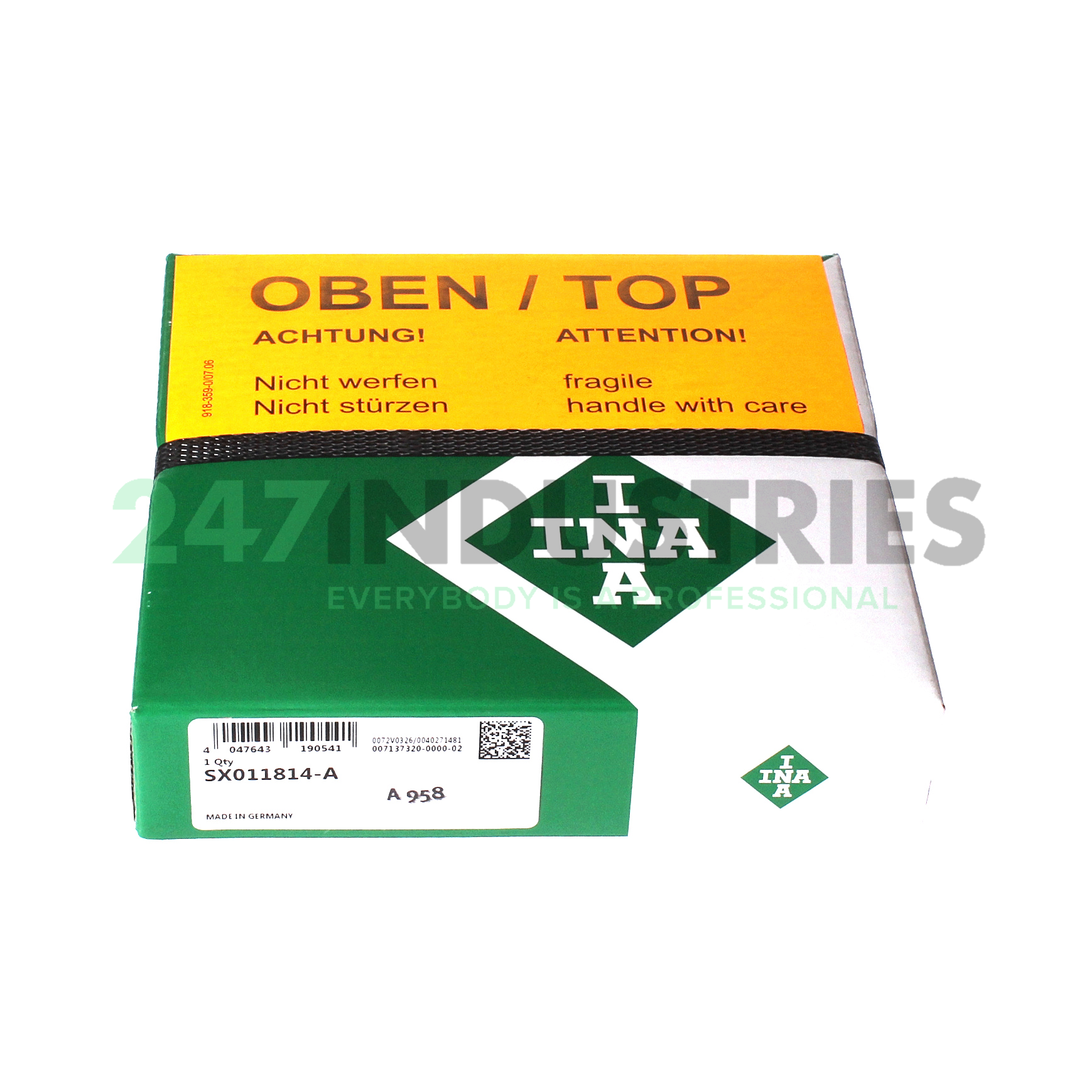

SX011814-A INA

Alle Abmessungen

1. Innen (d) mm 70
2. Außen (D) mm 90
3. Breite (B) mm 10
4. Innen (d) Zoll 2.7559
5. Außen (D) Zoll 3.5433
6. Breite (B) Zoll 0.3937
7. Außendurchmesser (D a) mm 90
8. Höhe des montierten Lagers (H) mm 10

Suffixbeschreibungen

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technische Daten

1. Verfügbarkeit 19 St.
2. Marke INA
3. Item number SX011814-A INA
4. Also known as 0071373200000

5. EAN 4047643190541
6. Category Spezialelemente

Gewicht und Abmessungen

1. Gewicht (kg) 0.3

Angaben von Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 25500
2. Radial Dynamic Load Rating Cr (N) 11800
3. Axial Static Load Rating C0a (N) 52000
4. Axial Dynamic Load Rating Ca (N) 16600
5. ECLASS number 23-05-12-05
6. ECLASS2 number 23-05-12-05
7. Medias beschreibung KreuzrollenlagerMaßreihe 18 nach DIN 616
