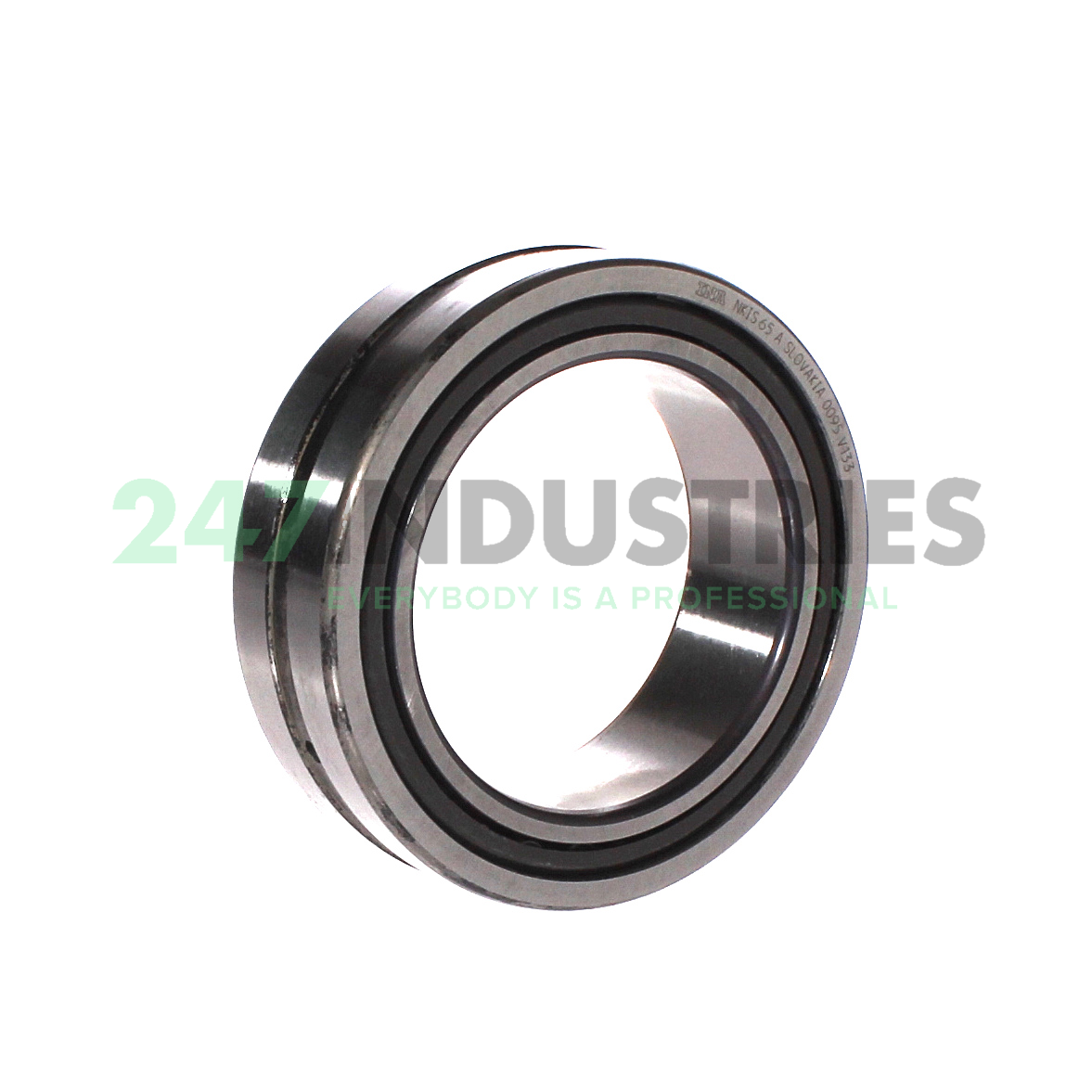

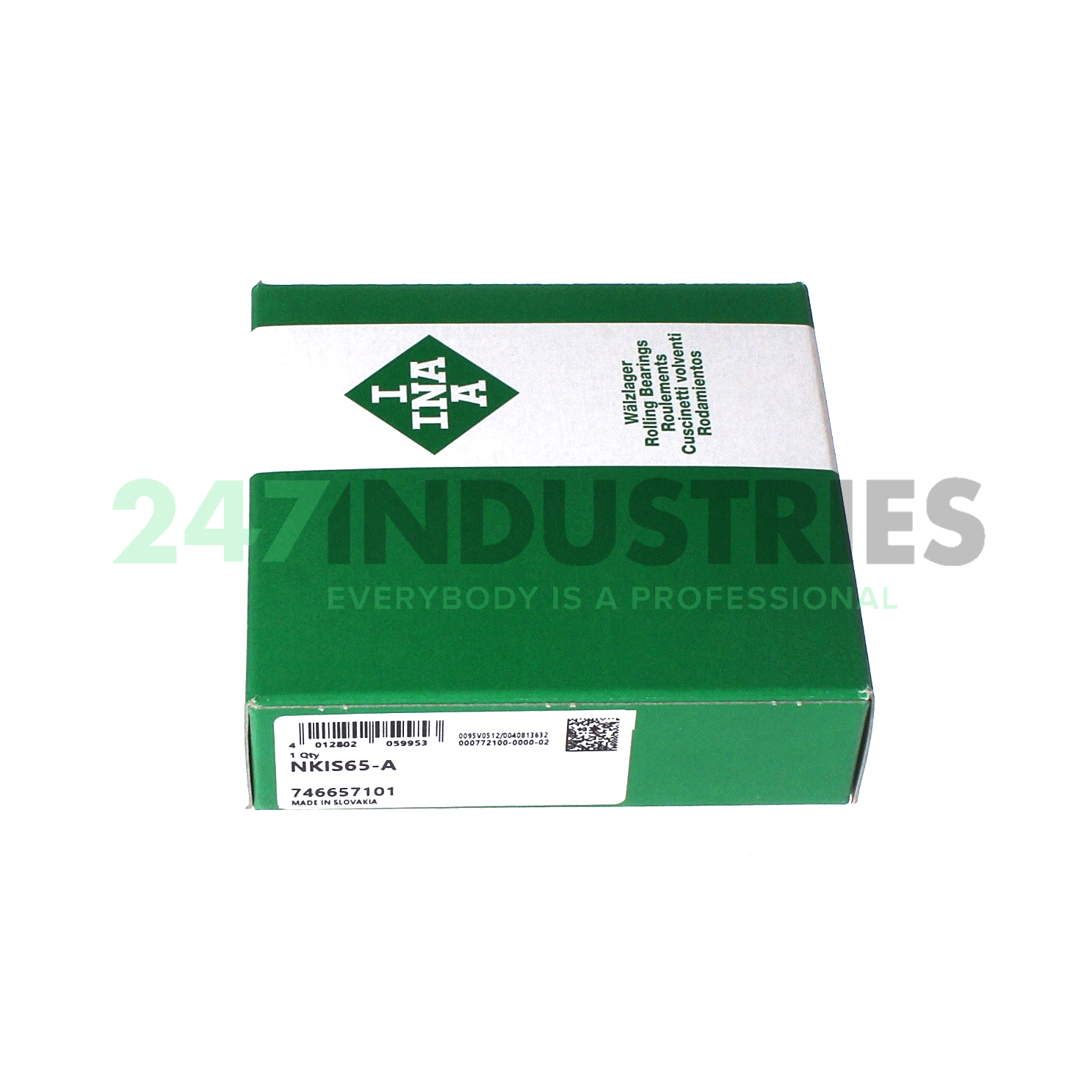

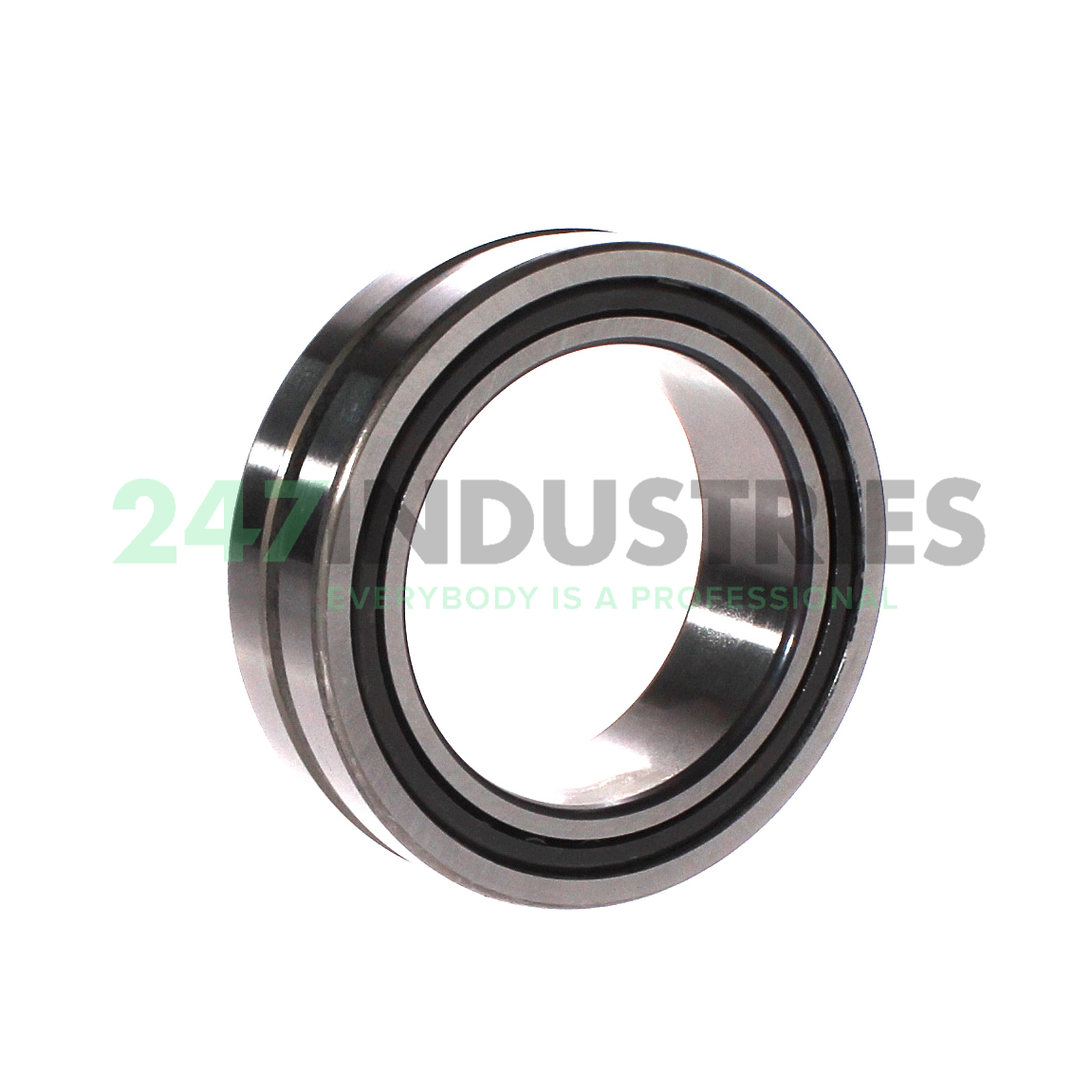

NKIS65-A INA

Alle Abmessungen

1. Innen (d) mm 65
2. Außen (D) mm 95
3. Breite (B) mm 28
4. Innen (d) Zoll 2.5591
5. Außen (D) Zoll 3.7402
6. Breite (B) Zoll 1.1024
7. Breite (b) mm 28

Suffixbeschreibungen

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technische Daten

1. Verfügbarkeit 15 St.
2. Marke INA
3. Item number NKIS65-A INA
4. Also known as 0007721000000

5. EAN 4012802059953
6. Category Nadellager

Gewicht und Abmessungen

1. Gewicht (kg) 0.641

Produkteigenschaften

1. Dichtung Keine Dichtung

Angaben von Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 123000
2. Radial Dynamic Load Rating Cr (N) 71000
3. Begrenzungsdrehzahl (n G) 6000
4. Begrenzungsdrehzahl für Schmierstoffschmierung (n G Fett) 3600
5. Referenzdrehzahl (n ϑr) 3600
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias beschreibung Radial-Rollenlager NKIS..-A
