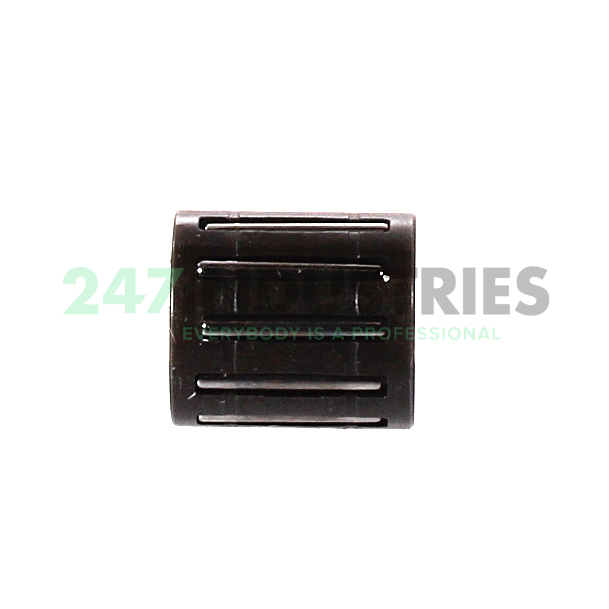

KBK10X13X14,5-A/0-2 INA

Alle Abmessungen

1. Innen (d) mm 10
2. Außen (D) mm 13
3. Breite (B) mm 14,5
4. Innen (d) Zoll 0.3937
5. Außen (D) Zoll 0.5118
6. Breite (B) Zoll 0.5709
7. Durchmesser Unterrollen (F w) mm 10
8. Außendurchmesser des Nadellagersatzes (E w) mm 13
9. Breite (B c) mm 14,5

Suffixbeschreibungen

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. /0-2 Micron - Needle Sort

Technische Daten

1. Verfügbarkeit 202 St.
2. Marke INA
3. Item number KBK10X13X14,5-A/0-2 INA
4. Also known as 0007329900061

5. EAN 4054362429807
6. Category Nadellager

Gewicht und Abmessungen

1. Gewicht (kg) 0.005

Produkteigenschaften

1. Dichtung Keine Dichtung

Angaben von Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 6600
2. Radial Dynamic Load Rating Cr (N) 5400
3. Begrenzungsdrehzahl (n G) 29500
4. ECLASS number 23-05-09-04
5. ECLASS2 number 23-05-09-04
6. Medias beschreibung Nadelkranz KBK, 1-reihig, vgl. KBK, Kolbenbolzenlager

Downloads und Links

1. Link to manufacturer Link to manufacturer
