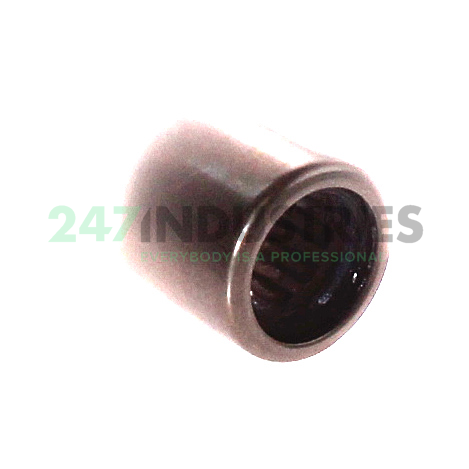

HK0812-2RS-FPM-DK-B-L178 INA

Alle Abmessungen

1. Innen (d) mm 8
2. Außen (D) mm 12
3. Breite (B) mm 12
4. Innen (d) Zoll 0.315
5. Außen (D) Zoll 0.4724
6. Breite (B) Zoll 0.4724
7. Durchmesser Unterrollen (F w) mm 8

Suffixbeschreibungen

1. 2RS Lip Seals On Both Sides
2. FPM Fluorcarbon (Viton®) - Seal Of Series G, Made From Fluoro Rubber
3. DK Tested On Sealing
4. B The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
5. L178 High Speed Grease, Low And High Temp. -50°C / 120°C. Longtime Limit Temperature 75°C

Technische Daten

1. Verfügbarkeit 44 St.
2. Marke INA
3. Item number HK0812-2RS-FPM-DK-B-L178 INA
4. Also known as 0074488561193

5. EAN 4054362387831
6. Category Nadellager

Gewicht und Abmessungen

1. Gewicht (kg) 0.004

Produkteigenschaften

1. Dichtung 2RS – Gummidichtung beidseitig

Angaben von Schaeffler (medias)

1. Grundstatische Tragzahl, radial (C 0r) 2600
2. Begrenzungsdrehzahl (n G) 17700
3. Begrenzungsdrehzahl für Schmierstoffschmierung (n G Fett) 17700
