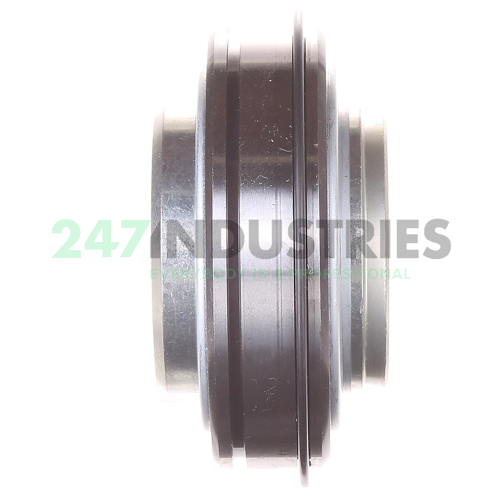

E35-KLL-NR-AH01-OSE INA

Alle Abmessungen

1. Innen (d) mm 35
2. Außen (D) mm 72
3. Breite (B) mm 51,3
4. Innen (d) Zoll 1.378
5. Außen (D) Zoll 2.8346
6. Breite (B) Zoll 2.0197

Suffixbeschreibungen

1. K Conrad (Non-Filling Slot) Type
2. LL Labyrinth Seals On Both Sides (L Type Seal - All Parts Of The L Type Seal Are Zinc Plated On All Sides In Order To Improve Corrosion Protection - No Seal Friction)
3. NR Slot And Snap Ring For Radial Insert Ball Bearings With Cylindrical Outer Ring
4. AH01 Dimensions Can Deviate From Basic Part Number, Internal Clearance Is C3 (Larger Than Normal) and Protected Against Corrosion By Corrotect® Special Coating
5. OSE Bearing Without Locking Element (Eccentric Locking Collar)

Technische Daten

1. Verfügbarkeit 31 St.
2. Marke INA
3. Item number E35-KLL-NR-AH01-OSE INA
4. Also known as 0035605970000

5. EAN 4012802822342
6. Category Spannlager

Gewicht und Abmessungen

1. Gewicht (kg) 0.55

Produkteigenschaften

1. Dichtung 2L - LS-seal at Both Sides
2. Schmierung Standard-Schmierstoff
3. Spezialbehandlung Keine Spezialbehandlung

Angaben von Schaeffler (medias)

1. ECLASS number 23-05-08-02
2. ECLASS2 number 23-05-08-02
