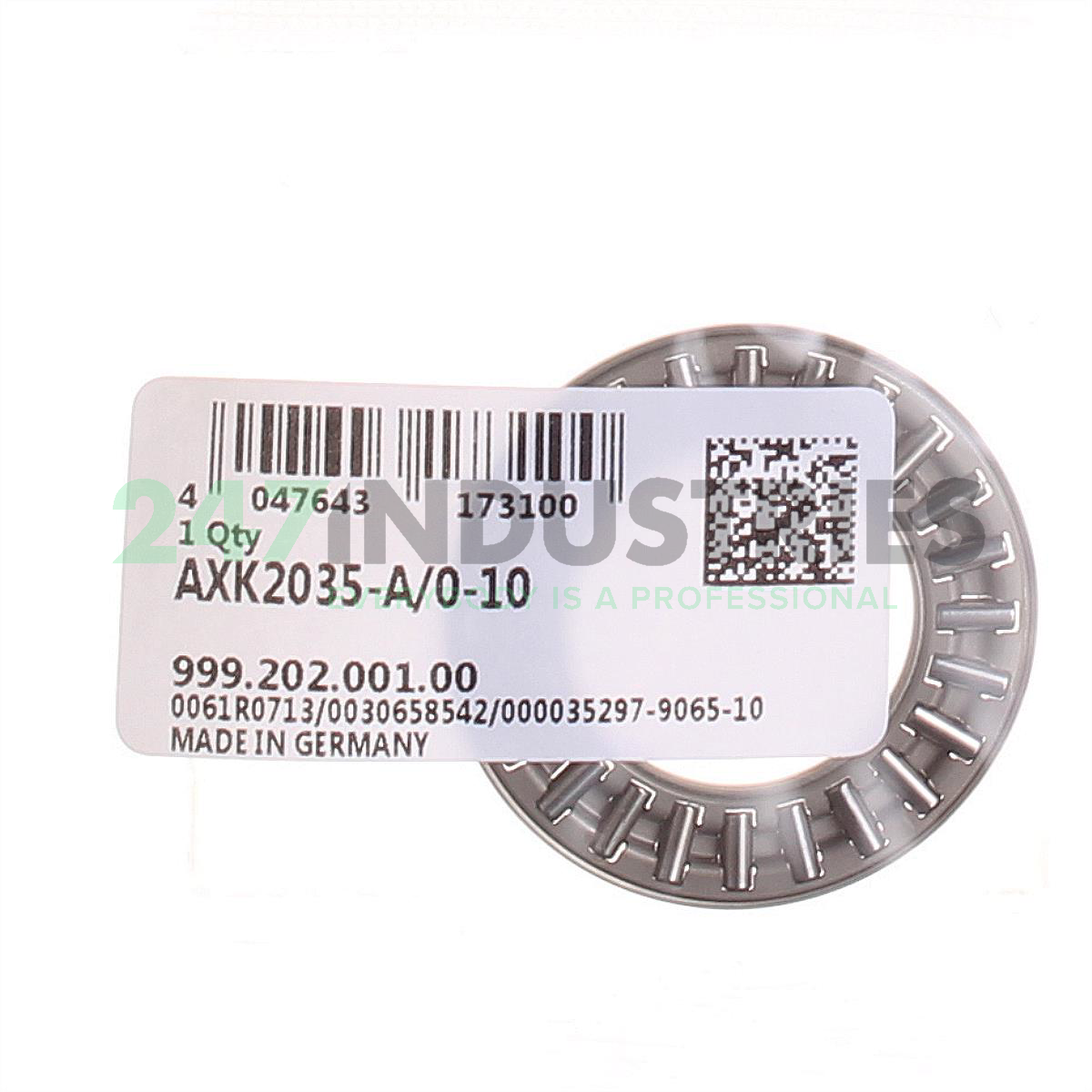

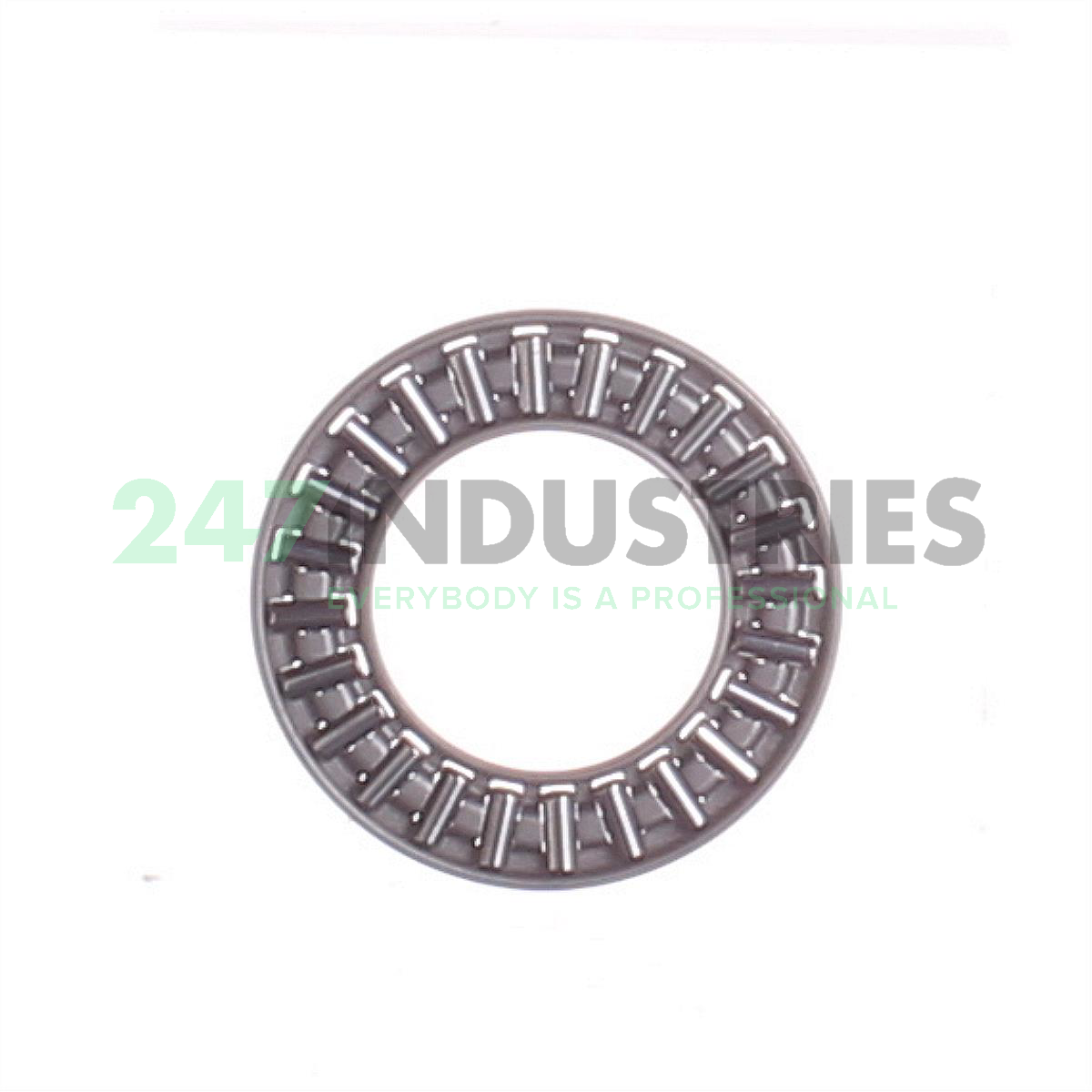

AXK2035-A/0-10 INA

Alle Abmessungen

1. Innen (d) mm 20
2. Außen (D) mm 35
3. Breite (B) mm 2
4. Innen (d) Zoll 0.7874
5. Außen (D) Zoll 1.378
6. Breite (B) Zoll 0.0787
7. Außendurchmesser (D c) mm 35
8. Durchmesser der Wälzkörper (D W) mm 2
9. Laufbahndimension (E a) mm 34
10. Laufbahndimension (E b) mm 22

Suffixbeschreibungen

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. /0-10 Micron - Needle Sort

Technische Daten

1. Verfügbarkeit 0 St.
2. Marke INA
3. Item number AXK2035-A/0-10 INA
4. Also known as 0000352979065

5. EAN 4047643173100
6. Category Axial-Nadelkränze

Gewicht und Abmessungen

1. Gewicht (kg) 0.0056

Angaben von Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 46500
2. Axial Dynamic Load Rating Ca (N) 13100
3. Begrenzungsdrehzahl (n G) 10500
4. Referenzdrehzahl (n ϑr) 4350
5. ECLASS number 23-05-11-90
6. ECLASS2 number 23-05-11-90
7. Medias beschreibung Axial-Nadelkränze, einseitig wirkend, nach DIN 5405-2
