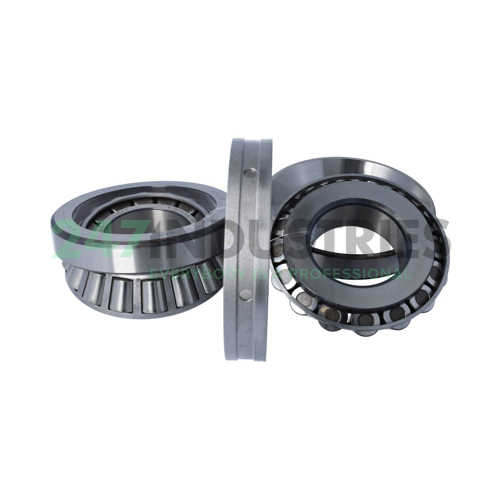

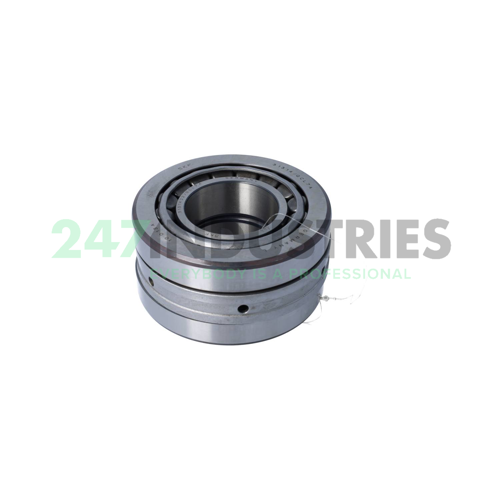

31314J2/QCL7ADF SKF

Alle Abmessungen

1. Innen (d) mm 70
2. Außen (D) mm 150
3. Breite (B) mm 76
4. Innen (d) Zoll 2.7559
5. Außen (D) Zoll 5.9055
6. Breite (B) Zoll 2.9921

Suffixbeschreibungen

1. J2 Pressed Steel Window-Type Cage. A Figure Following The J Indicates A Different Cage Design
2. Q Optimized Contact Geometry And Surface Finish
3. CL7A Standard SKF Quality For Pinion Bearings (Superseded By CL7C) - (100% Interchangeable With Basic Designation)
4. DF Matched Bearing Pair Arranged Face-To-Face. A Figure Combination Immediately Following The DF Identifies The Design Of The Intermediate Ring

Technische Daten

1. Verfügbarkeit 0 St.
2. Marke SKF
3. Item number 31314J2/QCL7ADF SKF
4. Also known as 31314A.A100.140.N11CA
   31314DF
   31314J2/QDF

5. EAN 7316570002690
6. Category Kegelrollenlager einreihig

Gewicht und Abmessungen

1. Gewicht (kg) 6.15

Produkteigenschaften

1. Kegelrolle Paar Luft Innen DF – Standardpaar metrisch X-Anordnung
