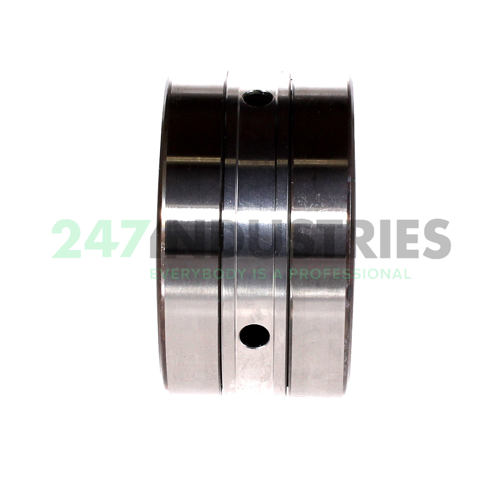

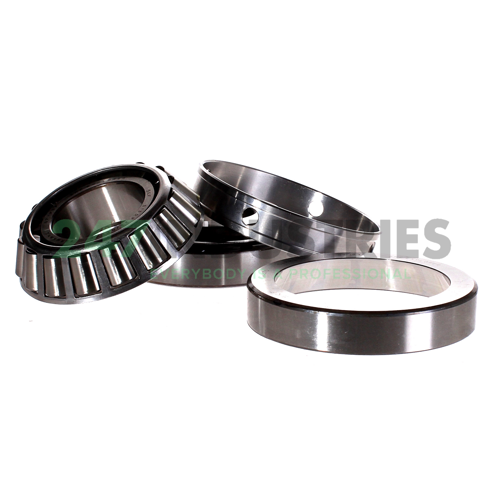

31309J2/QCL7CDF SKF

Alle Abmessungen

1. Innen (d) mm 45
2. Außen (D) mm 100
3. Breite (B) mm 54,5
4. Innen (d) Zoll 1.7717
5. Außen (D) Zoll 3.937
6. Breite (B) Zoll 2.1457

Suffixbeschreibungen

1. J2 Pressed Steel Window-Type Cage. A Figure Following The J Indicates A Different Cage Design
2. Q Optimized Contact Geometry And Surface Finish
3. CL7C High-Performance Design For Pinion Bearing Arrangements
4. DF Matched Bearing Pair Arranged Face-To-Face. A Figure Combination Immediately Following The DF Identifies The Design Of The Intermediate Ring

Technische Daten

1. Verfügbarkeit 0 St.
2. Marke SKF
3. Item number 31309J2/QCL7CDF SKF
4. Also known as 31309A.A60.100.N11CA
   31309-A-N11CA-A60-100

5. EAN 7316571246802
6. Category Kegelrollenlager einreihig

Gewicht und Abmessungen

1. Gewicht (kg) 2

Produkteigenschaften

1. Kegelrolle Paar Luft Innen DF – Standardpaar metrisch X-Anordnung
