| Product |
| Article Number (Market Facing Number) | 1FK7060-5AF71-1FH0 |

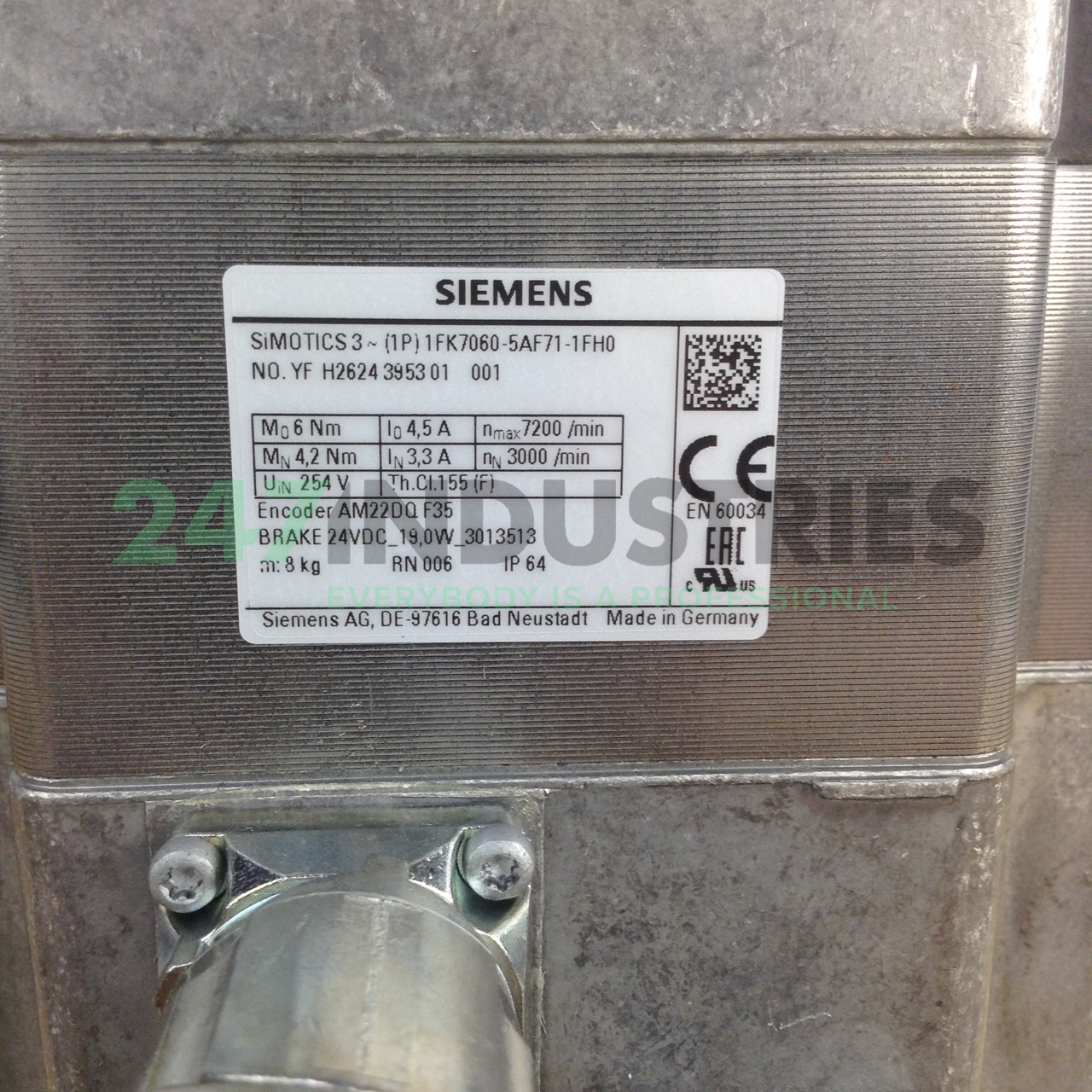

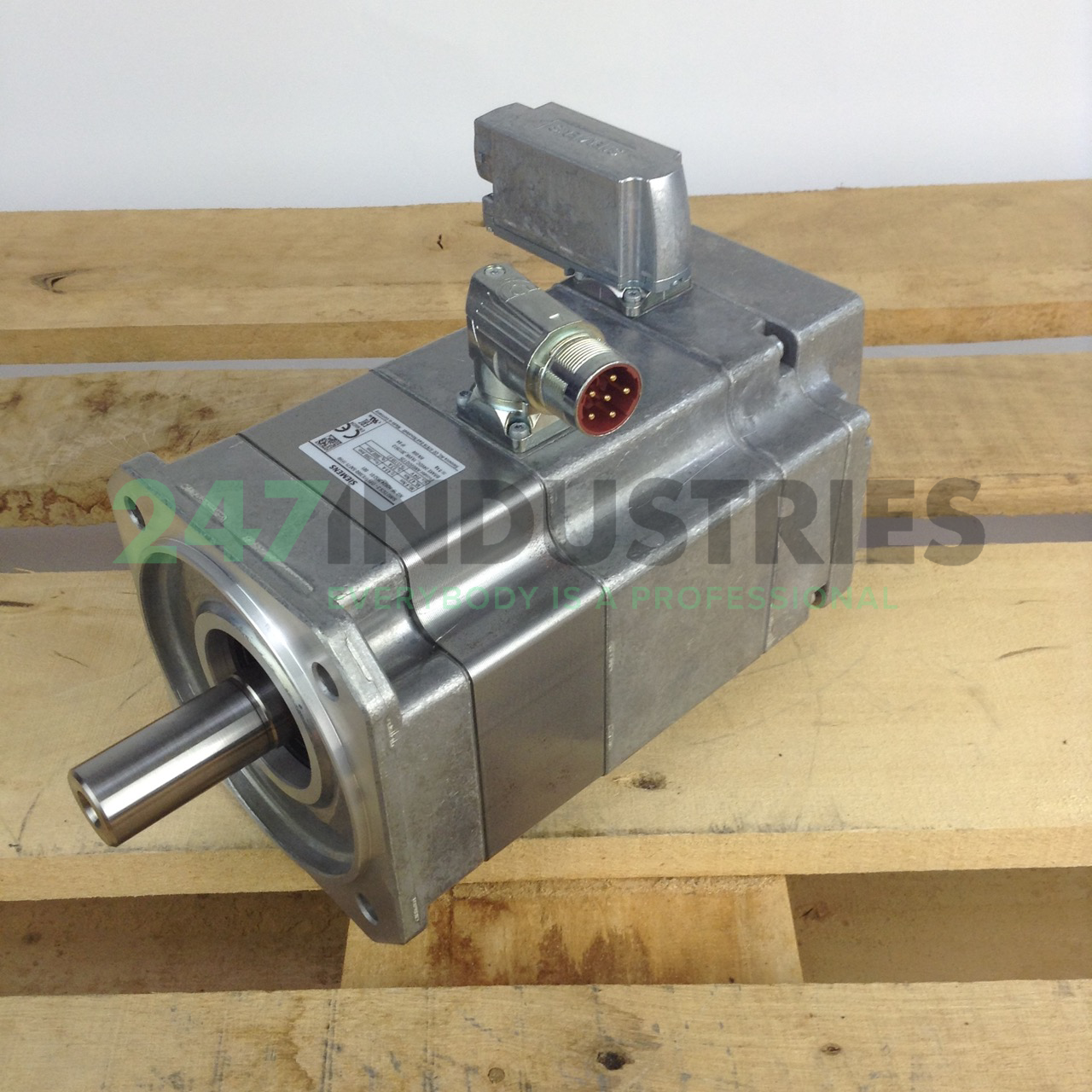

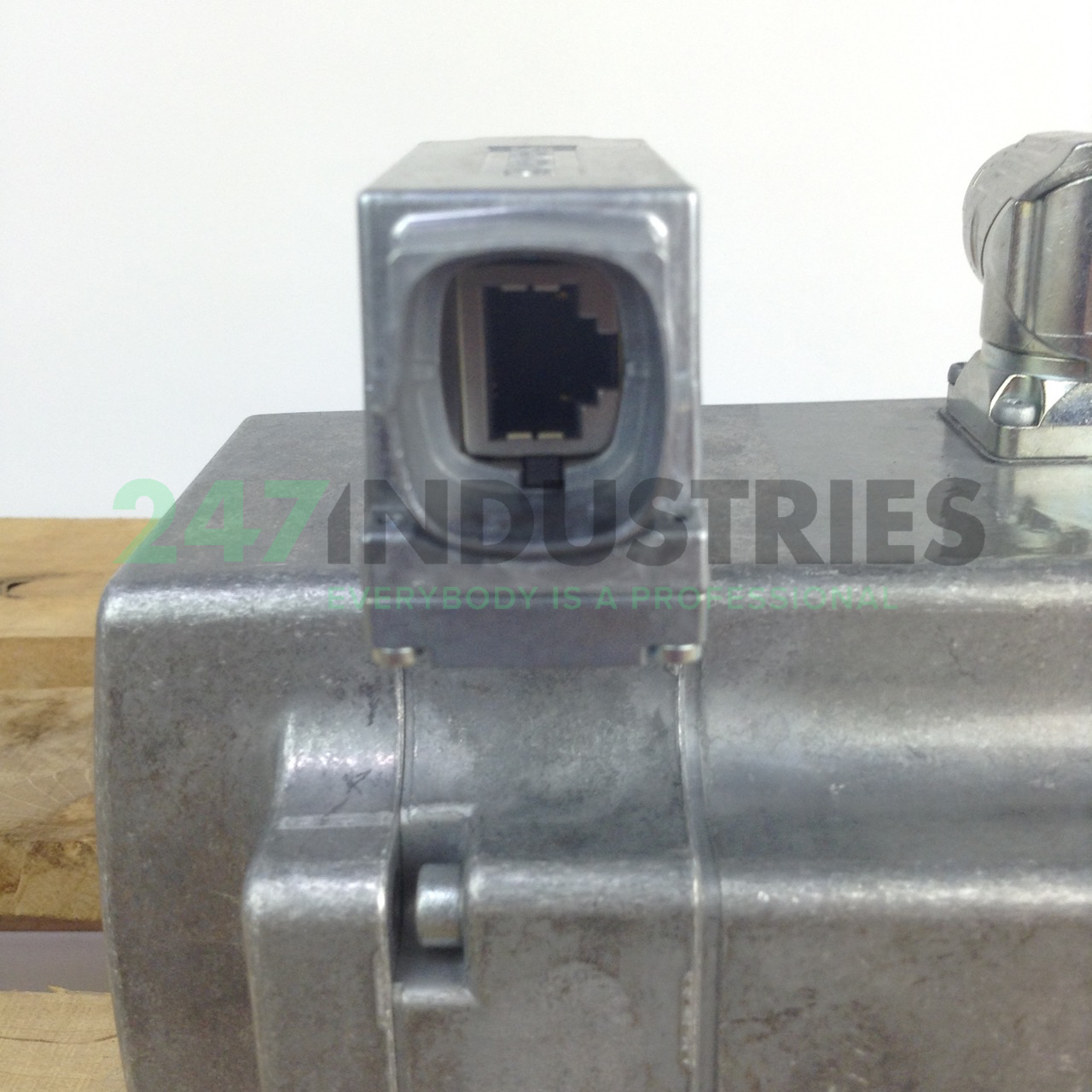

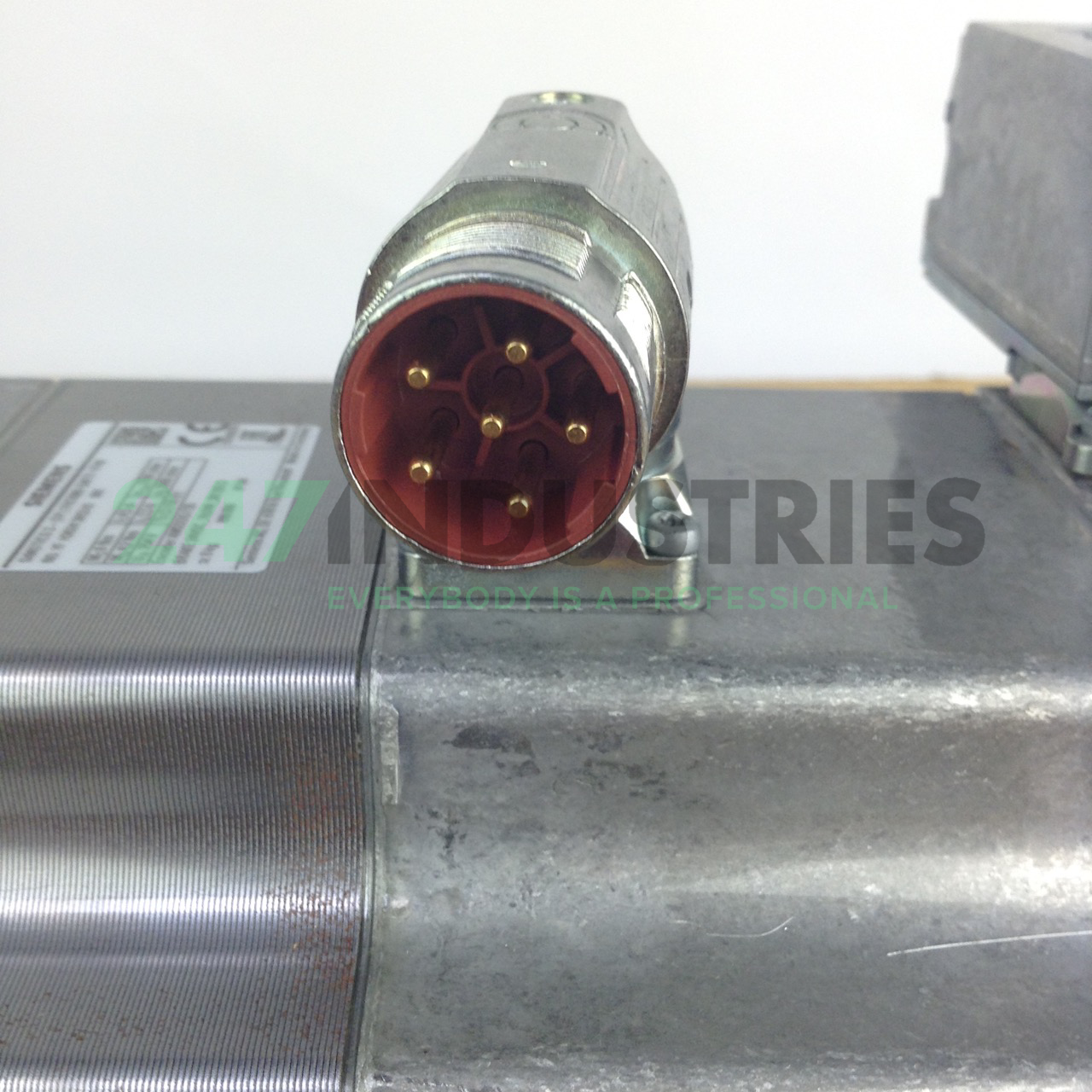

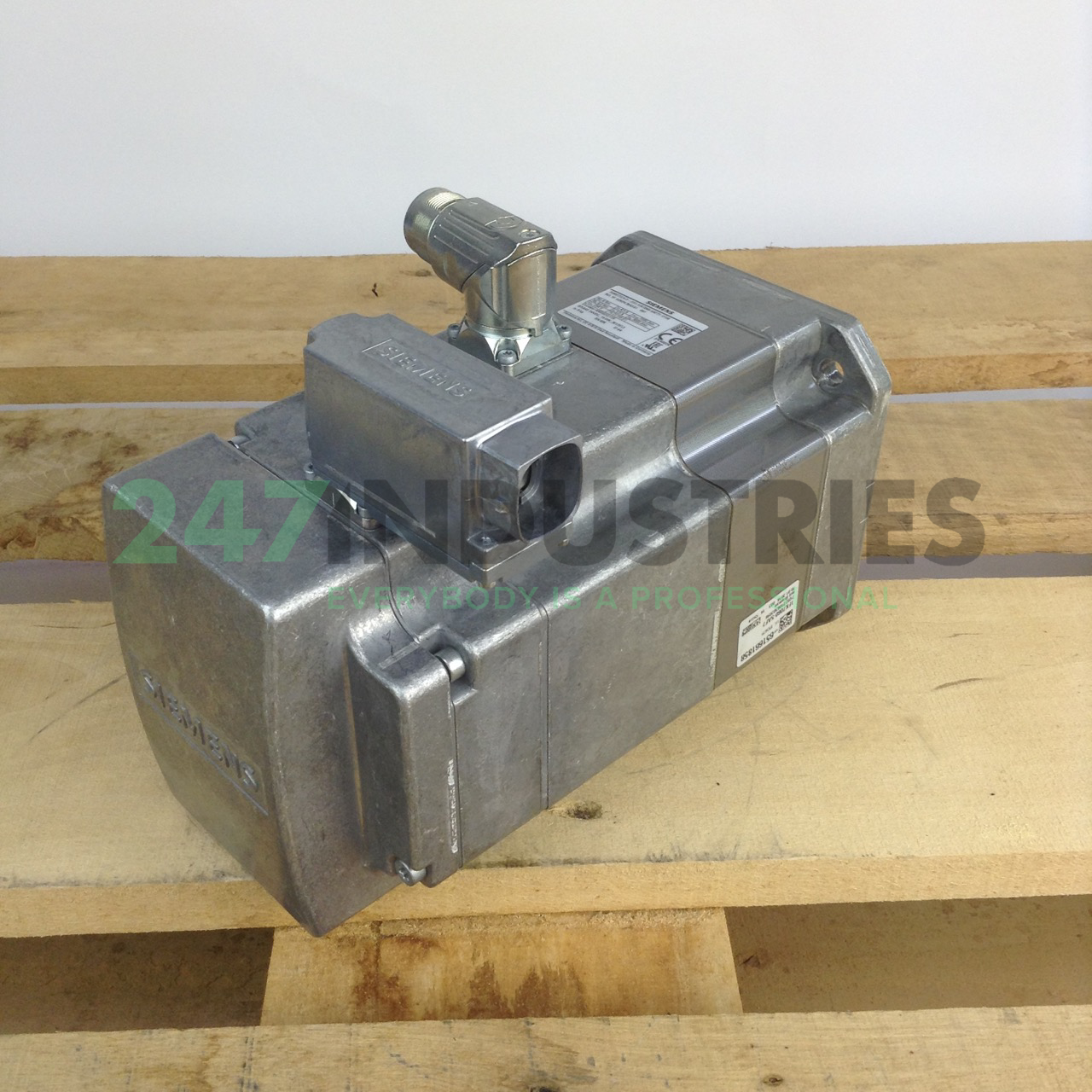

| Product Description | SIMOTICS S SYNCHRONOUS SERVOMOTORS 1FK7 COMPACT 6,0NM, 100K, 3000RPM, 1,48KW NATURAL AIR COOLING, IM B5 (IM V1, IM V3) POWER/SIGNAL CONNECTORS CONN. CAN BE ROTATED BY 270 DEGR., ABSOLUTE ENCODER 2048 P/REV (ENCODER A-2048) WITH DRIVE-CLIQ INTERFACE; PERFORMANCE REDUCTION BY 10% DUE TO ABSOLUTE ENCODER; PLAIN SHAFT, TOLERANCE N; WITH HOLDING BRAKE DEGREE OF PROTECTION IP64 |
| Product family | 1FK7 for SINAMICS S120 |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| PLM Effective Date | Product phase-out since: 01/10/14 |
| Price data |
| Price Group / Headquarter Price Group | L5 / 762 |
| List Price | Show prices |
| Customer Price | Show prices |
| Metal Factor | ------71 |
| Delivery information |
| Export Control Regulations | AL : N / ECCN : N |
| Delivery Time | 30 Day/Days |
| Net Weight (kg) | 8,302 Kg |
| Product Dimensions (W x L x H) | Not available |
| Packaging Dimension | Not available |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | Not available |
| UPC | 662643141498 |
| Commodity Code | 85015220 |
| LKZ_FDB/ CatalogID | SD.NC60KT-1FK7 |
| Product Group | 9620 |
| Country of origin | Germany |
| RoHS Conformity Date | Since: 01/07/06 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Obligation Category for taking back electrical and electronic equipment after use | No obligation to take back electrical and electronic equipment after use |
| Classifications |
| | | | Version | Classification | | eClass | 4 | 27-02-03-XX | | eClass | 5.1 | 27-02-26-02 | | eClass | 6 | 27-02-26-02 | | UNSPSC | 14 | 39-12-20-03 | | UNSPSC | 15 | 26-10-11-09 | |
