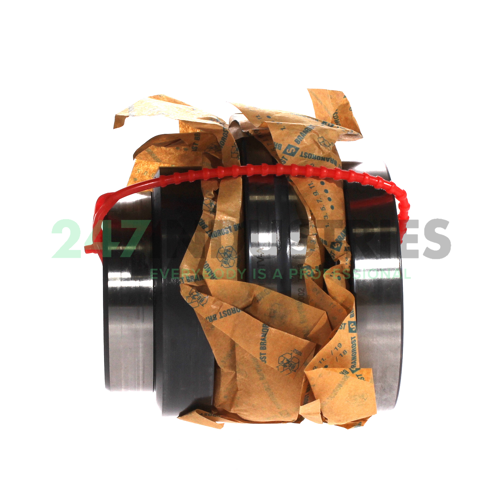

ZARN50110-L-TV-A INA

Afmetingen

1. Binnenmaat (d) mm 50
2. Buitenmaat (D) mm 110
3. Breedte (B) mm 103
4. Binnenmaat (d) inch 1.9685
5. Buitenmaat (D) inch 4.3307
6. Breedte (B) inch 4.0551
7. Hoogte (H) mm 103

Suffix-omschrijving

1. L Long Locating Washers
2. TV Polyamide Cage
3. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technische specificaties

1. Beschikbaarheid 5 stuks
2. Merk INA
3. Item number ZARN50110-L-TV-A INA
4. Also known as 0016831600000

5. EAN 4012802078428
6. Category Naaldlager en toebehoren

Gewicht en afmetingen

1. Gewicht (kg) 3.75

Producteigenschappen

1. Afdichting Geen afdichting

Data van Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 103000
2. Radial Dynamic Load Rating Cr (N) 46500
3. Axial Static Load Rating C0a (N) 480000
4. Axial Dynamic Load Rating Ca (N) 172000
5. Toerentalgrens voor vet smering (n G Vet) 1100
6. Grenstoerental voor oliesmering (n G Olie) 3100
7. ECLASS number 23-05-12-90
8. ECLASS2 number 23-05-12-90
9. Medias omschrijving Needle roller/axial cylindrical roller bearings ZARN..-L, double direction, long shaft locating washer

Downloads en links

1. Link to manufacturer Link to manufacturer
