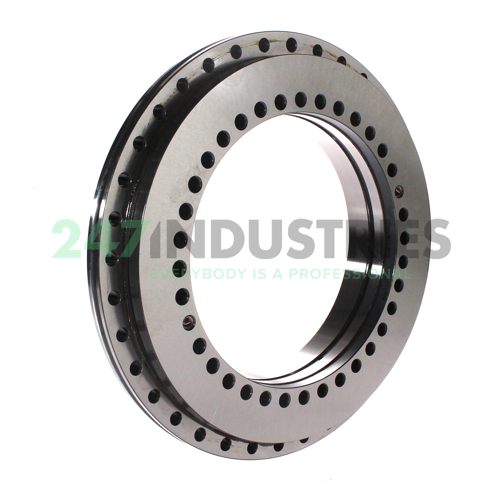

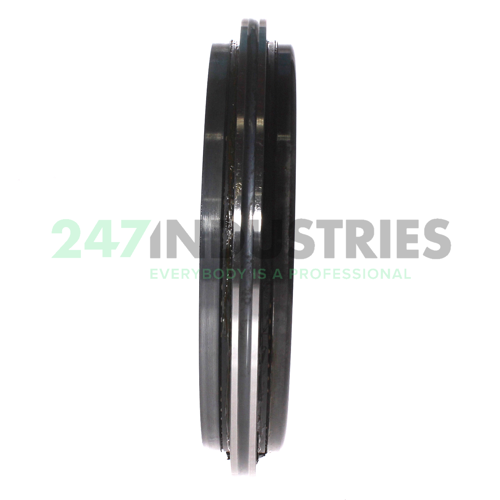

YRTC150-XL INA

Afmetingen

1. Binnenmaat (d) mm 150
2. Buitenmaat (D) mm 240
3. Breedte (B) mm 40
4. Binnenmaat (d) inch 5.9055
5. Buitenmaat (D) inch 9.4488
6. Breedte (B) inch 1.5748
7. Hoogte (H) mm 40

Suffix-omschrijving

1. XL X-Life

Technische specificaties

1. Beschikbaarheid 0 stuks
2. Merk INA
3. Item number YRTC150-XL INA
4. Also known as 0889031330000
   YRT150
   YRTC150

5. EAN 4054371097998
6. Category Special

Gewicht en afmetingen

1. Gewicht (kg) 5.4

Data van Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 146000
2. Radial Dynamic Load Rating Cr (N) 74000
3. Axial Static Load Rating C0a (N) 650000
4. Axial Dynamic Load Rating Ca (N) 128000
5. Grenstoerental (n G) 800
6. ECLASS number 23-05-12-04
7. ECLASS2 number 23-05-12-04
8. Medias omschrijving Axial/radial bearings double direction, screw mounting, with integrated angular measuring system

Downloads en links

1. Download datasheet Download datasheet
2. Link to Manufacturer Link to Manufacturer
3. X-life brochure X-life brochure
