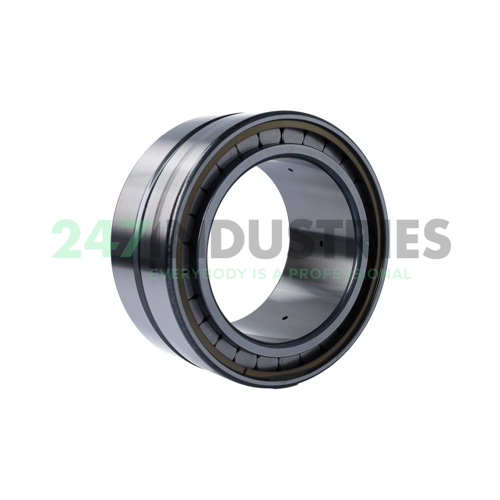

SL185024-A-C3-2S INA

Afmetingen

1. Binnenmaat (d) mm 120,00
2. Buitenmaat (D) mm 180,00
3. Breedte (B) mm 80,00
4. Binnenmaat (d) inch 4.7244
5. Buitenmaat (D) inch 7.0866
6. Breedte (B) inch 3.1496
7. Breedte (b) mm 80,00

Suffix-omschrijving

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. C3 Internal Clearance Larger Than Normal
3. 2S Bearings Matched In Set Of Two For Side-By-Side Mounting, Tolerance Is Matched Based On The Inner, Outer And Clearance Of The Bearing

Technische specificaties

1. Beschikbaarheid 6 stuks
2. Merk INA
3. Item number SL185024-A-C3-2S INA
4. Also known as 0002704150034
   NNCF5024V/C3
   SL185024-A-C3

5. EAN 4054365600906
6. Category Tweerijig cilinderrollager

Gewicht en afmetingen

1. Gewicht (kg) 6.77

Producteigenschappen

1. Boring C - cilindrische boring
2. Afdichting Geen afdichting
3. Type kooi FC - volrollig, geen kooi
4. Externe aanpassing Geen Externe Aanpassing
5. Interne radiale speling C3 interne speling (hoger dan Cn)
6. Precisie Set of Two for Side-by-Side
7. Warmtestabilisatie Geen warmtestabilisatie - temperaturen tot 120 °C

Data van Schaeffler (medias)

1. Basis statische radiale belasting (C 0r) "850000.0000"
2. Grenstoerental (n G) "2160.0000"
3. Referentiesnelheid (n ϑr) "1530.0000"
4. ECLASS number 23-05-09-01
5. ECLASS2 number 23-05-09-01
