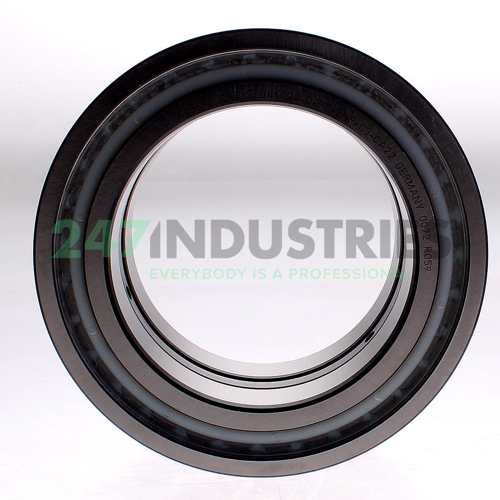

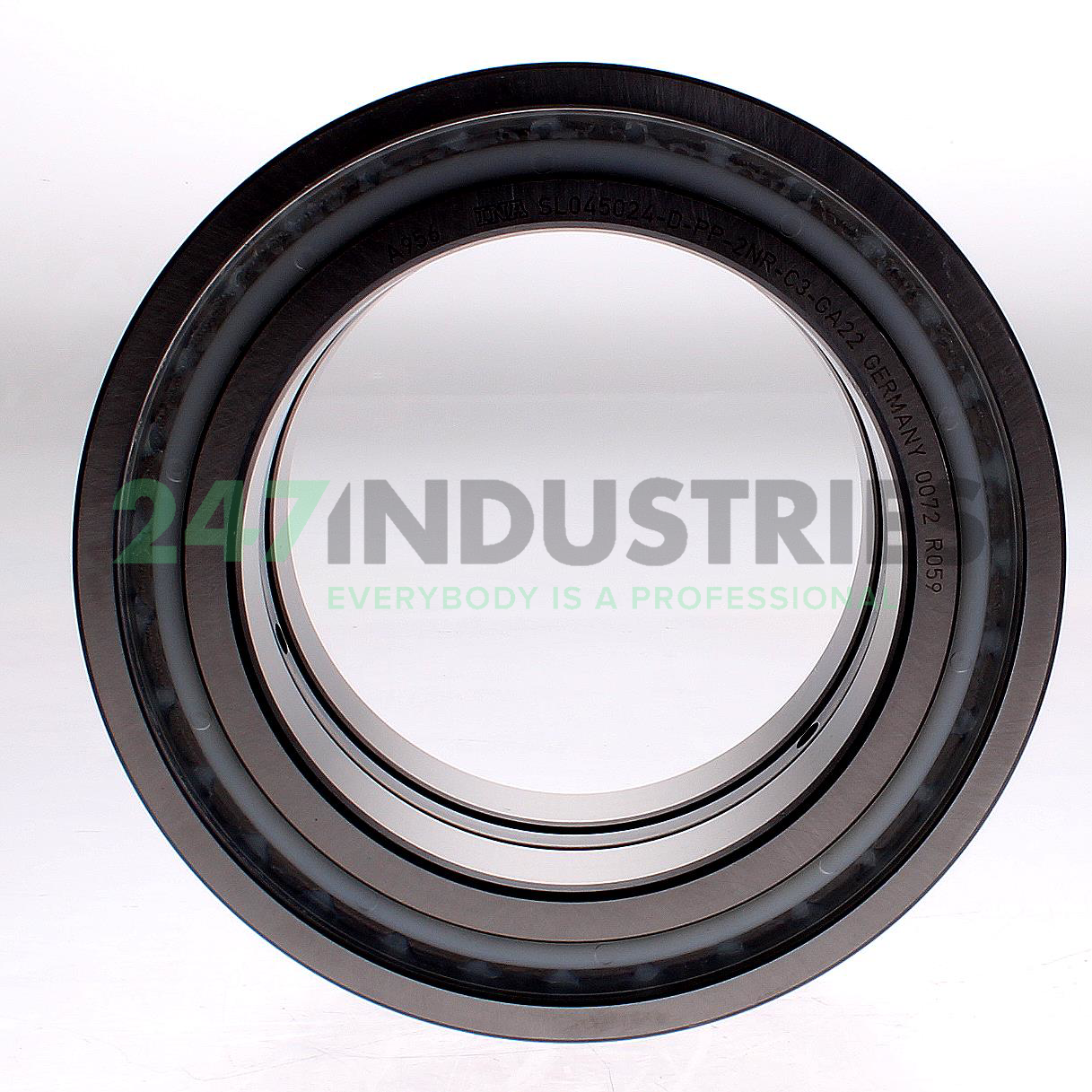

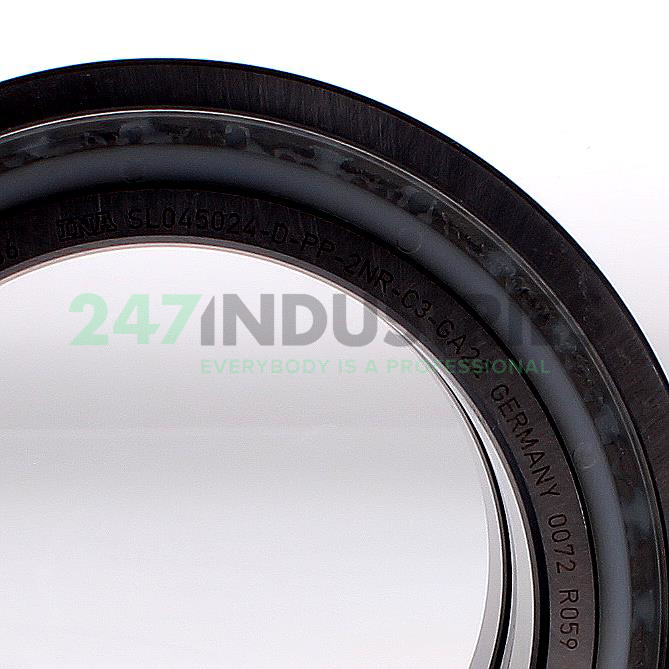

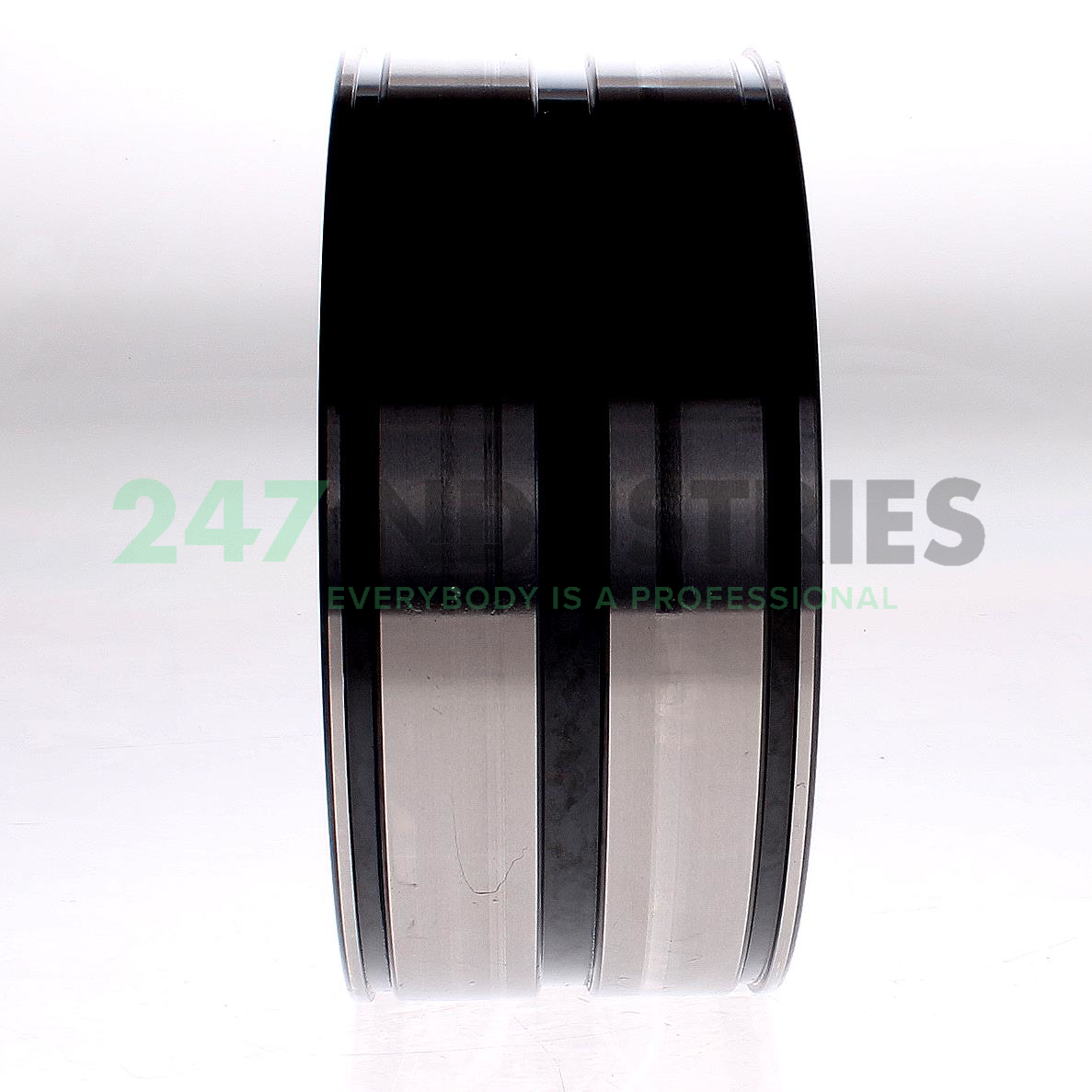

SL045024-D-PP-2NR-C3 INA

Afmetingen

1. Binnenmaat (d) mm 120
2. Buitenmaat (D) mm 180
3. Breedte (B) mm 80
4. Binnenmaat (d) inch 4.7244
5. Buitenmaat (D) inch 7.0866
6. Breedte (B) inch 3.1496
7. Breedte (b) mm 80

Suffix-omschrijving

1. D Outer Ring Profile Developed Further, With An Enlarged Load Bearing Area And Optimized Edge Transitions
2. PP Lip Seals On Both Sides Of The Bearing
3. 2NR Supplied With Two Loose-Packed Retaining Rings WRE
4. C3 Internal Clearance Larger Than Normal

Technische specificaties

1. Beschikbaarheid 0 stuks
2. Merk INA
3. Item number SL045024-D-PP-2NR-C3 INA
4. Also known as 0862229100030

5. EAN 4054364892852
6. Category Tweerijig cilinderrollager

Gewicht en afmetingen

1. Gewicht (kg) 7.04

Producteigenschappen

1. Boring C - cilindrische boring
2. Afdichting 2L - LS-seal at Both Sides
3. Type kooi FC - volrollig, geen kooi
4. Externe aanpassing 2R - 2 Snap Rings in O.D.
5. Interne radiale speling C3 interne speling (hoger dan Cn)
6. Precisie Standaardprecisie
7. Warmtestabilisatie Geen warmtestabilisatie - temperaturen tot 120 °C

Data van Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 740000
2. Radial Dynamic Load Rating Cr (N) 410000
3. Toerentalgrens voor vet smering (n G Vet) 1090
4. ECLASS number 23-05-09-01
5. ECLASS2 number 23-05-09-01
6. Medias omschrijving Cylindrical roller bearing SL04..-D-PP-2NR, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04
