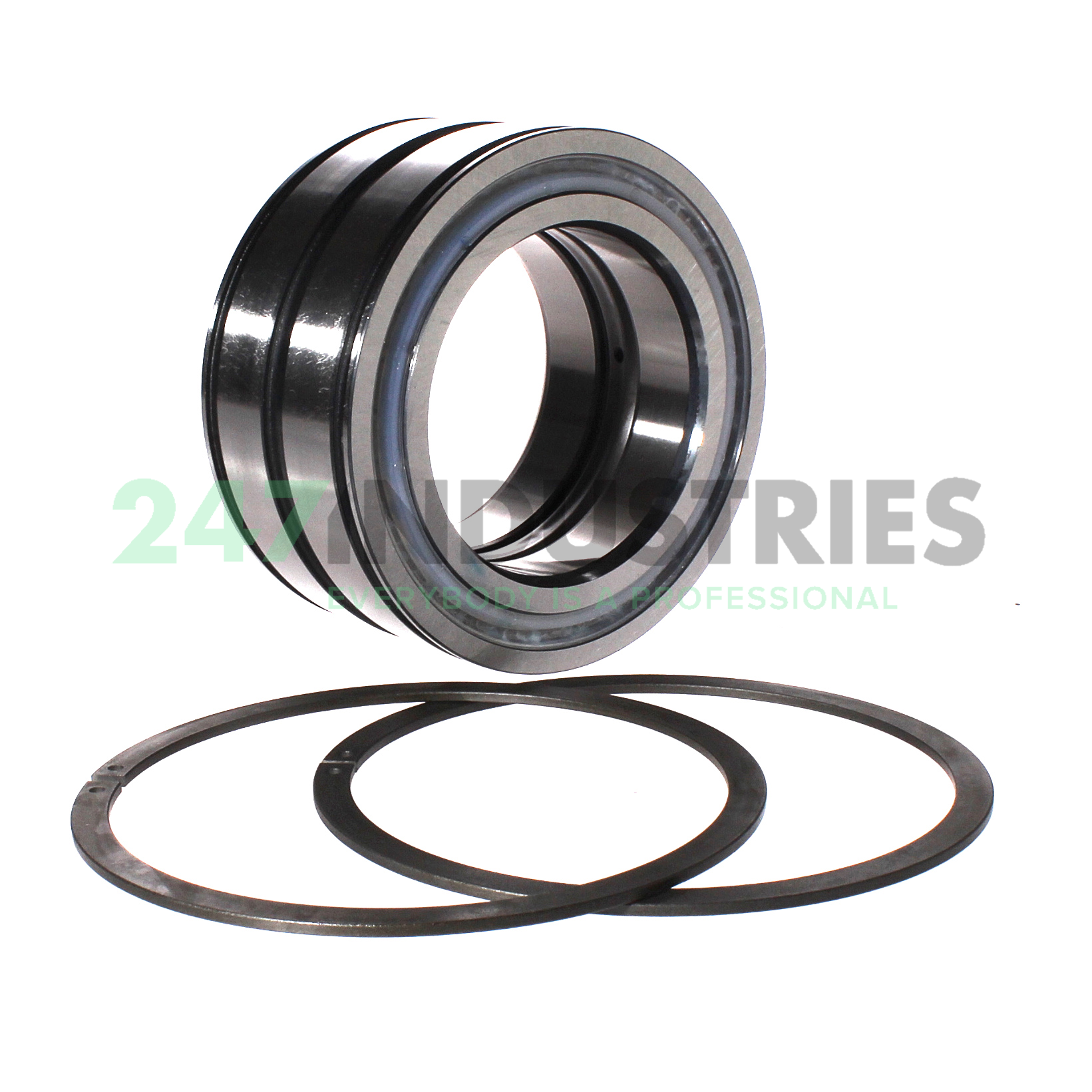

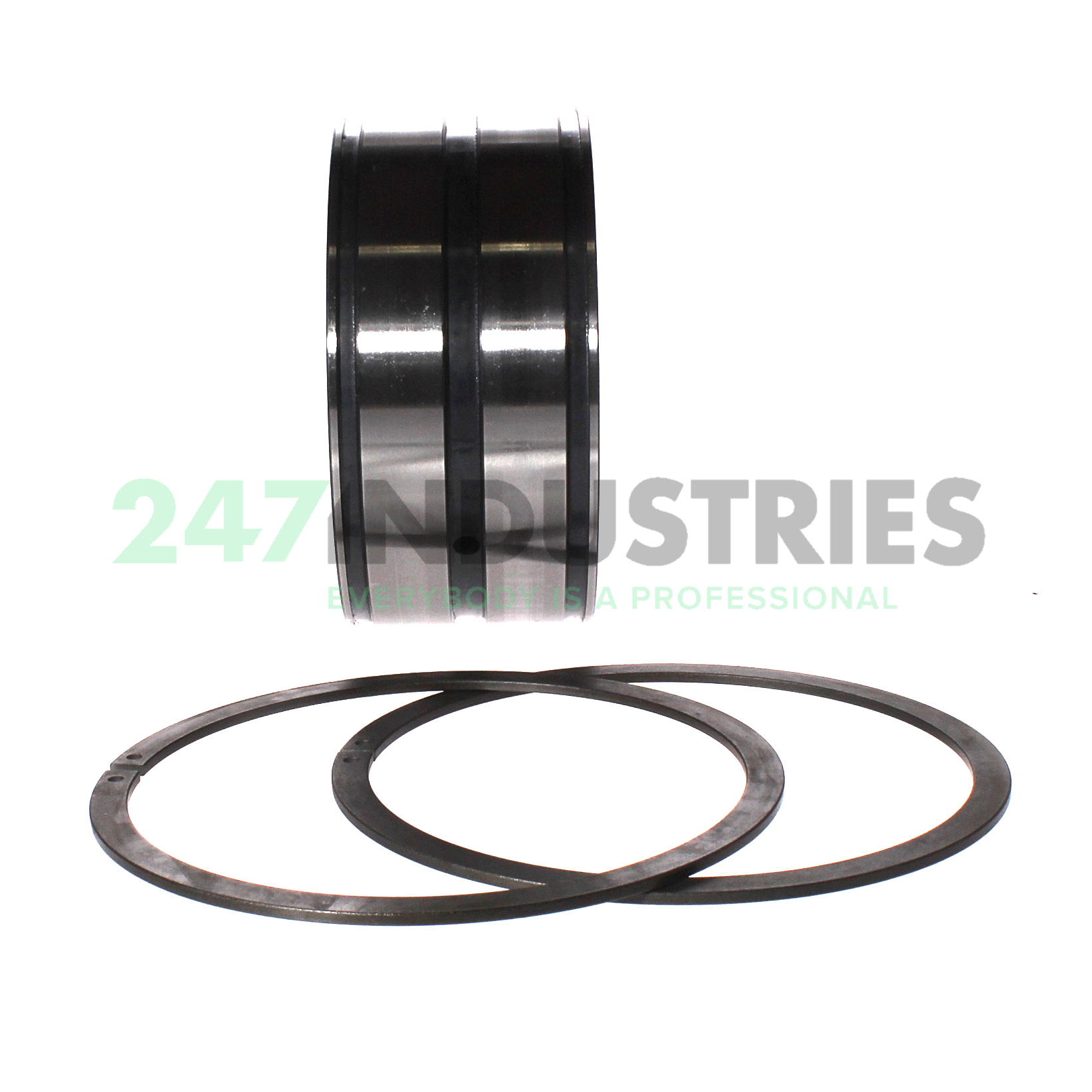

SL045016-D-PP-2NR-C3-GA22 INA

Afmetingen

1. Binnenmaat (d) mm 80,00
2. Buitenmaat (D) mm 125,00
3. Breedte (B) mm 60,00
4. Binnenmaat (d) inch 3.1496
5. Buitenmaat (D) inch 4.9213
6. Breedte (B) inch 2.3622
7. Breedte (b) mm 60,00

Suffix-omschrijving

1. D Outer Ring Profile Developed Further, With An Enlarged Load Bearing Area And Optimized Edge Transitions
2. PP Lip Seals On Both Sides Of The Bearing
3. 2NR Supplied With Two Loose-Packed Retaining Rings WRE
4. C3 Internal Clearance Larger Than Normal
5. GA22 Optimized Grease For All Purposes, Temperature Range Approximately -50 ~ 120°C - Description: Isoflex® LDS 18 Special A)-Is A Dynamically Light Long-Term Grease For Plain And Rolling Bearings. It Consists Of Ester Oil, Mineral Oil And Lithium Soap. The Product Is Resistant To Ageing, Oxidation And Water, And It Protects Reliably Against Corrosion. Application: Isoflex® LDS 18 Special A Is Suitable For Plain And Rolling Bearings Operating At Low Temperatures And/Or High Speeds, For Example In Grinding Spindles, Machine Tool Spindles, Spindle Bearings, Textile Spindles, Bearings In Oe-Spinning Turbines, Bearings In Precision And Optical Equipment

Technische specificaties

1. Beschikbaarheid 24 stuks
2. Merk INA
3. Item number SL045016-D-PP-2NR-C3-GA22 INA
4. Also known as 0898228896500
   SL045016-D-PP-2NR-C3

5. EAN 4054369682212
6. Category Tweerijig cilinderrollager

Gewicht en afmetingen

1. Gewicht (kg) 2.56

Producteigenschappen

1. Boring C - cilindrische boring
2. Afdichting 2L - LS-seal at Both Sides
3. Type kooi FC - volrollig, geen kooi
4. Externe aanpassing 2R - 2 Snap Rings in O.D.
5. Interne radiale speling C3 interne speling (hoger dan Cn)
6. Precisie Grease -50°C / +120°C
7. Warmtestabilisatie Geen warmtestabilisatie - temperaturen tot 120 °C

Data van Schaeffler (medias)

1. Basis statische radiale belasting (C 0r) "340000.0000"
2. Toerentalgrens voor vet smering (n G Vet) "1620.0000"
