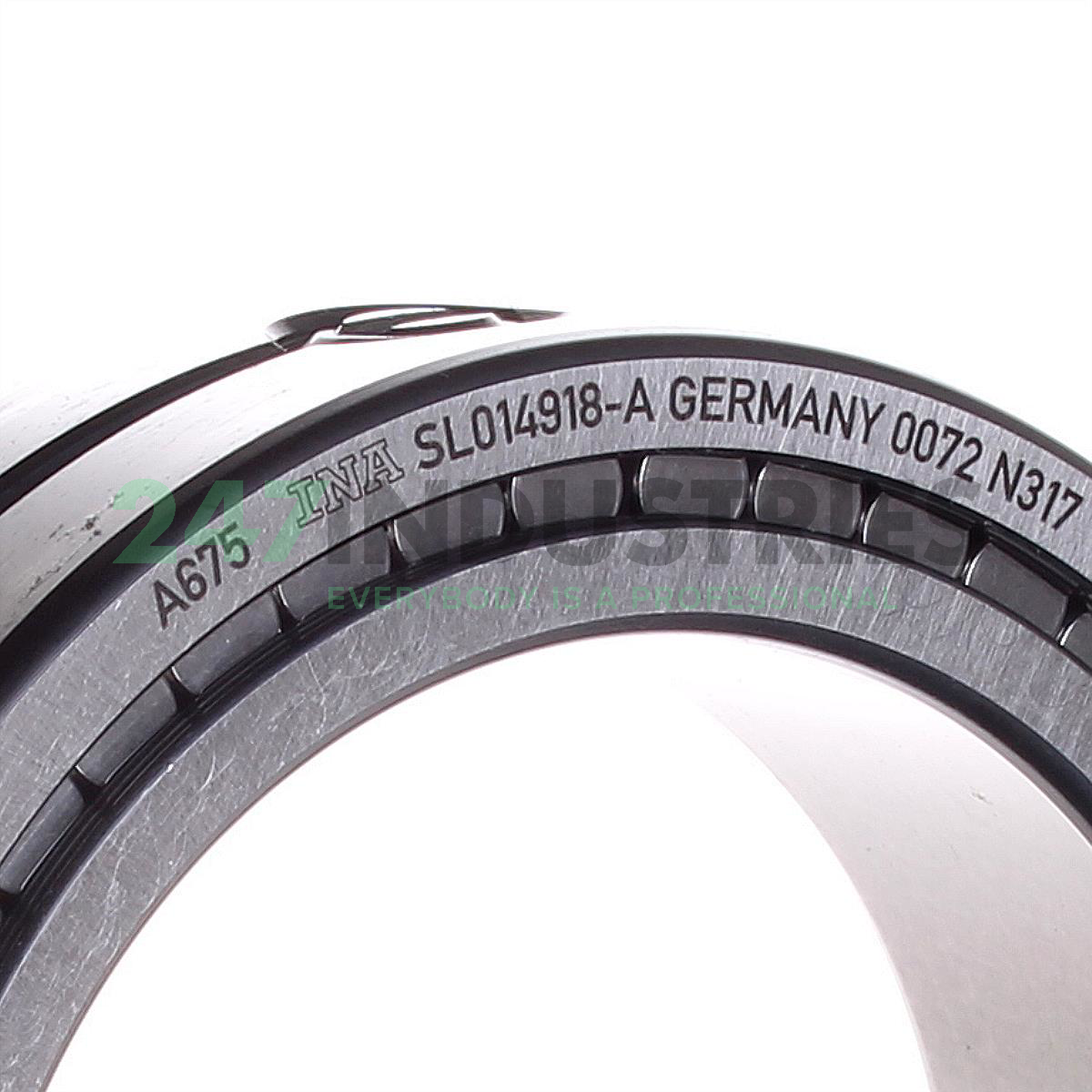

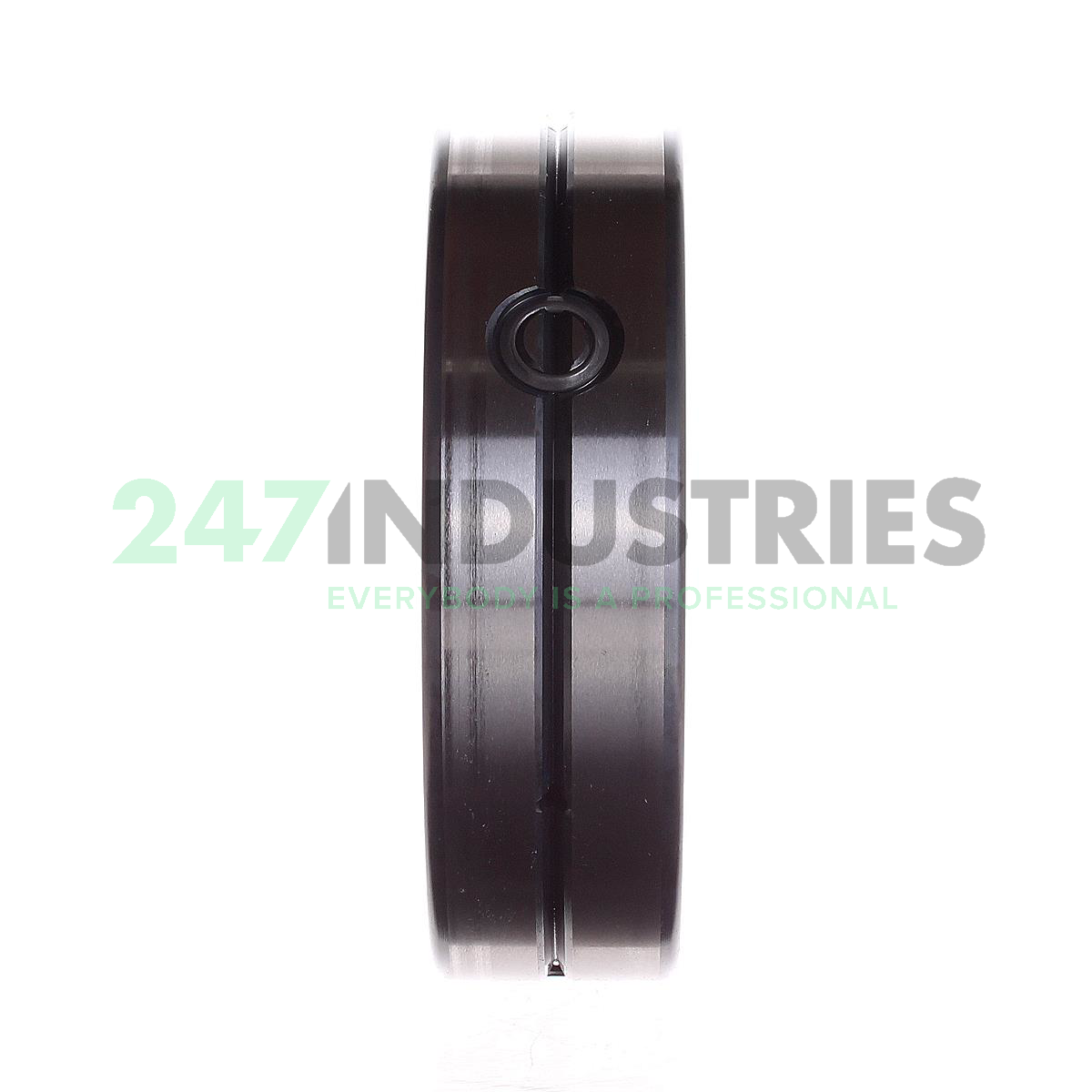

SL014918-A INA

Afmetingen

1. Binnenmaat (d) mm 90,00
2. Buitenmaat (D) mm 125,00
3. Breedte (B) mm 35,00
4. Binnenmaat (d) inch 3.5433
5. Buitenmaat (D) inch 4.9213
6. Breedte (B) inch 1.3780
7. Breedte (b) mm 35,00

Suffix-omschrijving

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technische specificaties

1. Beschikbaarheid 37 stuks
2. Merk INA
3. Item number SL014918-A INA
4. Also known as 0001213040000
   NNC4918V

5. EAN 4054364122768
6. Category Tweerijig cilinderrollager

Gewicht en afmetingen

1. Gewicht (kg) 1.35

Producteigenschappen

1. Boring C - cilindrische boring
2. Afdichting Geen afdichting
3. Type kooi FC - volrollig, geen kooi
4. Externe aanpassing Geen Externe Aanpassing
5. Interne radiale speling Cn normale interne speling
6. Precisie Standaardprecisie
7. Warmtestabilisatie Geen warmtestabilisatie - temperaturen tot 120 °C

Data van Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 290000
2. Radial Dynamic Load Rating Cr (N) 153000
3. Basis statische radiale belasting (C 0r) "290000.0000"
4. Grenstoerental (n G) "3050.0000"
5. Referentiesnelheid (n ϑr) "1870.0000"
6. ECLASS number 23-05-09-01
7. ECLASS2 number 23-05-09-01
8. Medias omschrijving Cylindrical roller bearings SL0149, locating bearing, double row, full complement cylindrical roller set, dimension series 49

Downloads en links

1. Link to manufacturer Link to manufacturer
