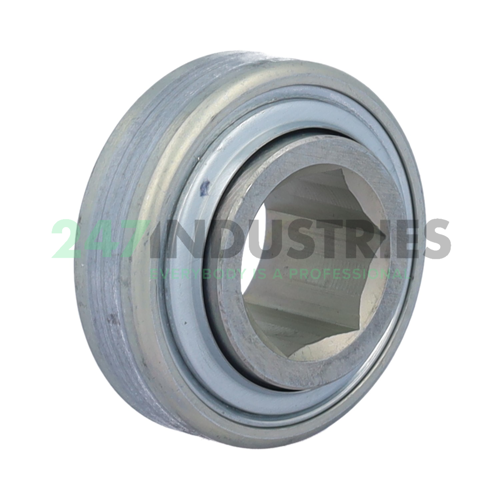

SK014-205-KRR INA

Afmetingen

1. Binnenmaat (d) mm 22,23
2. Buitenmaat (D) mm 52,00
3. Breedte (B) mm 25,40
4. Binnenmaat (d) inch 0.8750
5. Buitenmaat (D) inch 2.0472
6. Breedte (B) inch 1.0000
7. Breedte (b) mm 25,40

Suffix-omschrijving

1. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)

Technische specificaties

1. Beschikbaarheid 35 stuks
2. Merk INA
3. Item number SK014-205-KRR INA
4. Also known as 0504194470000
   1725-7/8H
   205KRR2
   YHC205-014-2LS8W

5. EAN 4054366694614
6. Category Lagers voor behuizingen

Gewicht en afmetingen

1. Gewicht (kg) 0.2

Producteigenschappen

1. Afdichting 2L - LS-seal at Both Sides
2. Smering Standaard smering
3. Speciale behandeling Geen speciale behandeling

Data van Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 7800
2. Radial Dynamic Load Rating Cr (N) 14900
3. Basis statische radiale belasting (C 0r) "7800.0000"
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
6. Medias omschrijving Self-aligning deep groove ball bearings SK..-KRR, Cylindrical outer ring, inner ring with hexagonal bore, R seal on both sides
