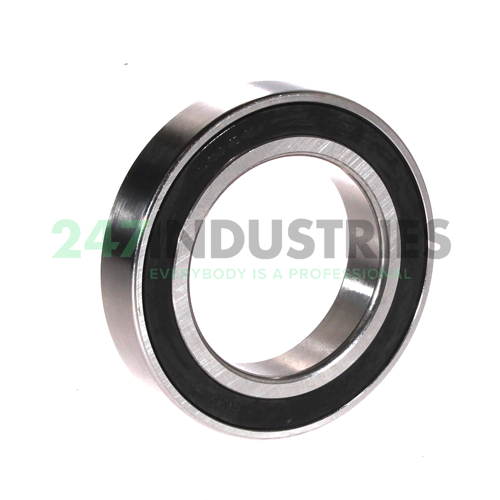

S7010ACEGA/HCP4A SKF

Afmetingen

1. Binnenmaat (d) mm 50,00
2. Buitenmaat (D) mm 80,00
3. Breedte (B) mm 16,00
4. Binnenmaat (d) inch 1.9685
5. Buitenmaat (D) inch 3.1496
6. Breedte (B) inch 0.6299

Suffix-omschrijving

1. ACE 25° Contact Angle And (E) Small Size Balls
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. HC Bearing Or Bearing Components Of Ceramic
4. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technische specificaties

1. Beschikbaarheid 0 stuks
2. Merk SKF
3. Item number S7010ACEGA/HCP4A SKF
4. Also known as 3MMVC9110HX VV SUL
   CZSB110HERRUL
   HCM7010-E-2RSD-T-P4S-UL-X
   HCS7010E.T.P4S.UL
   VEX50/S/NS 7CE3 UL

5. EAN 7316575990435
6. Category Hoekcontactkogellager eenrijig

Gewicht en afmetingen

1. Gewicht (kg) 0.233

Producteigenschappen

1. Afdichting 2RL - Low Friction NBR-seal
2. Type kooi TB - hardvezelkooi
3. Precisie H4 - Hybrid / Ceramic Balls / P4
4. Contacthoek 25° Contact High Speed Design
5. Koppeling G - universele paren
6. Axiale speling / voorspanning GA - Light Preload
7. Smering Standaard smering
