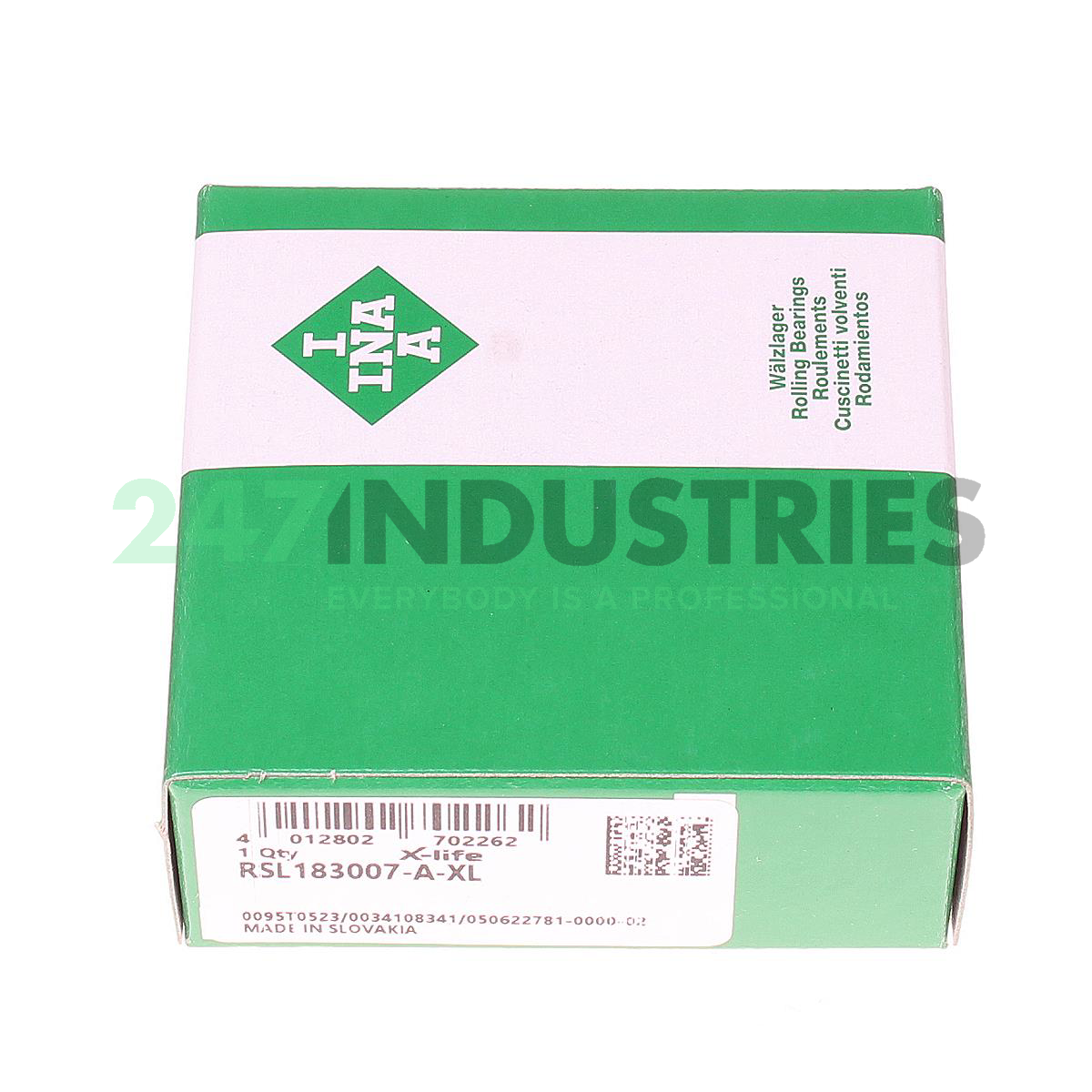

RSL183007-A-XL INA

Afmetingen

1. Binnenmaat (d) mm 35
2. Buitenmaat (D) mm 55,52
3. Breedte (B) mm 20
4. Binnenmaat (d) inch 1.378
5. Buitenmaat (D) inch 2.1858
6. Breedte (B) inch 0.7874
7. E w mm 55,52
8. Breedte (b) mm 20

Suffix-omschrijving

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. XL X-Life

Technische specificaties

1. Beschikbaarheid 0 stuks
2. Merk INA
3. Item number RSL183007-A-XL INA
4. Also known as 0506227810000
   RSL183007-A

5. EAN 4012802702262
6. Category Eenrijig cilinderrollager

Gewicht en afmetingen

1. Gewicht (kg) 0.15

Producteigenschappen

1. Boring C - cilindrische boring
2. Afdichting Geen afdichting
3. Type kooi FC - volrollig, geen kooi
4. Externe aanpassing Geen Externe Aanpassing
5. Interne radiale speling Cn normale interne speling
6. Precisie Standaardprecisie
7. Warmtestabilisatie Geen warmtestabilisatie - temperaturen tot 120 °C

Data van Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 53000
2. Radial Dynamic Load Rating Cr (N) 55000
3. Grenstoerental (n G) 8200
4. ECLASS number 23-05-09-01
5. ECLASS2 number 23-05-09-01
6. Medias omschrijving Cylindrical roller bearing RSL1830..-XL, full complement roller set, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, type RSL18
