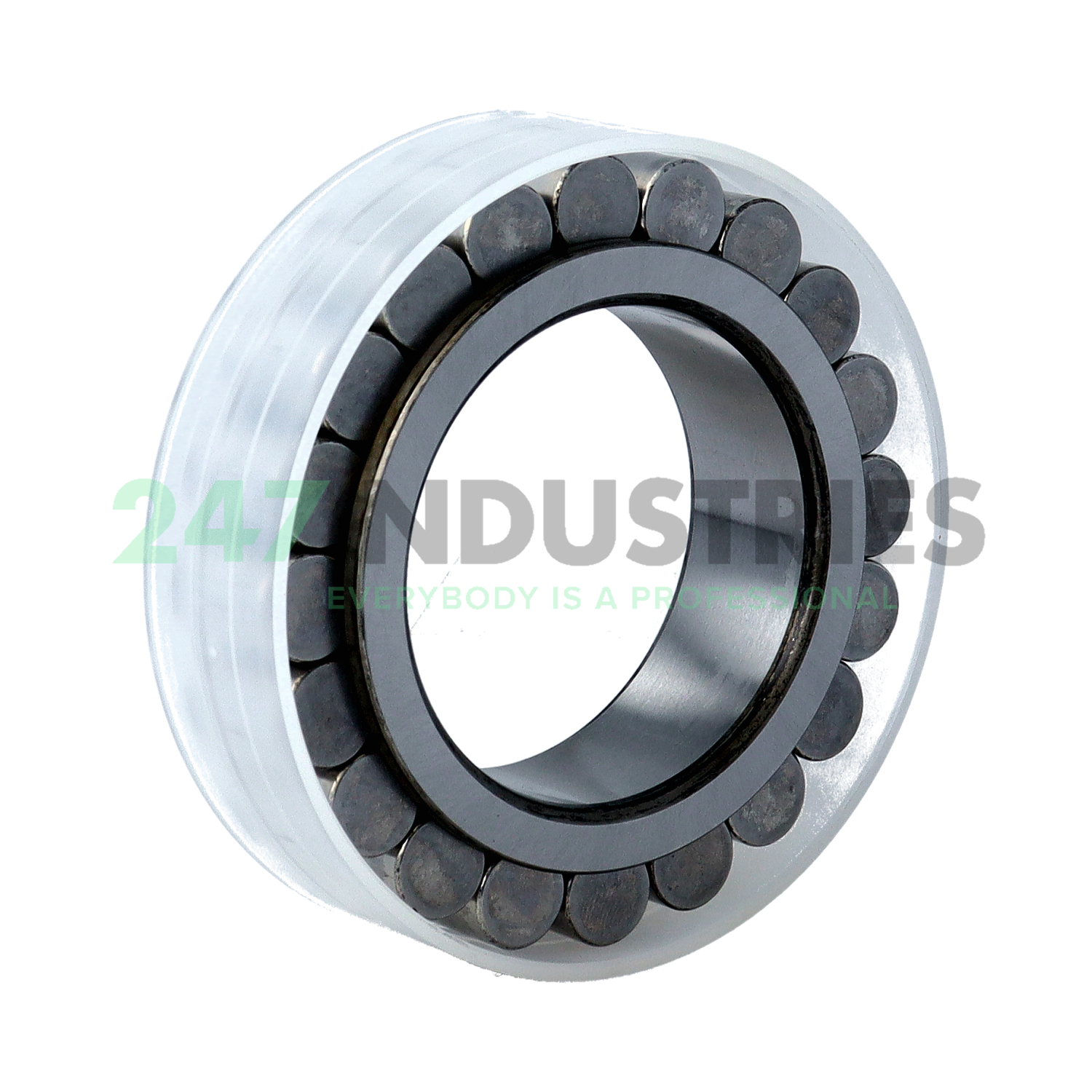

RSL182211-A-XL-2S INA

Afmetingen

1. Binnenmaat (d) mm 55
2. Buitenmaat (D) mm 88,81
3. Breedte (B) mm 25
4. Binnenmaat (d) inch 2.1654
5. Buitenmaat (D) inch 3.4965
6. Breedte (B) inch 0.9843
7. E w mm 88,81
8. Breedte (b) mm 25

Suffix-omschrijving

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. XL X-Life
3. 2S Bearings Matched In Set Of Two For Side-By-Side Mounting, Tolerance Is Matched Based On The Inner, Outer And Clearance Of The Bearing, Order Quantity (pieces) Is 2 For One Set

Technische specificaties

1. Beschikbaarheid 4 stuks
2. Merk INA
3. Item number RSL182211-A-XL-2S INA
4. Also known as 0501954920954
   RSL182211-A-2S

5. EAN 4012802731293
6. Category Eenrijig cilinderrollager

Gewicht en afmetingen

1. Gewicht (kg) 0.528

Producteigenschappen

1. Boring C - cilindrische boring
2. Afdichting Geen afdichting
3. Type kooi FC - volrollig, geen kooi
4. Externe aanpassing Geen Externe Aanpassing
5. Interne radiale speling Cn normale interne speling
6. Precisie Set of Two for Side-by-Side
7. Warmtestabilisatie Geen warmtestabilisatie - temperaturen tot 120 °C

Data van Schaeffler (medias)

1. Basis statische radiale belasting (C 0r) 148000
2. Grenstoerental (n G) 4350
3. ECLASS number 23-05-09-01
4. ECLASS2 number 23-05-09-01
