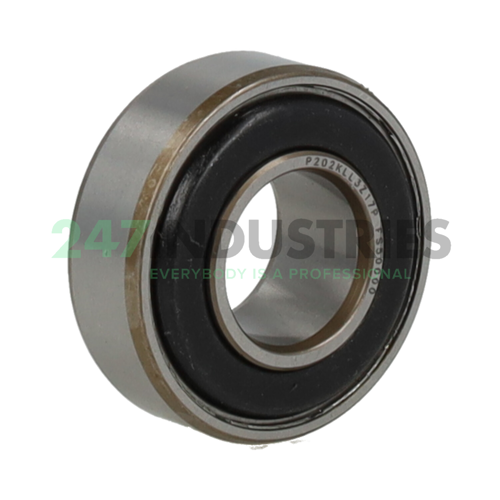

P202KLL3/FS50000 Fafnir

Afmetingen

1. Binnenmaat (d) mm 15,88
2. Buitenmaat (D) mm 34,93
3. Breedte (B) mm 16,6
4. Binnenmaat (d) inch 0.625
5. Buitenmaat (D) inch 1.375
6. Breedte (B) inch 0.6536

Suffix-omschrijving

1. K Conrad (Non-Filling Slot) Type
2. LL Two Mechani-Seals, Interchangeable with RR Series, But Have Non-Contact Labyrinth Seals And Steel Cages For Low Torque, High Speed And Higher Temperature Service. (Up to 350°F/176°C)
3. 3 Different From Standard In One Respect Or Another
4. FS50000 Bearings Which Must Be Manufactured And Inspected With Special Care So That Finished Product Will Be Especially Clean, Smooth And Quiet Running, Sizes 30 Series And S-Series, 200 To 215 Series, 300 To 315 Series And 9100 To 9115 Series

Technische specificaties

1. Beschikbaarheid 1 stuk
2. Merk Fafnir
3. Item number P202KLL3/FS50000 Fafnir
4. Also known as P202KLL3

5. Category Eenrijig groefkogellager

Gewicht en afmetingen

1. Gewicht (kg) 0.045

Producteigenschappen

1. Boring C - cilindrische boring
2. Afdichting 2RU - Two Seals / Non Contact Type
3. Type kooi S - stalen of standaard kooi
4. Externe aanpassing Geen Externe Aanpassing
5. Interne radiale speling Cn normale interne speling
6. Precisie Standaardprecisie
7. Smering Standaard smering
8. Warmtestabilisatie Geen warmtestabilisatie - temperaturen tot 120 °C
9. Speciale behandeling Geen speciale behandeling
