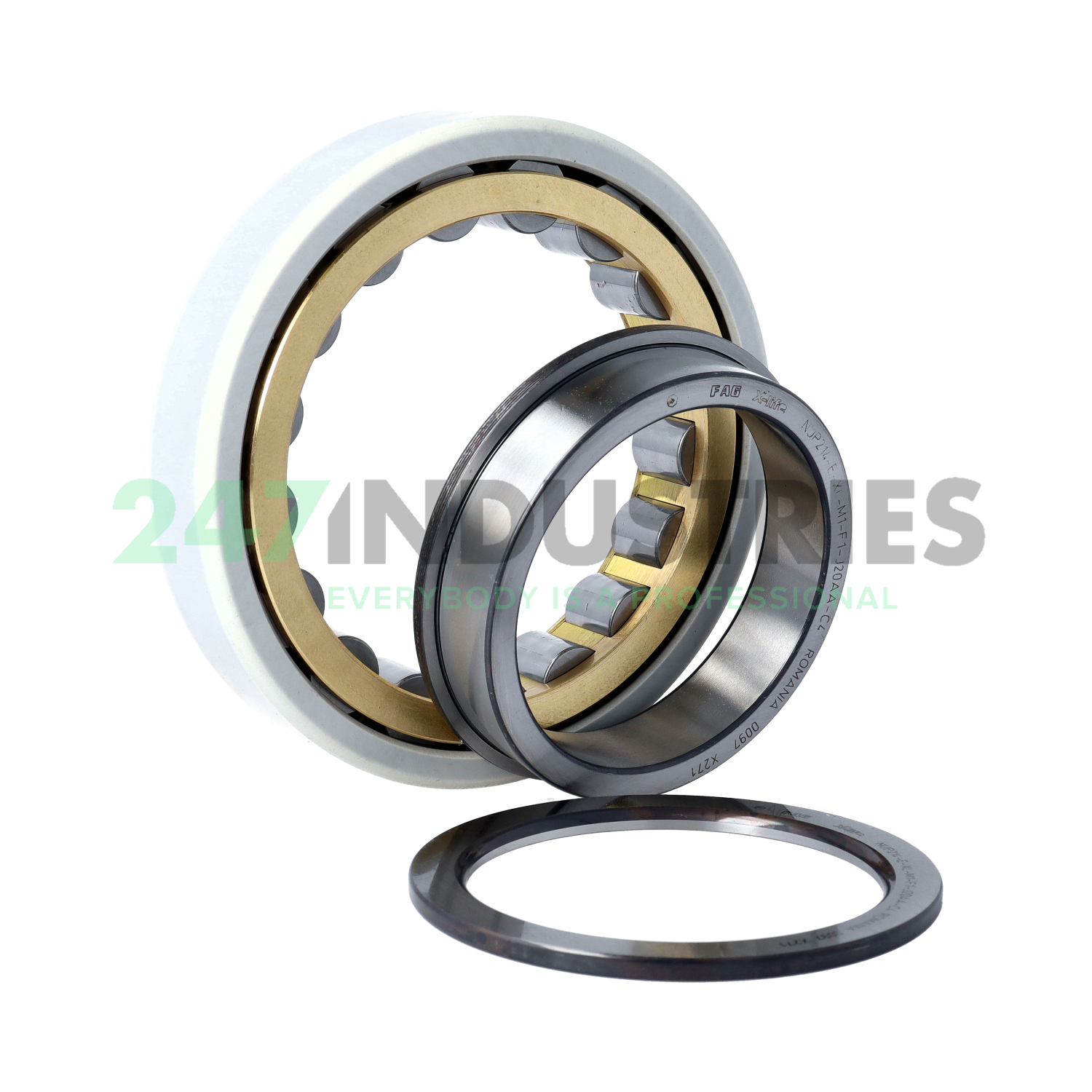

NUP214-E-XL-M1-F1-J20AA-C4 FAG

Afmetingen

1. Binnenmaat (d) mm 70
2. Buitenmaat (D) mm 125
3. Breedte (B) mm 24
4. Binnenmaat (d) inch 2.7559
5. Buitenmaat (D) inch 4.9213
6. Breedte (B) inch 0.9449
7. Breedte (b) mm 24

Suffix-omschrijving

1. E Increased Load Capacity
2. XL X-Life
3. M1 Solid Brass Cage, Two Piece, Roller Guided
4. F1 FAG Manufacturing And Inspection Specification For Cylindrical Roller Bearings In Traction Motors Which Considers, Among Others, The Requirements According To Din 43283 "Cylindrical Roller Bearings For Electric Traction"
5. J20AA Current Insulation, Outer Ring Ceramic Coated, Breakdown Voltage DC: 3.000 V, Layer Thickness 200 μm, Ohmic Resistance: 50 MΩ. Speciality Humid Environments
6. C4 Bearing Internal Clearance Greater Than C3

Technische specificaties

1. Beschikbaarheid 2 stuks
2. Merk FAG
3. Item number NUP214-E-XL-M1-F1-J20AA-C4 FAG
4. Also known as 0390446700040
   NUP214-E-M1-F1-J20AA-C4

5. EAN 4012802009620
6. Category Eenrijig cilinderrollager

Gewicht en afmetingen

1. Gewicht (kg) 1.36

Producteigenschappen

1. Boring C - cilindrische boring
2. Afdichting Geen afdichting
3. Type kooi M - messing kooi
4. Externe aanpassing Geen Externe Aanpassing
5. Interne radiale speling C4 interne speling (hoger dan C3)
6. Precisie Breakdown Voltage 1000v
7. Warmtestabilisatie Geen warmtestabilisatie - temperaturen tot 120 °C

Data van Schaeffler (medias)

1. Basis statische radiale belasting (C 0r) 138000
2. Grenstoerental (n G) 10100
3. Referentiesnelheid (n ϑr) 4650
