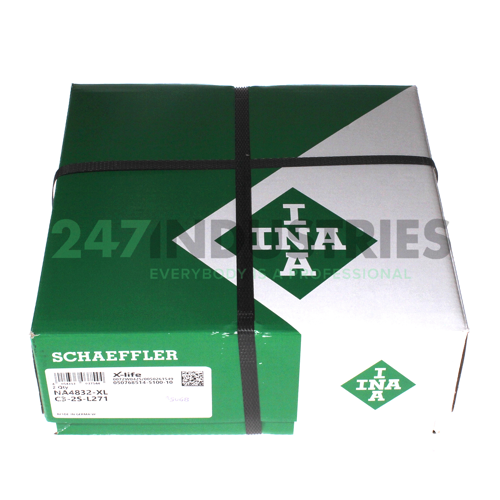

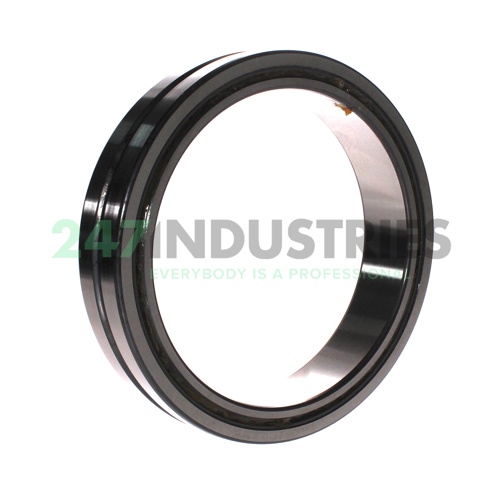

NA4832-XL-C3-2S-L271 INA

Afmetingen

1. Binnenmaat (d) mm 160,00
2. Buitenmaat (D) mm 200,00
3. Breedte (B) mm 40,00
4. Binnenmaat (d) inch 6.2992
5. Buitenmaat (D) inch 7.8740
6. Breedte (B) inch 1.5748
7. Breedte (b) mm 40,00

Suffix-omschrijving

1. XL X-Life
2. C3 Internal Clearance Larger Than Normal
3. 2S If Two Or More Bearings Are Located Adjacent To Each Other In A Planet (2, 3 Or 4 Bearings), These Must Be Ordered Using The Suffix 2S, 3S Or 4S So That They Are Sorted Together
4. L271 Anti Wear Protection Grease

Technische specificaties

1. Beschikbaarheid 2 stuks on 13 mei
2. Merk INA
3. Item number NA4832-XL-C3-2S-L271 INA
4. Also known as 0507685145100
   NA4832-C3-2S-L271

5. EAN 4054363037544
6. Category Naaldlager en toebehoren

Gewicht en afmetingen

1. Gewicht (kg) 2.89

Producteigenschappen

1. Afdichting Geen afdichting

Data van Schaeffler (medias)

1. Basis statische radiale belasting (C 0r) "435000.0000"
2. Grenstoerental (n G) "2700.0000"
3. Referentiesnelheid (n ϑr) "1650.0000"
4. ECLASS number 23-05-09-07
5. ECLASS2 number 23-05-09-07
