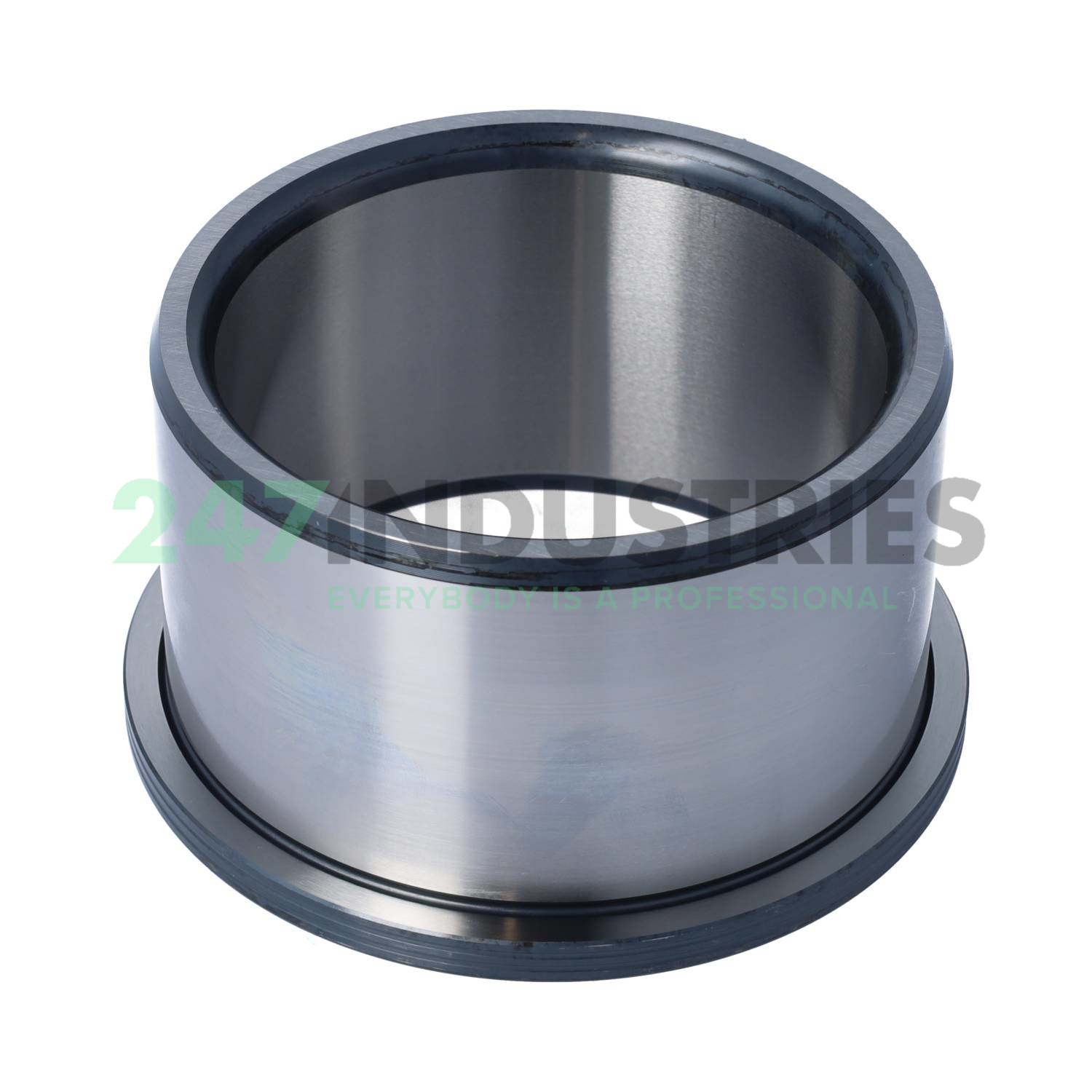

LSL192320-TB-XL INA

Afmetingen

1. Binnenmaat (d) mm 100,00
2. Buitenmaat (D) mm 215,00
3. Breedte (B) mm 73,00
4. Binnenmaat (d) inch 3.9370
5. Buitenmaat (D) inch 8.4646
6. Breedte (B) inch 2.8740

Suffix-omschrijving

1. TB In The Case Of Bearings Of TB Design, The Axial Load Carrying Capacity Of Cylindrical Roller Bearings Was Significantly Improved With The Aid Of New Calculation And Manufacturing Methods. Optimum Contact Conditions Between The Roller And Rib Are Ensured By Means Of A Special Curvature Of The Roller End Faces. As A Result, The Axial Contact Pressures On The Rib Are Significantly Minimised And A Lubricant Film Capable Of Supporting Higher Loads Is Formed. Under Normal Operating Conditions, Wear And Fatigue At The Rib Contact Running And Roller End Faces Is Completely Eliminated. In Addition, Axial Frictional Torque Is Reduced By Up To 50%. The Bearing Temperature During Operation Is Therefore Significantly Lower
2. XL X-Life

Technische specificaties

1. Beschikbaarheid 55 stuks
2. Merk INA
3. Item number LSL192320-TB-XL INA
4. Also known as 0572423210000
   LSL192320-TB
   NJ2320-E-MPAX-ILR
   NJ2320-E-XL-MPAX-ILR

5. EAN 4054363034314
6. Category Eenrijig cilinderrollager

Gewicht en afmetingen

1. Gewicht (kg) 12.8

Producteigenschappen

1. Boring C - cilindrische boring
2. Afdichting Geen afdichting
3. Type kooi S - stalen of standaard kooi
4. Externe aanpassing Geen Externe Aanpassing
5. Interne radiale speling Cn normale interne speling
6. Precisie Standaardprecisie
7. Warmtestabilisatie Geen warmtestabilisatie - temperaturen tot 120 °C

Data van Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 790000
2. Radial Dynamic Load Rating Cr (N) 750000
3. ECLASS number 23-05-09-01
4. ECLASS2 number 23-05-09-01
5. Medias omschrijving Cylindrical roller bearing, LSL1923 with disc cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, 1 disc cage, type LSL1923
