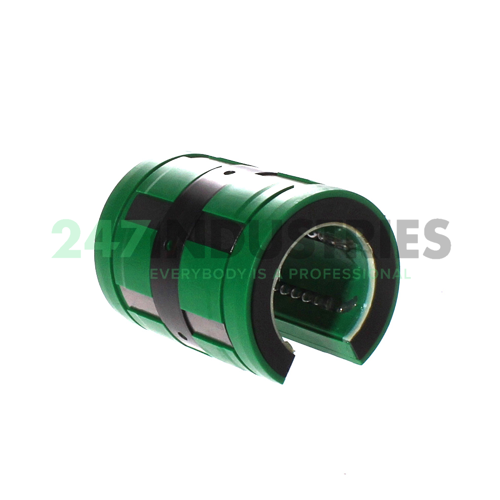

KNO40-B-PP INA

Afmetingen

1. Binnenmaat (d) mm 40
2. Buitenmaat (D) mm 62
3. Breedte (B) mm 80
4. Binnenmaat (d) inch 1.5748
5. Buitenmaat (D) inch 2.4409
6. Breedte (B) inch 3.1496
7. Lengte (L) mm 80

Suffix-omschrijving

1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B
2. PP Lip Seal On Both Sides Of Bearing

Technische specificaties

1. Beschikbaarheid 8 stuks
2. Merk INA
3. Artikelnummer KNO40-B-PP INA
4. Ook bekend als 0244575400000
   KNO4080PP
   LBCF40A-2LS
   LMES40UUOP
   R0671-240-40
   SPM40OPNWW
   TK40UUOP

5. EAN 4047643206815
6. Categorie Lineairkogellager

Gewicht en afmetingen

1. Gewicht (kg) 0.22

Producteigenschappen

1. Afdichting 2L - LS-seal at Both Sides

Data van Schaeffler (medias)

1. Dynamische belastbaarheid stat. (C 0 max) 4350
2. ECLASS number 23-30-03-01
3. ECLASS2 number 23-30-03-01
4. Medias omschrijving Linear ball bearings KNO..-B-PP, Lightweight range, open design, sealed on all sides, with relubrication facility, adjustable angle

Downloads en links

1. Download datasheet Download datasheet
2. Link to Manufacturer Link to Manufacturer
