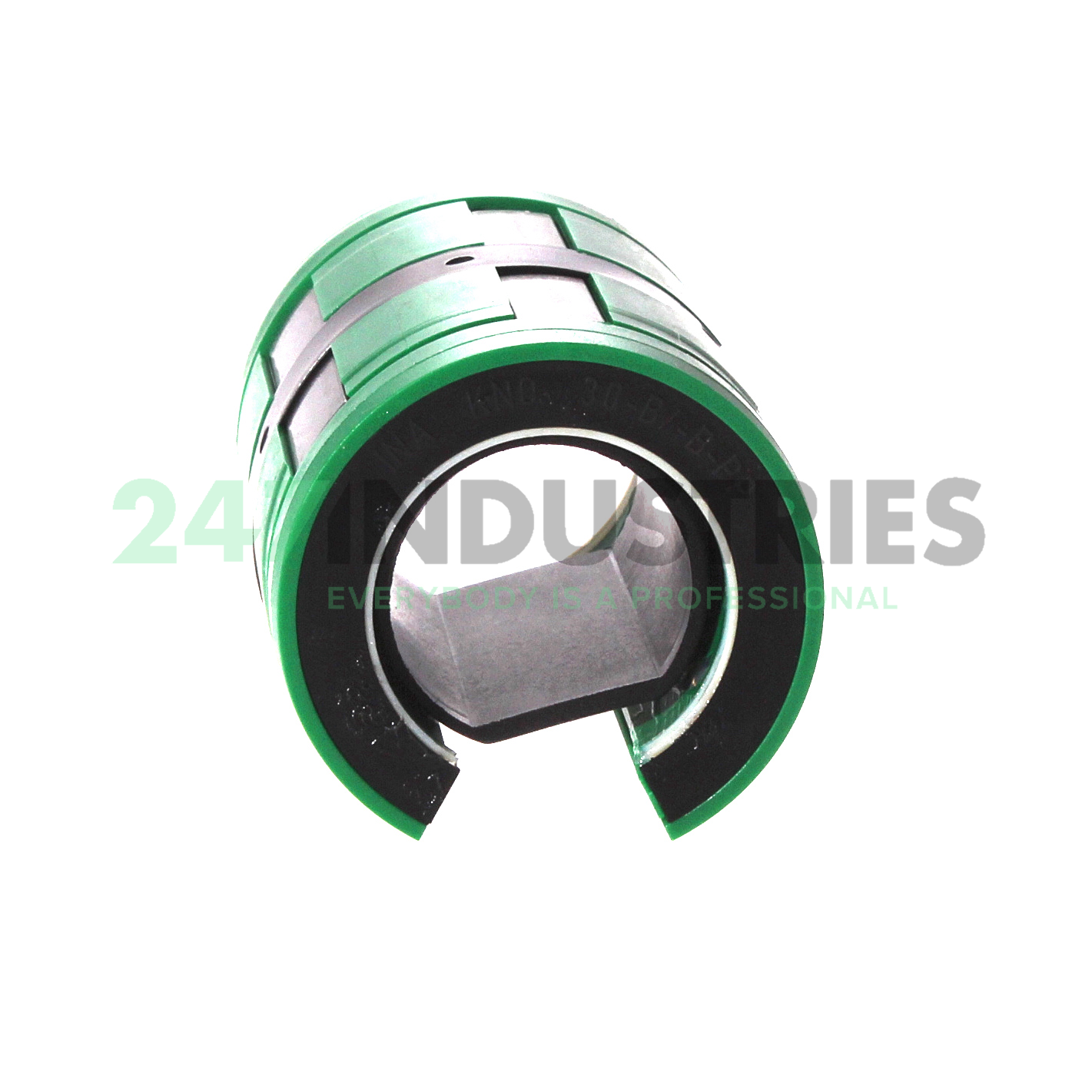

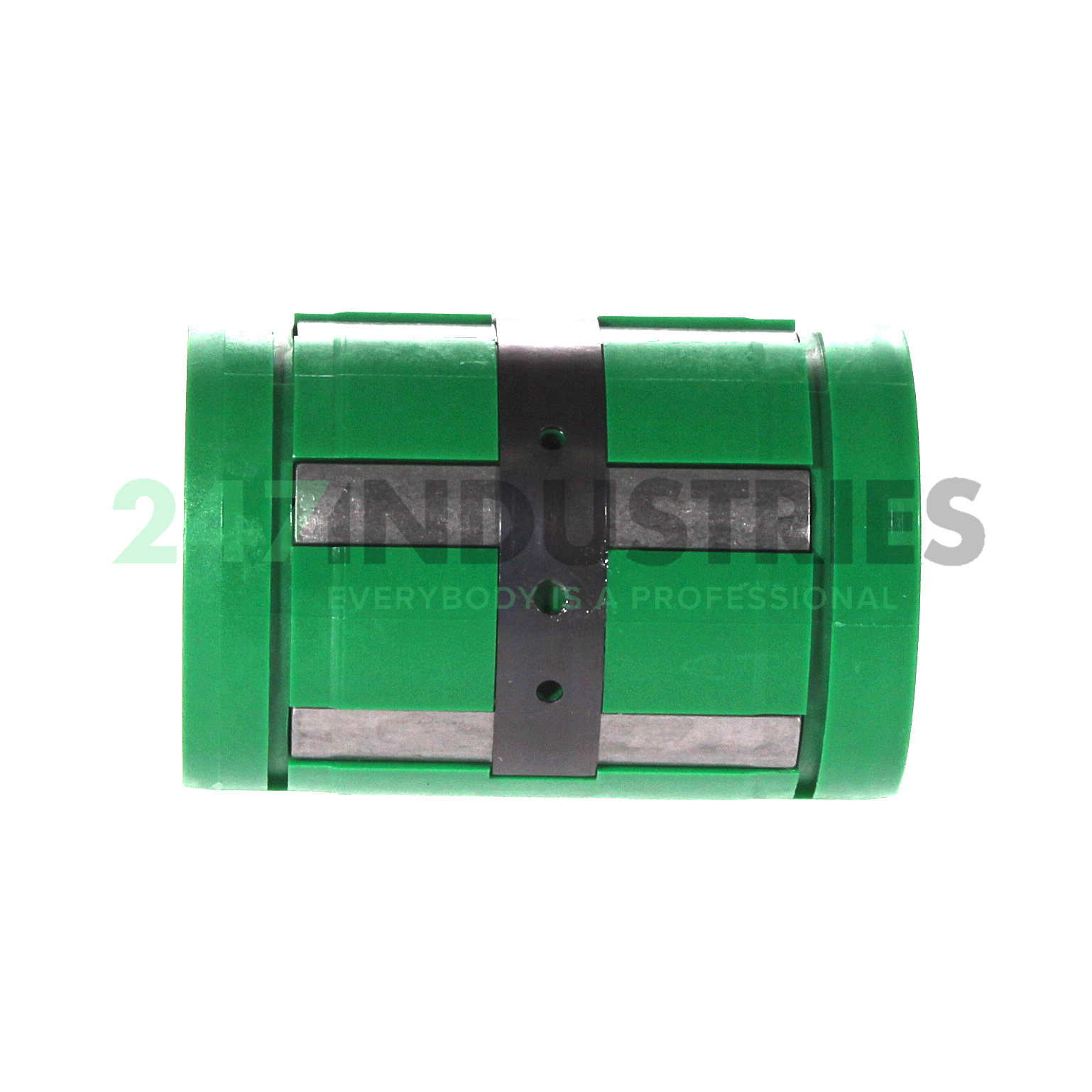

KNO30-B-PP INA

Afmetingen

1. Binnenmaat (d) mm 30
2. Buitenmaat (D) mm 47
3. Breedte (B) mm 68
4. Binnenmaat (d) inch 1.1811
5. Buitenmaat (D) inch 1.8504
6. Breedte (B) inch 2.6772
7. Lengte (L) mm 68

Suffix-omschrijving

1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B
2. PP Lip Seal On Both Sides Of Bearing

Technische specificaties

1. Beschikbaarheid 30 stuks on di 17 jun
2. Merk INA
3. Item number KNO30-B-PP INA
4. Also known as 0244562680000
   KNO3068PP
   LBCF30A-2LS
   LMES30UUOP
   R0671-230-40
   SPM30OPNWW
   TK30UUOP

5. EAN 4012802450989
6. Category Lineairkogellager

Gewicht en afmetingen

1. Gewicht (kg) 0.11

Producteigenschappen

1. Afdichting 2L - LS-seal at Both Sides

Data van Schaeffler (medias)

1. Dynamische belastbaarheid stat. (C 0 max) 2850
2. ECLASS number 23-30-03-01
3. ECLASS2 number 23-30-03-01
4. Medias omschrijving Linear ball bearings KNO..-B-PP, Lightweight range, open design, sealed on all sides, with relubrication facility, adjustable angle

Downloads en links

1. Link to manufacturer Link to manufacturer
