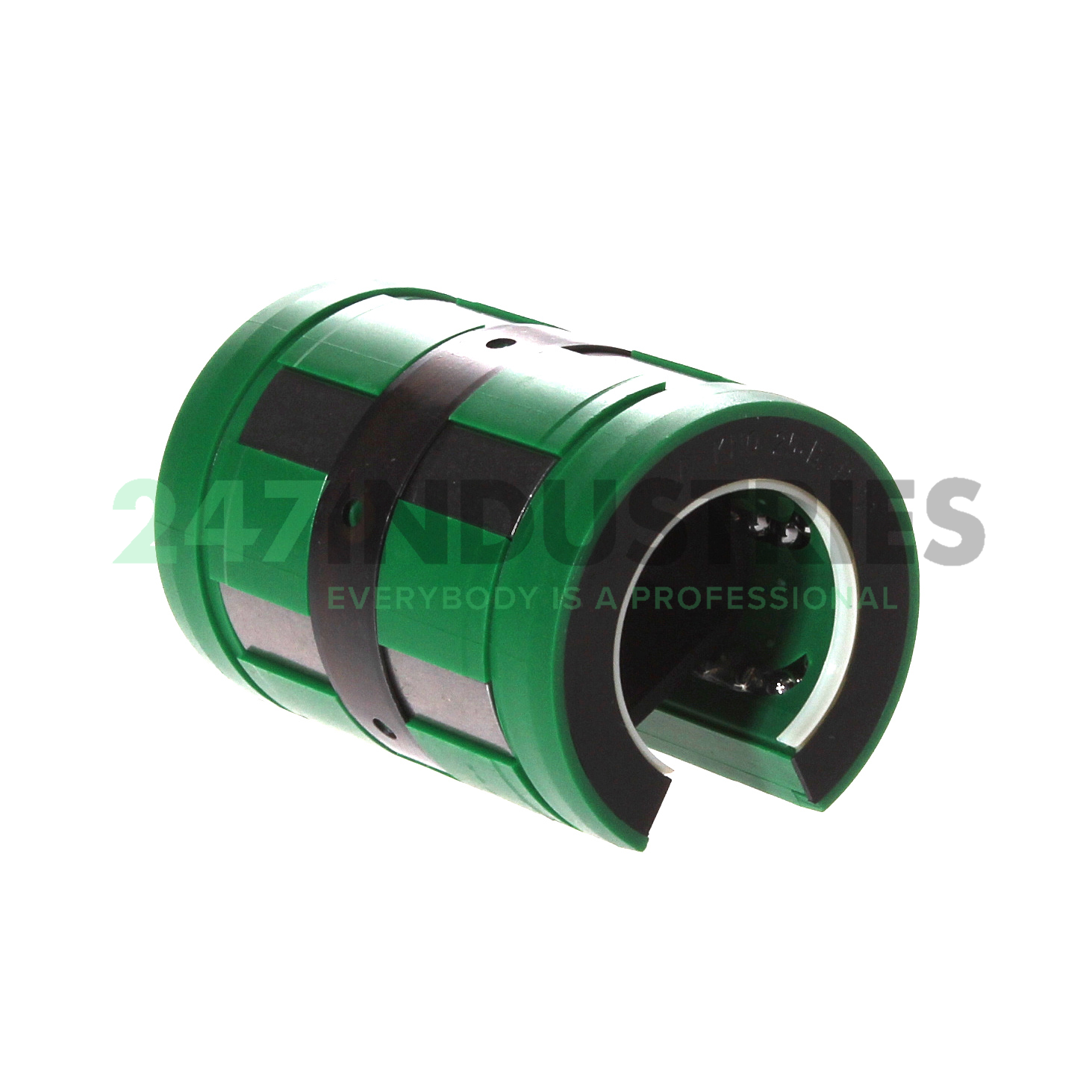

KNO25-B-PP INA

Afmetingen

1. Binnenmaat (d) mm 25
2. Buitenmaat (D) mm 40
3. Breedte (B) mm 58
4. Binnenmaat (d) inch 0.9843
5. Buitenmaat (D) inch 1.5748
6. Breedte (B) inch 2.2835
7. Lengte (L) mm 58

Suffix-omschrijving

1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B
2. PP Lip Seal On Both Sides Of Bearing

Technische specificaties

1. Beschikbaarheid 27 stuks
2. Merk INA
3. Artikelnummer KNO25-B-PP INA
4. Ook bekend als 0173768070000
   KNO2558PP
   LBCF25A-2LS
   LMES25UUOP
   R0671-225-40
   SPM25OPNWW
   TK25UUOP

5. EAN 4012802438826
6. Categorie Lineairkogellager

Gewicht en afmetingen

1. Gewicht (kg) 0.07

Producteigenschappen

1. Afdichting 2L - LS-seal at Both Sides

Data van Schaeffler (medias)

1. Dynamische belastbaarheid stat. (C 0 max) 2260
2. ECLASS number 23-30-03-01
3. ECLASS2 number 23-30-03-01
4. Medias omschrijving Linear ball bearings KNO..-B-PP, Lightweight range, open design, sealed on all sides, with relubrication facility, adjustable angle

Downloads en links

1. Download datasheet Download datasheet
2. Link to Manufacturer Link to Manufacturer
