K81105-TV-A/0-8 INA

Afmetingen

1. Binnenmaat (d) mm 25
2. Buitenmaat (D) mm 42
3. Breedte (B) mm 5
4. Binnenmaat (d) inch 0.9843
5. Buitenmaat (D) inch 1.6535
6. Breedte (B) inch 0.1969
7. Buitendiameter kooi (D c) mm 42

Suffix-omschrijving

1. TN Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding
2. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
3. /0-8 Micron - Needle Sort

Technische specificaties

1. Beschikbaarheid 45 stuks
2. Merk INA
3. Item number K81105-TV-A/0-8 INA
4. Also known as 0014669849064

5. EAN 4047643183970
6. Category Axiale rollenkrans

Gewicht en afmetingen

1. Gewicht (kg) 0.014

Producteigenschappen

1. Type kooi P - kunststof gegoten kooi
2. Precisie Standaardprecisie

Data van Schaeffler (medias)

1. Axial Static Load Rating C0a (N) 76000
2. Axial Dynamic Load Rating Ca (N) 33500
3. Grenstoerental (n G) 8900
4. Referentiesnelheid (n ϑr) 3650
5. ECLASS number 23-05-11-90
6. ECLASS2 number 23-05-11-90

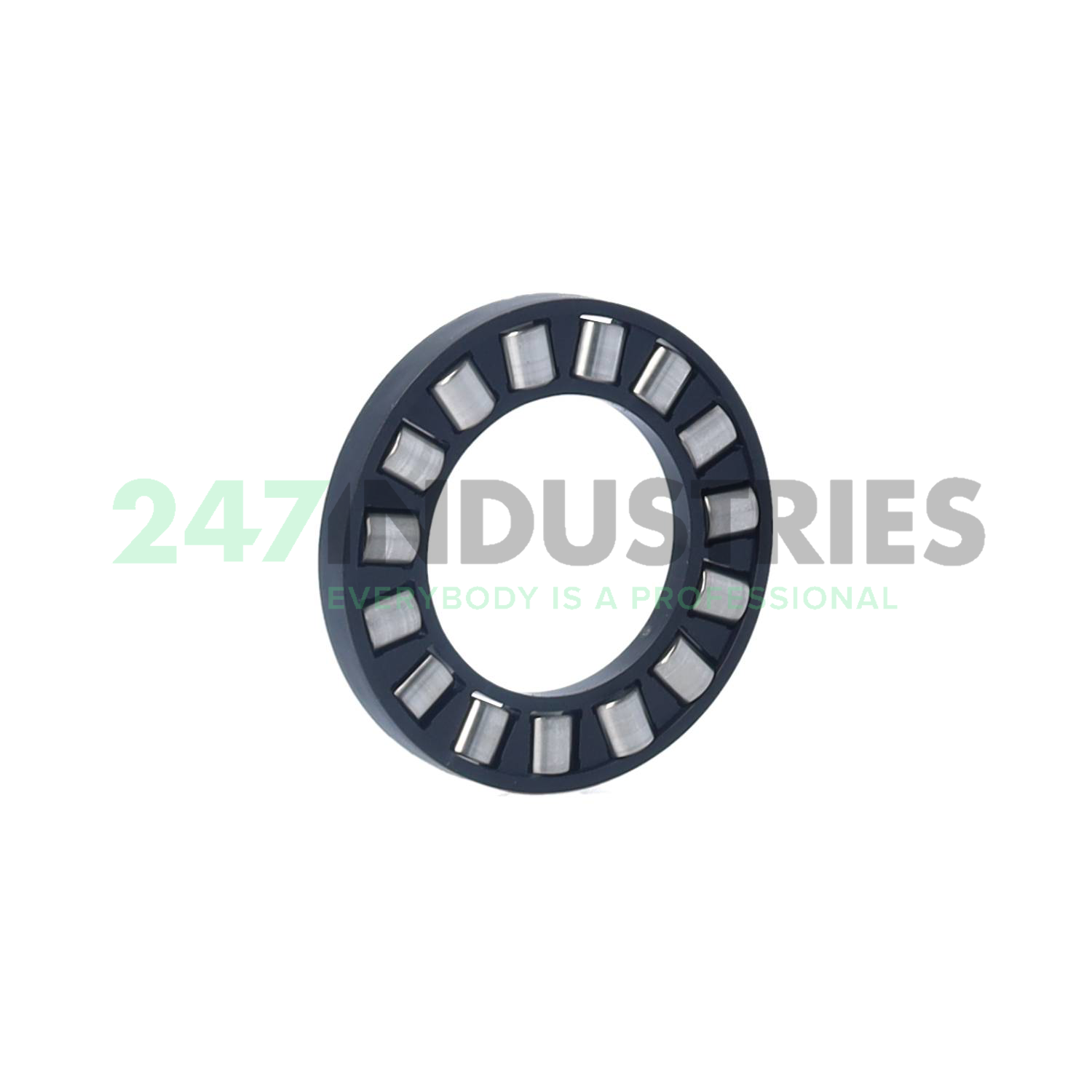

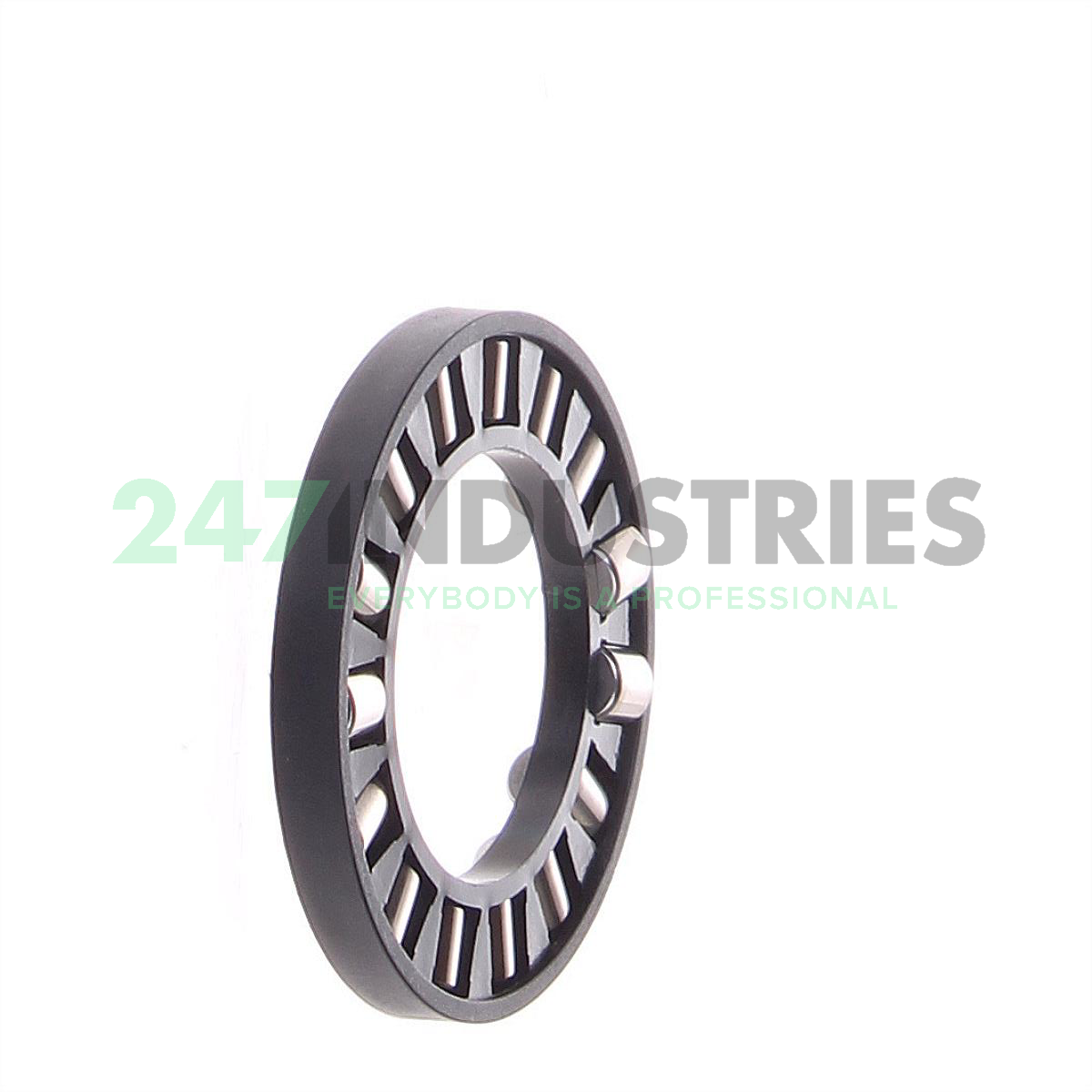

7. Medias omschrijving Axial cylindrical roller and cage assembly K811, single direction, suitable for combination with axial bearing washers
