K50X58X20-B/0-7 INA

Afmetingen

1. Binnenmaat (d) mm 50
2. Buitenmaat (D) mm 58
3. Breedte (B) mm 20
4. Binnenmaat (d) inch 1.9685
5. Buitenmaat (D) inch 2.2835
6. Breedte (B) inch 0.7874
7. Buitendiameter naaldlagercomplement (E w) mm 58
8. Breedte (B c) mm 20

Suffix-omschrijving

1. B The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. /0-7 Micron - Needle Sort

Technische specificaties

1. Beschikbaarheid 8 stuks op do 25 jun
2. Merk INA
3. Artikelnummer K50X58X20-B/0-7 INA
4. Ook bekend als 0006193536063

5. EAN 4012802694413
6. Categorie Naaldlager en toebehoren

Gewicht en afmetingen

1. Gewicht (kg) 0.065

Producteigenschappen

1. Afdichting Geen afdichting

Data van Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 62000
2. Radial Dynamic Load Rating Cr (N) 35500
3. Grenstoerental (n G) 9100
4. Referentiesnelheid (n ϑr) 5400
5. ECLASS number 23-05-09-04
6. ECLASS2 number 23-05-09-04

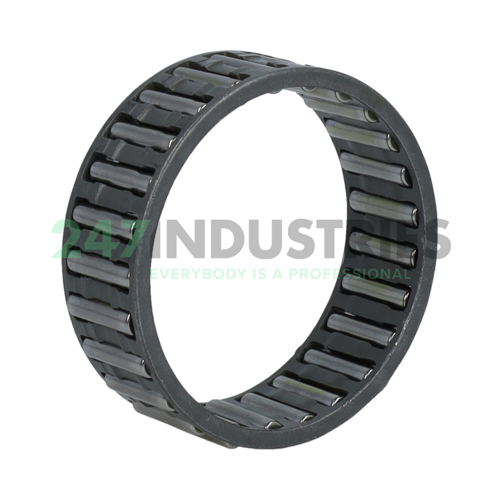

7. Medias omschrijving Needle roller cage assembly K, single row

Downloads en links

1. Download datasheet Download datasheet
2. Link to Manufacturer Link to Manufacturer
