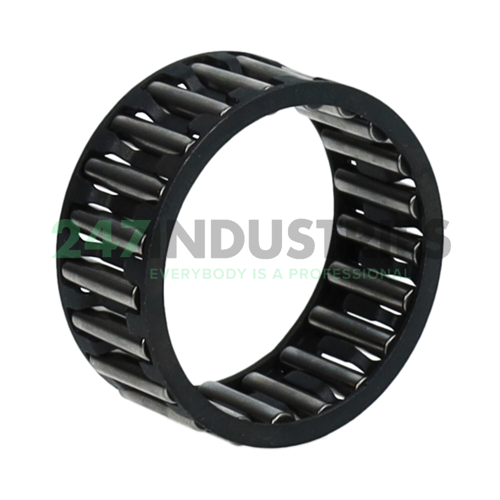

K25X30X13-A/0-7 INA

Afmetingen

1. Binnenmaat (d) mm 25
2. Buitenmaat (D) mm 30
3. Breedte (B) mm 13
4. Binnenmaat (d) inch 0.9843
5. Buitenmaat (D) inch 1.1811
6. Breedte (B) inch 0.5118
7. Buitendiameter naaldlagercomplement (E w) mm 30
8. Breedte (B c) mm 13

Suffix-omschrijving

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. /0-7 Micron - Needle Sort

Technische specificaties

1. Beschikbaarheid 0 stuks
2. Merk INA
3. Item number K25X30X13-A/0-7 INA
4. Also known as 0002798626063

5. EAN 4012802720723
6. Category Naaldlager en toebehoren

Gewicht en afmetingen

1. Gewicht (kg) 0.014

Producteigenschappen

1. Afdichting Geen afdichting

Data van Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 21800
2. Radial Dynamic Load Rating Cr (N) 14600
3. Grenstoerental (n G) 17800
4. Referentiesnelheid (n ϑr) 9800
5. ECLASS number 23-05-09-04
6. ECLASS2 number 23-05-09-04
7. Medias omschrijving Needle roller cage assembly K, single row
