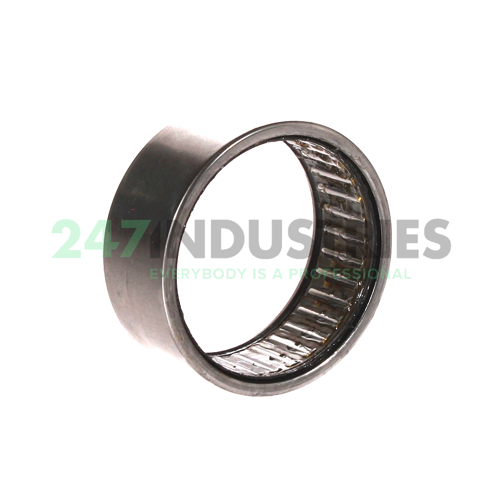

HK5024-2RS-AS1-A-L271 INA

Afmetingen

1. Binnenmaat (d) mm 50
2. Buitenmaat (D) mm 58
3. Breedte (B) mm 24
4. Binnenmaat (d) inch 1.9685
5. Buitenmaat (D) inch 2.2835
6. Breedte (B) inch 0.9449
7. Diameter onderrol (F w) mm 50

Suffix-omschrijving

1. 2RS Lip Seals On Both Sides
2. AS1 Needle Roller Bearing With Lubrication Hole(s) In The Outer Ring. A Figure Following The As Indicates The Number Of Holes
3. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
4. L271 Anti Wear Protection Grease

Technische specificaties

1. Beschikbaarheid 0 stuks
2. Merk INA
3. Artikelnummer HK5024-2RS-AS1-A-L271 INA
4. Ook bekend als 0013828880968

5. EAN 4054364527877
6. Categorie Naaldlager en toebehoren

Gewicht en afmetingen

1. Gewicht (kg) 0.086

Producteigenschappen

1. Afdichting 2RS - rubberen afdichting aan twee zijden

Data van Schaeffler (medias)

1. Basis statische radiale belasting (C 0r) 63000
2. Grenstoerental (n G) 3150
3. Toerentalgrens voor vet smering (n G Vet) 3150
4. ECLASS number 23-05-09-05
5. ECLASS2 number 23-05-09-05
